Palm Zire m150 Screen Replacement

Geschrieben von: Kate
  • Kommentare: 0
Palm Zire m150 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. H5Xq6JlFpmDApWbV
    H5Xq6JlFpmDApWbV
    wuoFCN1TQdaE4OUq

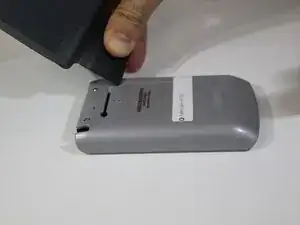

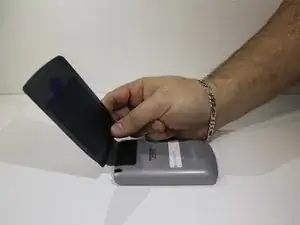

    • Lift the flap on the Palm Zire M150 to see the back and all of the screws.

  2. pWLraFpoRZNrJboa

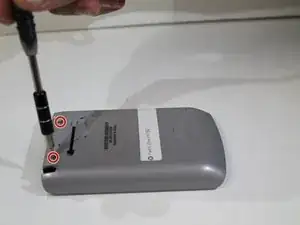

    • Use the T6 bit screw driver, and carefully remove the screws at the top of the device.

  3. NNvX6d3PRTfFDqKM

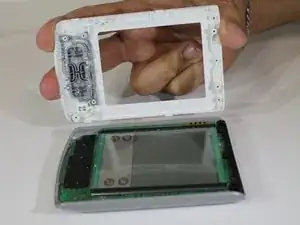

    • Turn the device over with the screen facing up. Gently pull the top and bottom cover from the device, as shown in the second photo.

  4. 21BerMaGMh222Aoh
    21BerMaGMh222Aoh
    nwoU3CbI3Ds3YQjW

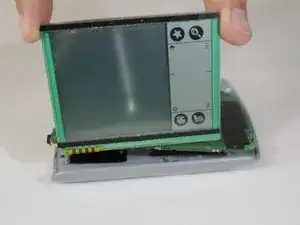

    • Carefully lift the screen from the device, and replace it with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
