Einleitung
Replacement parts can be hard to find. The case on the m105 can be easily removed, and a replacement shell casing can be used to replace your damaged one. Check out this site here to buy a replacement.
Werkzeuge
-
-

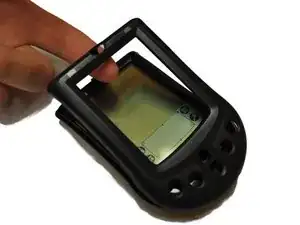

Remove the protective flip lid of the device. Open lid and pull. There are two clips that will pop out.
-
-
-

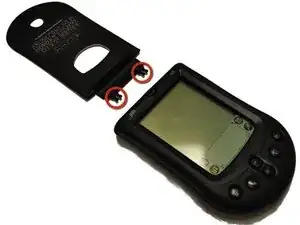

Next, remove the plate on the top of the device. There is a tab at the top that un- clips and allows you to remove the face plate.
-
-
-

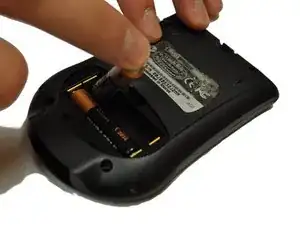

Remove the batteries by opening the battery compartment on the back of the device. Remove one battery at a time.
-
-
-

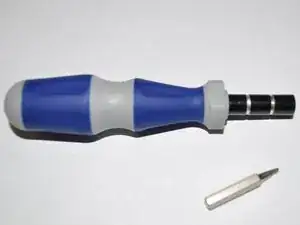

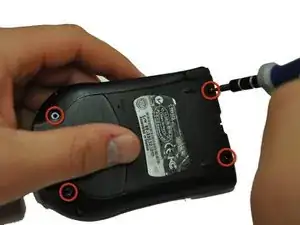

Using a T-5 Torx screwdriver, remove all four screws at the back of device by turning counterclockwise. Screwdriver located here.
-
-
-

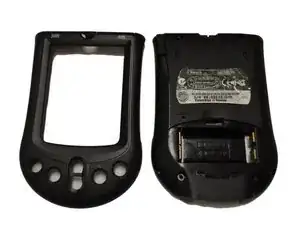

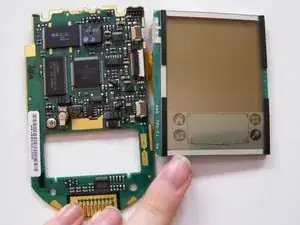

Once the four screws are removed, you are able to remove the back and front cover from the interior parts of the device.
-
-
-

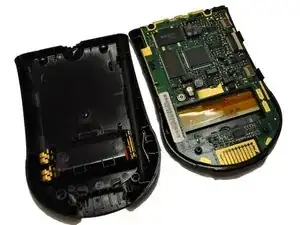

This is what the case of the device should look like when compleated.
-
You can purchase a new shell here: Replacement Shell Palm m105
-
To reassemble your device, follow these instructions in reverse order.
