Einleitung

Before you begin disassembly, be sure to have the necessary tool. You will need a Torx size T6 screwdriver. You will be removing the stylus in order to take off the back panel.

  1. NOoTe6QEfLDMsiEG
    • Remove the stylus from the side of the PDA by sliding it upwards.

  2. NmWQtiF3WEqDNQQT
    NmWQtiF3WEqDNQQT
    yGGPWGAXeVtQ5MZC

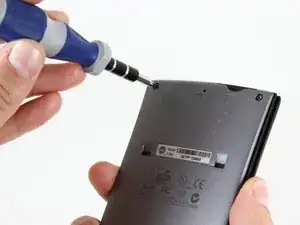

    • Remove the 4 screws from the corners of the back panel of the device using a size T6 Torx screwdriver.

    • Place screws in a plastic bag or another safe place.

  3. gOUyoAiZPnwbdPRR
    gOUyoAiZPnwbdPRR
    SNivEK2hGyByIi4L
    n2fluULSFB2XeJkM

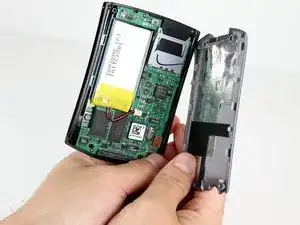

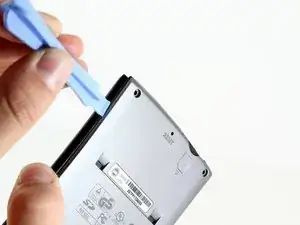

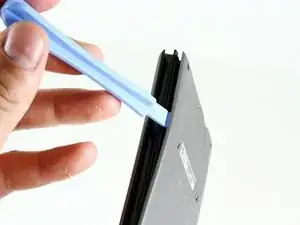

    • Insert the edge of the plastic opening tool between the back panel and the black stylus holder.

    • Carefully and forcefully pry the panels apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
