Einleitung
Before you begin disassembly, be sure to have the necessary tools. You will need a Torx size T6 screwdriver, tweezers, and the device opening tool. You will be removing the stylus, the back panel, the battery, the motherboard, and the LCD screen in order to access the button panel.
Werkzeuge
-
-
Remove the 4 screws from the corners of the back panel of the device using a size T6 Torx screwdriver.
-
-
-
Insert the edge of the plastic opening tool between the back panel and the black stylus holder.
-
Carefully and forcefully pry the panels apart.
-
-
-

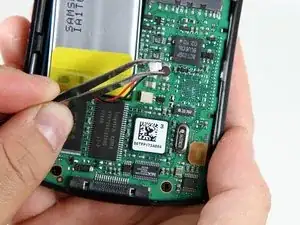

Use tweezers to unplug the battery cable from the motherboard socket.
-

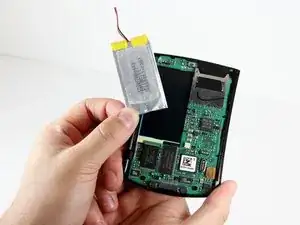

Gently remove the battery from the motherboard using your thumb and forefinger to pull upwards.
-
-
-

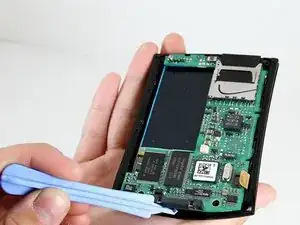

Use the plastic opening tool to pry the orange clamp away from the motherboard.
-
Use the plastic opening tool at the bottom of the device to pry the motherboard away from the front plate.
-

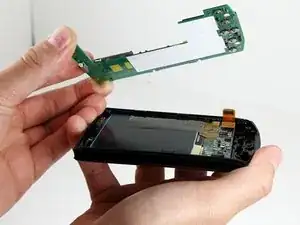

Gently and forcefully lift the motherboard away from the front plate by using your thumb and forefinger.
-
-
-

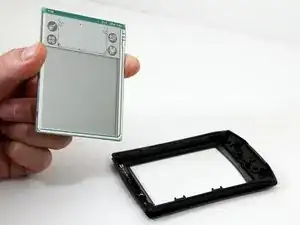

Pull the LCD screen up from the bottom of the device using your forefinger.
-
The LCD screen will easily come away from the front panel.
-
-
-

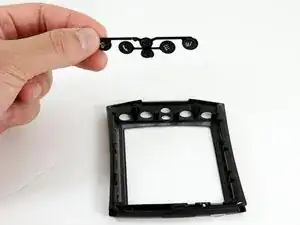

Gently remove the buttons from the front panel with your thumb and forefinger.
-
The buttons are not secured and should easily fall out.
-
To reassemble your device, follow these instructions in reverse order.
