There has been some worm under the outer shell but over the display, and so I disassembled it to clean it

  1. 1xee1njFMEZjaanE
    1xee1njFMEZjaanE
    bq1n5cXDMnDqkgHu
    RYqW6N2MTDfBDMVZ

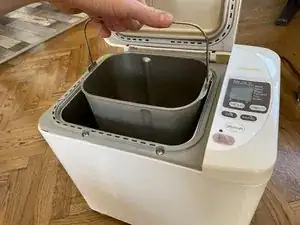

    • Make sure the machine is not under power and

    • remove the inner container

  2. t4QBKmrsTKPs4RYS
    t4QBKmrsTKPs4RYS
    ONNbTtN1rJNCBNm1
    vxkhv1N5UjHLqFS3

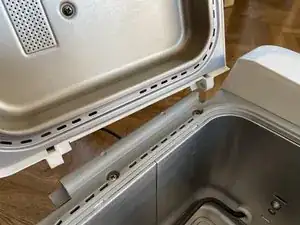

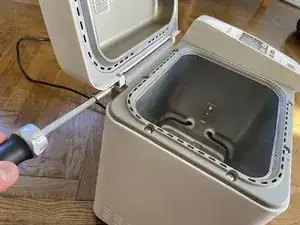

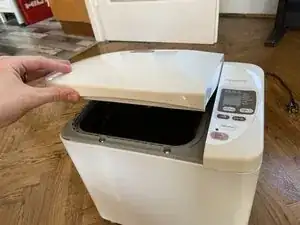

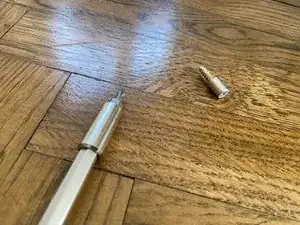

    • Remove the screw on the left side of the hinge of the lid (whith a philips 1 screwdrive)

    • After the screw is removed, you can move the lid (in open position) to the other side and slide it off the hinge (removing the lid completely)

  3. FkrpFVVI64LWLAJL
    FkrpFVVI64LWLAJL
    jWYJXUqKf6QECMn2
    rTGTmDGePWAD2ZZw

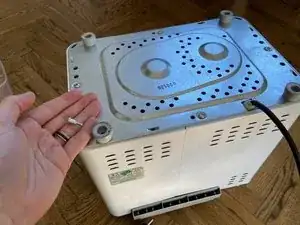

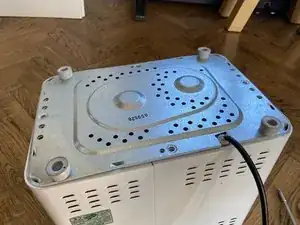

    • Turn the complete machine upside down

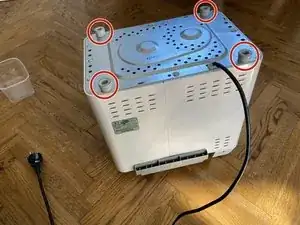

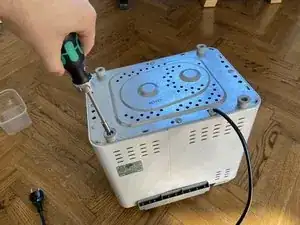

    • Remove the four (PH1) screws from the four rubber stands.

  4. yOyTFOkVdHBJrvLj
    yOyTFOkVdHBJrvLj
    ZIVyqC2X2tgFyCOP
    QchxZJAS61BapILW

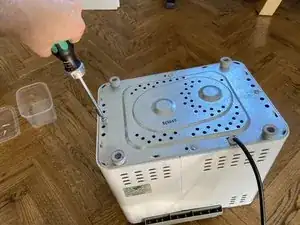

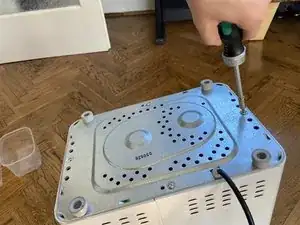

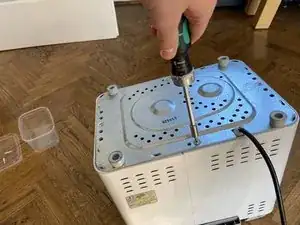

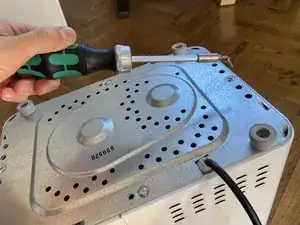

    • Remove the two normal screws from the shorter sides (normal PH1 screws)

  5. 5SM5xIjWkFNlRLxq
    5SM5xIjWkFNlRLxq
    HHTKFOJ52BEOqYVq
    cTnHquGB1tD1eoTZ

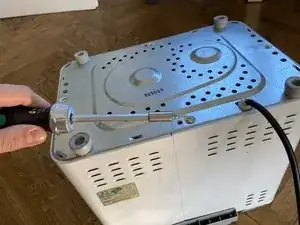

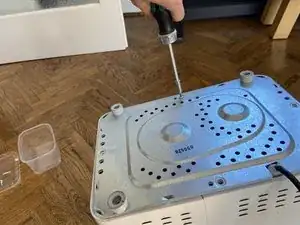

    • Remove the two torx screws from the longer sides (T20 S2)

  6. TflDDgexRDHHlBcX
    TflDDgexRDHHlBcX
    aFPvauX3EHnsMT6y
    3TZkxRoNcGMvTKNM

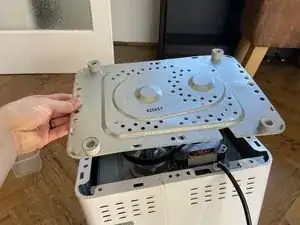

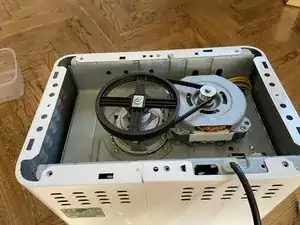

    • When all screws are removed from the bottom side, the metal cover can be simply lifted up, and the motor is visible

  7. EsmsGD4i2N5DVACQ
    EsmsGD4i2N5DVACQ
    eQG2siJkk6scGwhr
    mYjEB43WKxaEK3w1

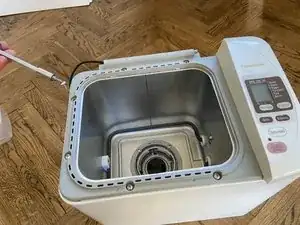

    • Turn the device back upwards

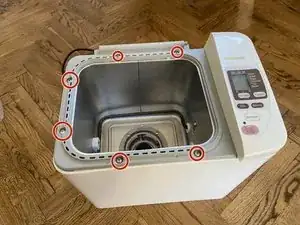

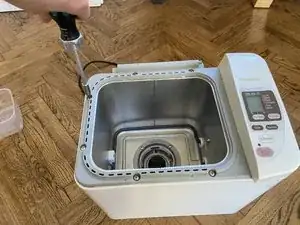

    • Remove the six (PH1) screws around the grey part (beneath the removed lid)

  8. S4Cxf3MvwhrNCCZR
    S4Cxf3MvwhrNCCZR
    2wuCfHdjkaNHdBIa
    TNviX3ZDiBJ4EYJr

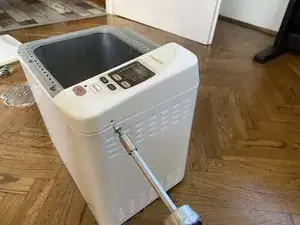

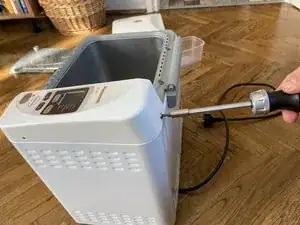

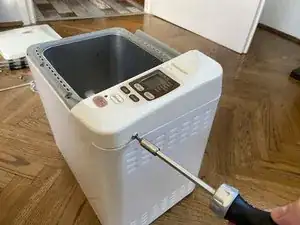

    • Remove the two (PH1) screws from the display panels side

    • one on the right side of the baker

    • one on the back of the backer

  9. VMhflxFn5gIeiOZC

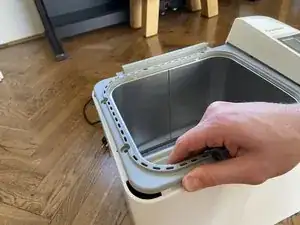

    • Try moving the metal chassis downward, holding the grey inner part, creating a tiny gap on the left side of the machine and loosening the inner part a bit

    • the right side loosens up a bit too

  10. nh2D2NwK6yMyS4cL
    nh2D2NwK6yMyS4cL
    SZHgHFTDUw2hL6fI

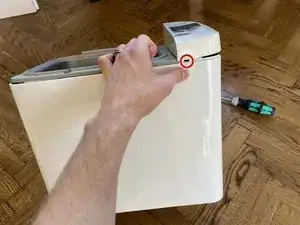

    • Push the metal chassis inwards, so that the plastic hook is moved out of the metal chassis

    • This may be the hardest part

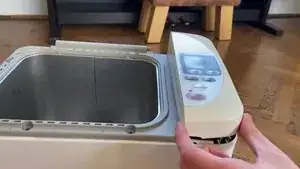

  11. After the front hook is moved out, the plastic display part can be turned to the right along the shorter side
    • After the front hook is moved out, the plastic display part can be turned to the right along the shorter side

    • Turn gently, because there is a cable connecting the display with the lower (inner) part

    • There is a hook on the right side too, which is unhooked durint the turning

  12. 1iCuaJLLAD6MAhOy
    1iCuaJLLAD6MAhOy
    EneE3jJGbKNi5FiY

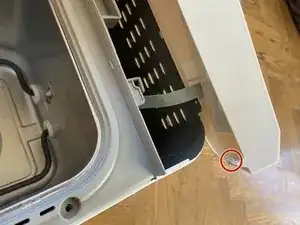

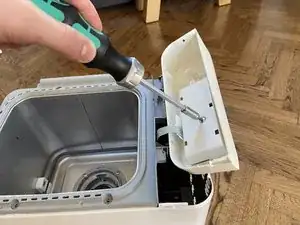

    • Remove the (PH1) screw from the bottom part (upper side after turning out) of the display

  13. SgvX1HbiXyLTGshN
    SgvX1HbiXyLTGshN
    3ksKTYar53vLKG1P

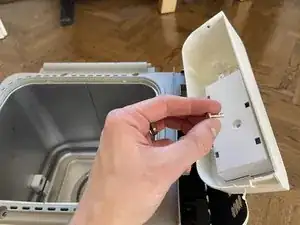

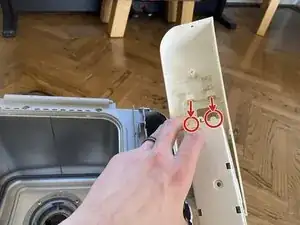

    • Tilt the display brick and move it towards yourself to release the hooks on the upper side of the brick

  14. jTplbgXAusFuQayU

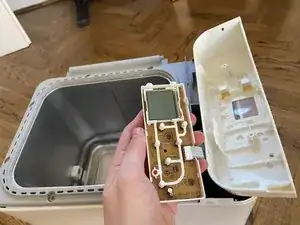

    • Finally, the inner display and buttons can be reached and cleaned

Abschluss

To reassemble your device, follow these instructions in reverse order.
