Panasonic Camera DMC-TZ3 LCD DISPLAY Replacement

Geschrieben von: Sales Cameraparts4you
  • Kommentare: 4
Panasonic Camera DMC-TZ3 LCD DISPLAY Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

Step by step guide for replacing your damaged LCD Display.

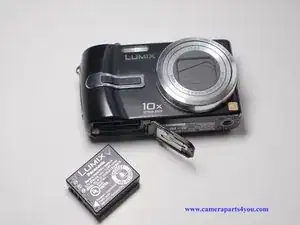

  1. 5TjowZ12irbZAbkt

    • Remove the battery and memory card from the device.

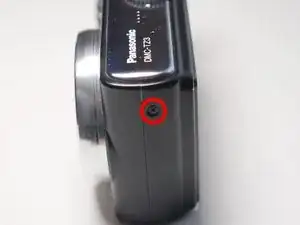

  2. JXuse4WBCJyNCMkL

    • Remove the single .5mm screw on the left side of the camera.

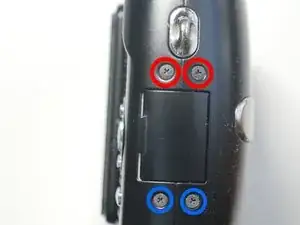

  3. Df1UKLM5stKteHCZ

    • Remove 4 (0.5mm) screws from the right side of the camera.

    • There are two screws at the top.

    • There are two screws at the bottom.

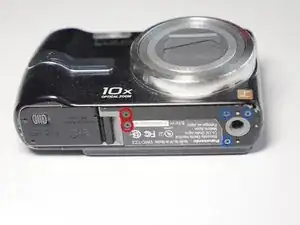

  4. HghNyc2sqo1TZvDN

    • Remove 5 screws from the base of the camera.

    • There are two (0.2mm) screws next to the battery compartment.

    • There are three (0.5mm) screws around the tripod base mount.

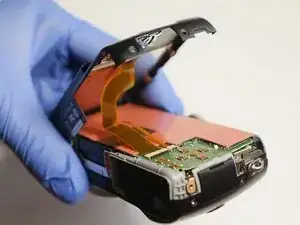

  5. keDCjXMccHTfBQmP

    • Slowly open the back cover away from the device

    • The wrist strap bar can easily be lost so now is a good time to remove it.

    • Use caution. The rear cover is attached to the Main PCB via cables. You will need to release these cables before removing the rear cover.

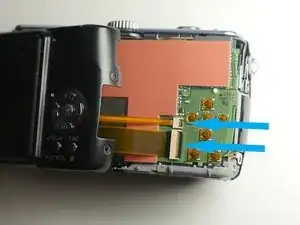

  6. k2VSJkpKCLu6GTTH
    k2VSJkpKCLu6GTTH

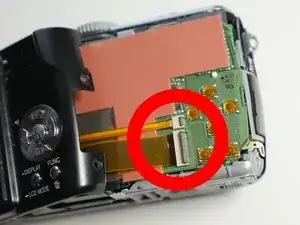

    fqVCQgiZZfMIvVCR

    • Detach both ribbon cables using a spudger or other method.

    • Lift the black clip upward, unlocking the ribbon cable

    • Once the clip is in the up position you can slide the cable out. Release cable by pulling the cable out.

    • DO NOT pull on the Back case to release the cable.

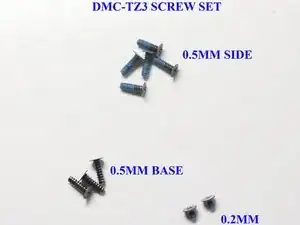

  7. AffsdHVr5WVdxH5y

    • Screw Arrangements

    • Make sure you organize your screws to make re-assembly easier.

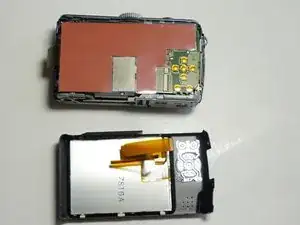

  8. xrE4wLUFxGxjgM1B

    • Remove the back casing from the camera.

  9. FxKWWnEAEZeEQcLQ
    FxKWWnEAEZeEQcLQ
    lJDNqBSTVH5JJNs1

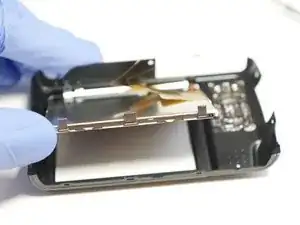

    CKql1RLVWlWfPL3T

    • Use a spudger or other tool to release the 3 clips between the LCD case and housing.

    • Note: when re-assembly all 3 clips need to be seated in the grooves as shown in the 2nd picture.

    • Lift LCD out as shown in 3rd picture

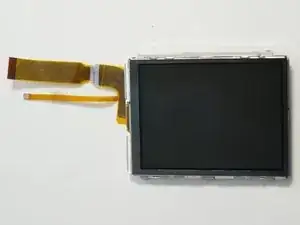

  10. oVdgfOu2LwTROaLx

    Very well presented and helpful - thank you.

    I can’t be sure but think the screws are more likely to be JIS than Philips.

    I need the replacement display with backlight and have so far been unable to find one.

    George Winspur -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sales Cameraparts4you

Mitglied seit: 01/07/16

3072 Reputation

3 Kommentare

Very well presented and helpful - thank you.

It sems important to use the correct screwdriver and my impression is that the screws are JIS rather than Philips.

So far I have been unable to locate a replacement screen with back light (I assume the back light is connected by the narrower ribbon cable).

George Winspur -

I  Like my Panasonic  DMC-TZ3  , paid 300 way back in 2007  and has flawlessly  perfect, till I Dropped it in the case  …

IT still take pictures,  store on Memory, etc  all functions work , and can down load to computer ..

BUT the Back LCD  I can barely see unless I put a LIGHT to it ….

SO I assume I screwed the Back Light,  … can anybody help ?

Gary Trembley -

Hi…. the backlite cable might have come loose or damaged. I would disassembly the unit and re-insert the backlite cable to see if that does the trick.. Otherwise you would have to invest in a new Display ASSY or backlite. A used backlite or Display assy is not that expensive and easy to replace..

Sales Cameraparts4you -
