Panasonic Compact Shaver ES4815 Motor Replacement

Geschrieben von: muhammad samsulsham
  • Kommentare: 0
Panasonic Compact Shaver ES4815 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

Is your shaver not working even when its batteries have been replaced? if so, here is the guide to fix the problem by replacing the motor. All you need is a standard Phillips Screwdriver to remove two screws during the replacement.

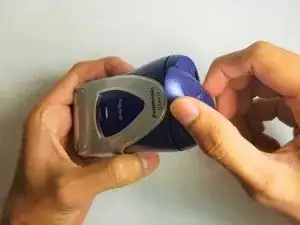

  1. nkQt1GIOKY3bUTS1
    nkQt1GIOKY3bUTS1
    pHCpXKprHaZetUf6
    Y2YnSHKCAUXUEuyx

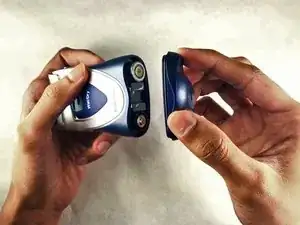

    • Twist the release cap to expose the batteries.

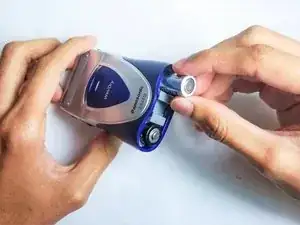

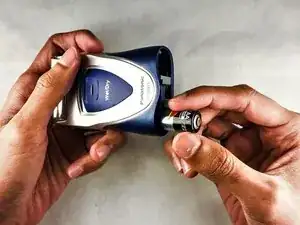

  2. J5CjWuEdajHQCnHC
    J5CjWuEdajHQCnHC
    2McXxfxTkF4viZHn

    • Remove the batteries.

  3. smyaBIiVZif2SHnM
    smyaBIiVZif2SHnM
    Q626xEEf4aVtAbvU
    5B1hMJDj3YC1FFJF

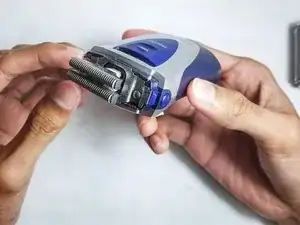

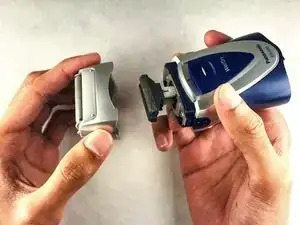

    • Remove the razor guard by pushing its release buttons and pulling.

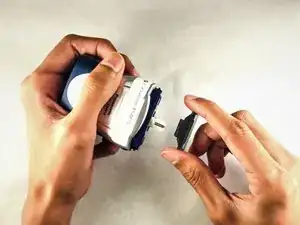

  4. kIiOLLGIVpMSHRBq
    kIiOLLGIVpMSHRBq
    O3aoPBkyvrtXLIaR
    wUU3TRZVVLPdwmtS

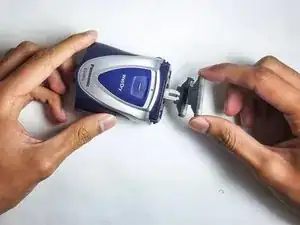

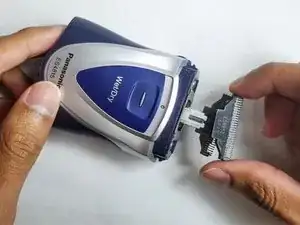

    • Carefully pull out the inner blades.

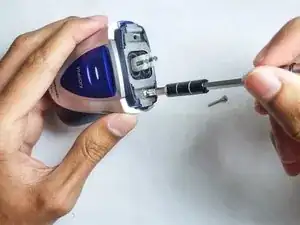

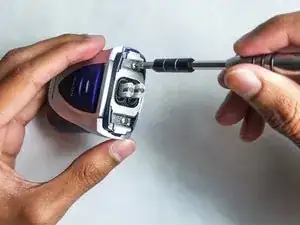

  5. IXTKKRTQXAxVnF5A
    IXTKKRTQXAxVnF5A
    ZFbhZEyEarAZVZ1j
    F1vatLsZtPPI3WCu

    • Remove the two 1.9mm Phillips #0 screws from the inner blades.

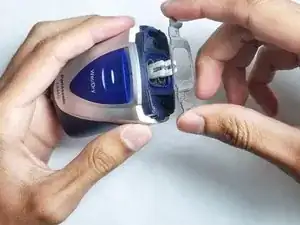

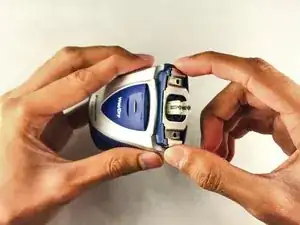

  6. XAugMlXNgGOEpgqD
    XAugMlXNgGOEpgqD
    4FKpVqtfTqTVRONt

    • Remove the metal plate.

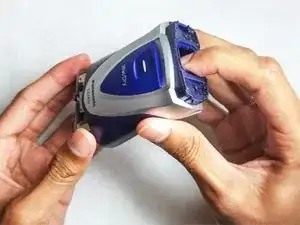

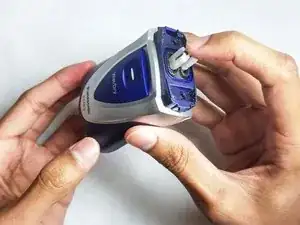

  7. qlqBee3GMwVCufUd
    qlqBee3GMwVCufUd
    CLWPhxPJ3jYBfRpB
    QQOpibNb1SVFsPBZ

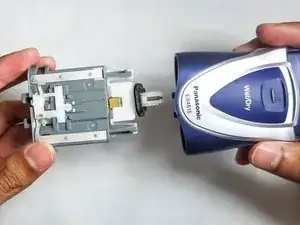

    • Pull the outer casing with one hand while holding the inner battery casing with the other hand.

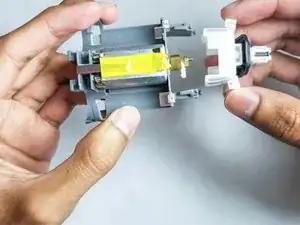

  8. x2WRNb5NPA6BqNjW
    x2WRNb5NPA6BqNjW
    yyUSbVBv4pDDyX3d

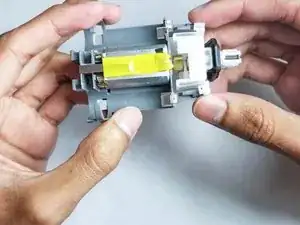

    • Detach the white plastic blade base from the tip of the motor by pulling it.

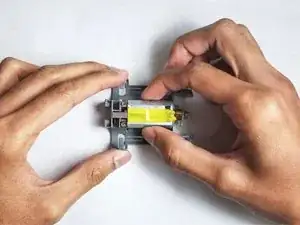

  9. uYtX3TYkHNhrltoJ
    uYtX3TYkHNhrltoJ
    oTyP2ojhUR1nwxaW

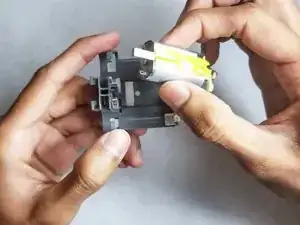

    • Detach motor from gray plastic holder by pulling it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
