Einleitung

Prerequisite Only

This guide will show you how to remove the back panel of the camera so that you can access the inside.

Before you begin, make sure that the battery and SD card have been removed from the camera.

  1. pkPLVicQbX3ivMyq
    pkPLVicQbX3ivMyq
    OJ3tew1pgYFhX3r6
    • All screws should be removed using a Phillips #0 screwdriver.

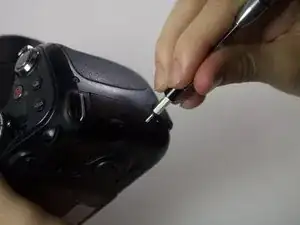

    • Using your screwdriver, unscrew the two 5.0 mm Philips screws to the right of the LCD screen.

  2. ROppnW5Hv62rhsaM
    ROppnW5Hv62rhsaM
    S6yULCRePCkUcKnS

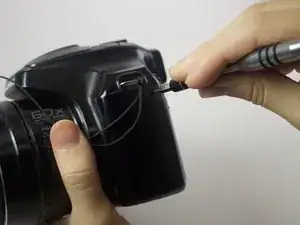

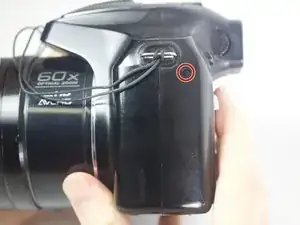

    • Flip the camera over to the left side of the screen and unscrew the 5mm Phillips screw found there.

  3. qZvKSIksXIgr22ql
    qZvKSIksXIgr22ql
    6omNZ3LTfptuRSW6

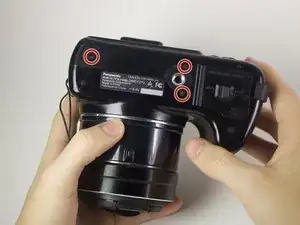

    • Turn the camera upside down and unscrew the three 5mm screws found on the bottom.

  4. gjICqiPGSjHYqNZC
    gjICqiPGSjHYqNZC
    5LA66vOnhjyHIXwd

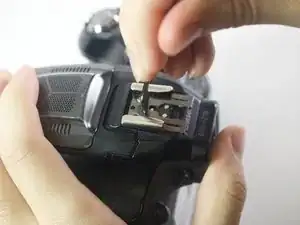

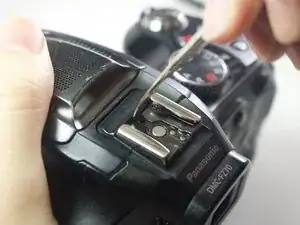

    • On the top of the camera locate the two rails with a thin sheet of metal on the floor between them.

    • With a metal spudger, lift this sheet and push it out of the rail device to detach it from the camera.

  5. RWVRwBHXxsXZyRo3

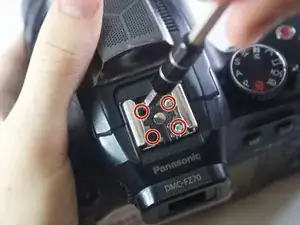

    • Proceed to remove the four 5mm Phillips screws that you just uncovered.

  6. Xgdqnb1NipxwUJK2

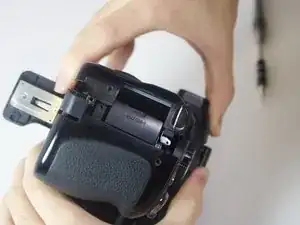

    • Slowly pull on both side of the camera, until both halves begin to separate from each other.

    • Do not pull too hard, as both halves are held together with ZIF connector cables.

  7. MVqlOq322GG2JeqW
    MVqlOq322GG2JeqW
    BJJMdG2rhVFYSTOF
    eU6DiUetcYt4d2Rl

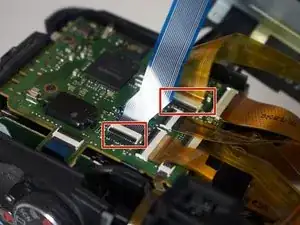

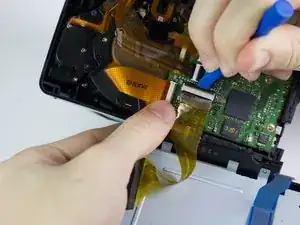

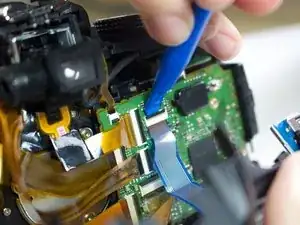

    • Using a plastic opening tool, carefully flip up the small black levers that attach the ribbon cables to the ZIF connectors on the motherboard.

    • Carefully pull the ribbon cables out of the slot once they have been released.

    • Only the two indicated connectors need to be removed to separate the two halves of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
