Einleitung

The Operations Unit is a panel of top of the camera that contains the mode dial, power switch, shutter button, and video-record button. If any of these buttons are missing, jammed, or no longer working, you can use this guide to learn how to replace the unit. Before you begin, make sure that the battery and SD card have been removed.

  1. pkPLVicQbX3ivMyq
    pkPLVicQbX3ivMyq
    OJ3tew1pgYFhX3r6
    • All screws should be removed using a Phillips #0 screwdriver.

    • Using your screwdriver, unscrew the two 5.0 mm Philips screws to the right of the LCD screen.

  2. ROppnW5Hv62rhsaM
    ROppnW5Hv62rhsaM
    S6yULCRePCkUcKnS
    • Flip the camera over to the left side of the screen and unscrew the 5mm Phillips screw found there.

  3. qZvKSIksXIgr22ql
    qZvKSIksXIgr22ql
    6omNZ3LTfptuRSW6
    • Turn the camera upside down and unscrew the three 5mm screws found on the bottom.

  4. gjICqiPGSjHYqNZC
    gjICqiPGSjHYqNZC
    5LA66vOnhjyHIXwd
    • On the top of the camera locate the two rails with a thin sheet of metal on the floor between them.

    • With a metal spudger, lift this sheet and push it out of the rail device to detach it from the camera.

  5. RWVRwBHXxsXZyRo3
    • Proceed to remove the four 5mm Phillips screws that you just uncovered.

  6. Xgdqnb1NipxwUJK2
    • Slowly pull on both side of the camera, until both halves begin to separate from each other.

    • Do not pull too hard, as both halves are held together with ZIF connector cables.

  7. MVqlOq322GG2JeqW
    MVqlOq322GG2JeqW
    BJJMdG2rhVFYSTOF
    eU6DiUetcYt4d2Rl
    • Using a plastic opening tool, carefully flip up the small black levers that attach the ribbon cables to the ZIF connectors on the motherboard.

    • Carefully pull the ribbon cables out of the slot once they have been released.

    • Only the two indicated connectors need to be removed to separate the two halves of the camera.

  8. ZiebQ6rtgHlQRxjK
    • Using a Torx driver, unscrew the two 5mm Phillipd screws on the motherboard

  9. e4VdbDoVWHVYBun2
    e4VdbDoVWHVYBun2
    PJlZFlbK2VEbYWYW
    MNS2frSxAIodOCKD

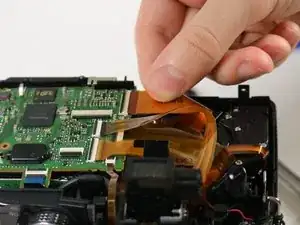

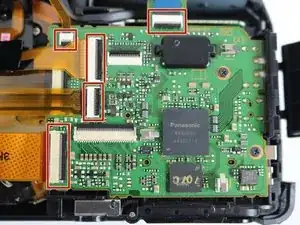

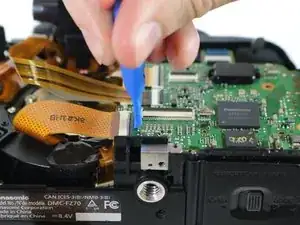

    • The five ribbon cables shown will need to be removed from the ZIF connectors. Using a plastic opening tool, unlock the cables by lifting the black strip on the rectangular connection socket.

    • Carefully pull each of the ribbon cables out of their sockets.

    • The cable should slide out smoothly- any significant resistance might signal that the locking lever has not yet released the cable.

  10. aHBpfRVhyEIlBoTm
    aHBpfRVhyEIlBoTm
    wxIVfLZIfbCG12MW

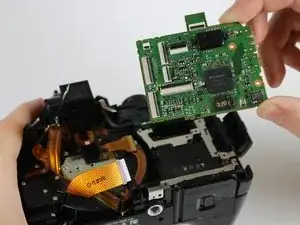

    • Once the screws and the ribbon cables have been removed, lift the mother board from its slot.

  11. sJhPpdEmsfY2QL6v
    sJhPpdEmsfY2QL6v
    6wIBN2cuPrgUS6CU

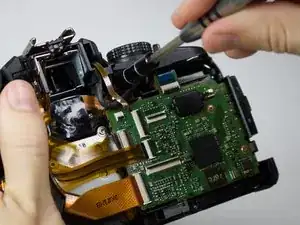

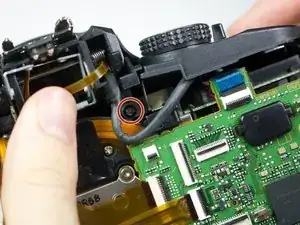

    • Unscrew one 10mm Phillips screw to the right and underneath the viewfinder.

  12. vmZuPlkxtrRDHMUN

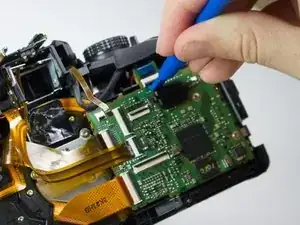

    • Using a plastic opening tool, flip up the switch on the ZIF connector underneath the operations unit and pull the ribbon out of the motherboard.

  13. sTyvGKLXIZs1rWVc
    sTyvGKLXIZs1rWVc
    s4POj1AnMvO2ag5g
    TSgfWwHCrsQw6sRO

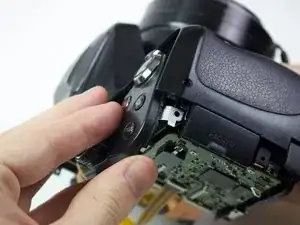

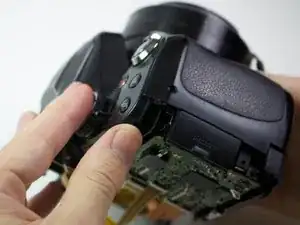

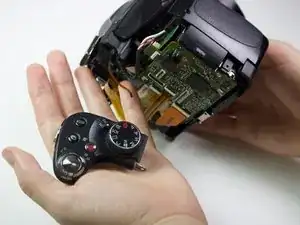

    • Slide out and replace the operation unit.

    At step 9 removing four of the five ribbon cables is not necessary.

    Motherboard needs to be slightly lifted just to insert the Operation Unit ribbon cable easily.

    Vangelis Skarmoutsos -

Abschluss

To reassemble your device, follow these instructions in reverse order.
