Einleitung

If the wireless features of your device are malfunctioning, replacing the WiFi board may resolve the issue. Follow this guide to learn how to remove and replace the WiFi board.

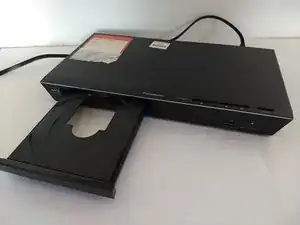

  1. IXg3soIjFNkXYKp1
    IXg3soIjFNkXYKp1
    GsiajmIK6CCqXhoV
    • First, before powering off, press the eject button to open the tray.

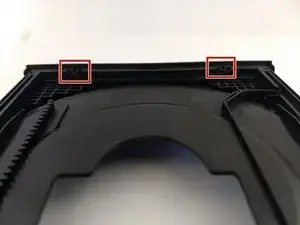

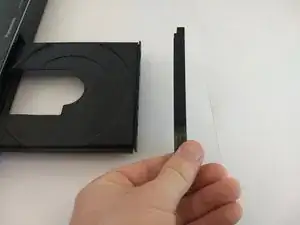

  2. XJLVZDZoCB6PWjly
    XJLVZDZoCB6PWjly
    ZVt1SlOdyixxHwPK
    WrdAPh3JNhAZf1Rc

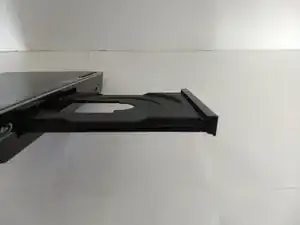

    • Remove the front cover of the tray.

    • Do so by gently pushing it out, away from the player, ensuring the pictured tabs clear the tray.

    • Then slide it vertically up and away.

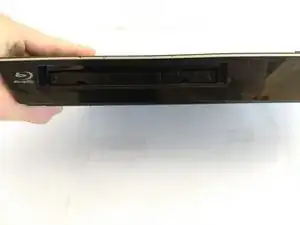

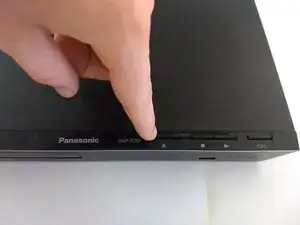

  3. 13fQjtLq32bZHGXp
    13fQjtLq32bZHGXp
    3VxBvMiIdAMDcGws
    • Press eject button to close the tray.

    • Make sure to unpower and unplug device before continue work on other fixes.

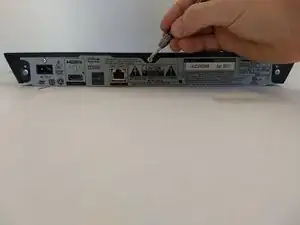

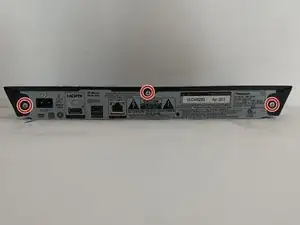

  4. wBoIZXlmP4C3lhId
    wBoIZXlmP4C3lhId
    2MIKrhr2WZNK4I6e
    • Using a Phillips #1 screwdriver, unscrew the back three screws.

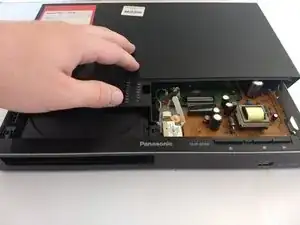

  5. WvpOVwDmayPKRNkh
    • Slide the top panel horizontally to remove it.

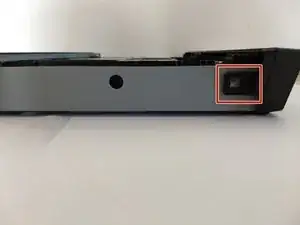

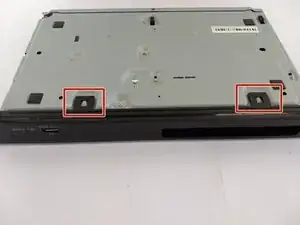

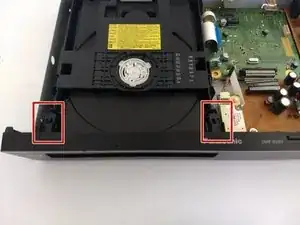

  6. vktoSGFOkZGGKgLw
    vktoSGFOkZGGKgLw
    bsYf1Q4IKok4xRMe
    2EpZpsM24F3UVQYr
    • Locate 6 tabs across the device.

    • 2 are on the bottom, 1 is on the left and right, and 2 are are on the inside.

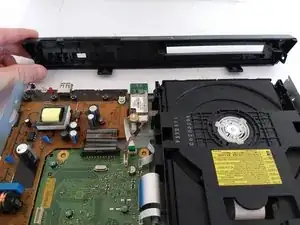

  7. 4JJeH6ISFWabtrYF
    • Pop the 6 markers out.

    • Then take off the cover.

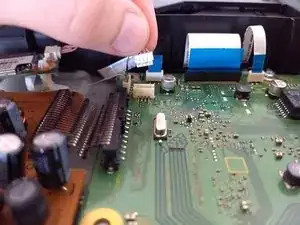

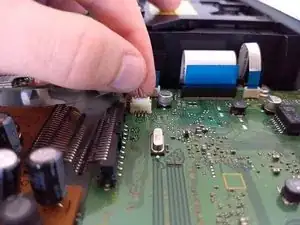

  8. TBcZCwTuGLbAUAEx
    TBcZCwTuGLbAUAEx
    pdINKWGqhLTaaZcR
    • Locate reddish brown cable. Detach from green circuit board by pulling upward.

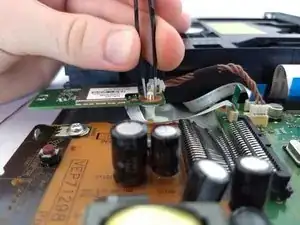

  9. ANNN2yXdVLSkXfif
    • Using tweezer, compress the white knob holding the wifi module board in place.

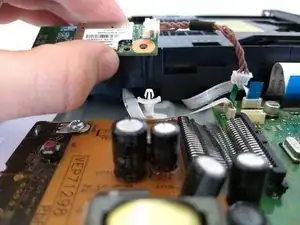

  10. AgHLiXJlvFbnnJKP
    AgHLiXJlvFbnnJKP
    oaEwGKoWWlvZD1VY

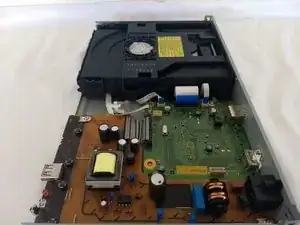

    • Pull the module board straight up, removing completely. The second photo is how your device should look with the WiFi board removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
