Panasonic ER430K Battery Replacement

Geschrieben von: Dileep Balaji
  • Kommentare: 1
Panasonic ER430K Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

30 Sekunden

Einleitung

Upon purchase of the trimmer, battery would not be included. Therefore this guide would be of help to replace the battery into the trimmer.

  1. vFIXHWg2kjfgWIJt
    vFIXHWg2kjfgWIJt
    J4aGNuFYgexF2uGs

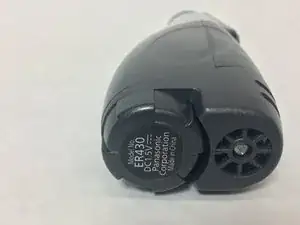

    • Remove the battery cover by rotating it counter -clockwise and lifting it off.

    • Tilt the trimmer to the bottom, you will notice the battery housing.

  2. GCUhgHcLQFL3HxZI

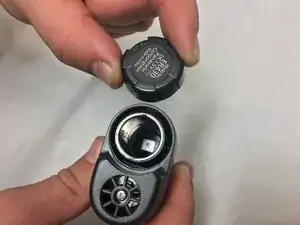

    • Insert the AA Battery according to the terminals on the Battery housing.

    • Note the '+' side in the the housing and the '-' side on the cover.

  3. 4xWTKg2BEnj25PGW

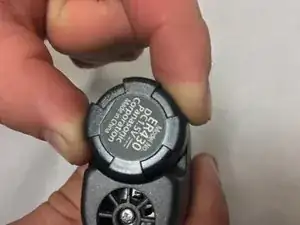

    • Twist the battery cover housing in a clockwise direction to secure the the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Dileep Balaji

Mitglied seit: 26/09/15

276 Reputation

Ein Kommentar

Battery + side goes in first (when battery is inserted correctly, the - side will be facing you).
