Panasonic ER430K Blade Replacement

Geschrieben von: Kyle
  • Kommentare: 0
Panasonic ER430K Blade Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

45 Sekunden

Einleitung

This guide will help to assist in replacement of the trimmer blade.

  1. 1u5chTAsBULhSgkV

    • Remove the protective cap.

  2. vtymsRTKirJX3spl

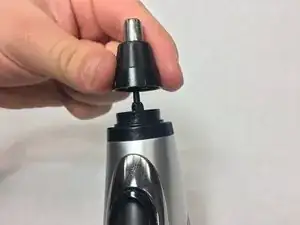

    • Rotate the blade block counter-clockwise and remove.

  3. MZVtOnPs5uFY2lJK

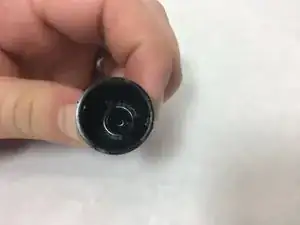

    • Turn blade block over, blade will be inside.

  4. 5x3Nou1JPwTiSvpr

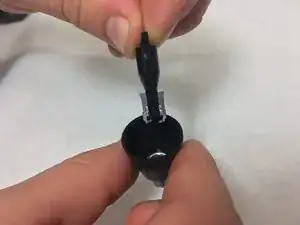

    • Remove old blade from blade block and insert new blade.

    • Be careful blade is sharp even when broke or dull.

Abschluss

To reassemble your device, follow these instructions in reverse order.
