Panasonic HDC-TM90 Lens Clean

Geschrieben von: Tyler Jaynes
  • Kommentare: 1
Panasonic HDC-TM90 Lens Clean

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

15 - 35 Minuten

Einleitung

This guide will show how to disassemble the camcorder in order to reach behind the lens and clean it.

  1. CKQ4tcH1fZbjDFRT

    • Open the LCD screen.

  2. hNNpnOtBxQ41BrMJ

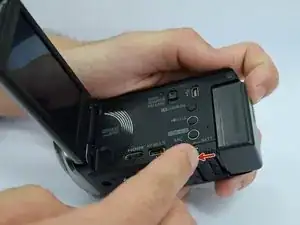

    • Slide the battery release switch away from the battery.

  3. KMKoyDf1IVSJeJbU

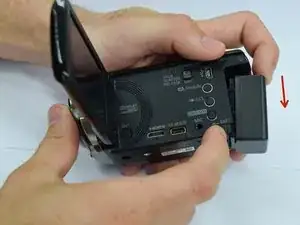

    • While holding the switch away from the battery, push the battery out of the slot.

  4. XSLKJDRhUNtVBhbZ

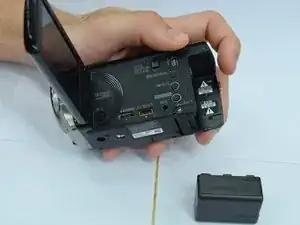

    • Remove the battery from the camera.

  5. CqoNVCGv5UYGGcFs
    CqoNVCGv5UYGGcFs
    6HCddGh6NqAwIWkw
    PeWaBlxLFBXeHSF5

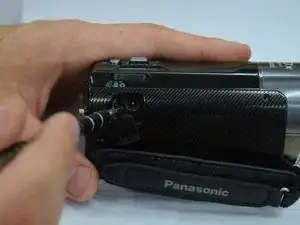

    • Remove 5 screws from the side panel body of the camcorder.

    • Use the spudger to remove the top of the camcorder.

  6. bLlmZK2mjHWQURMu
    bLlmZK2mjHWQURMu
    cGUFusQHYHTYcINr

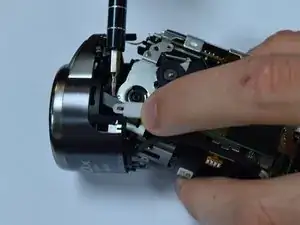

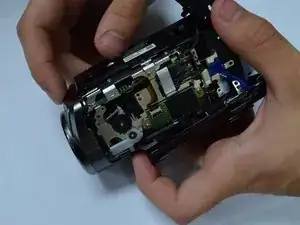

    • Unscrew three screws to remove the lens rim on the front of the camcorder.

    • Be aware of the wires attaching the lens rim to the body of the camcorder. You will not be able to separate the lens rim completely.

    • Use caution when separating the shutter lever.

  7. rawMMrYa234LnKK6

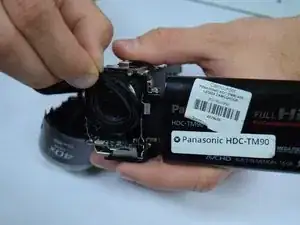

    • Remove the rubber ring around the lens.

  8. fy5fsBfmTuO3WgGl

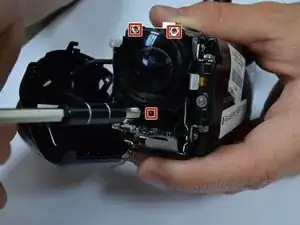

    • Unscrew the lens by removing the three screws connected to it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
