Einleitung
Once the back cover has been removed, removing the antenna is as simple as unscrewing one screw.
Werkzeuge
-
-

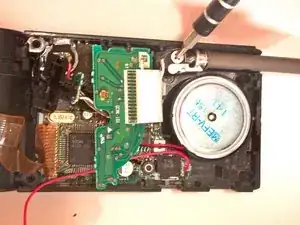

Orient the phone so that the phone model and other descriptive information is facing upward.
-
Locate the two silver screws near the hinge where the battery is housed.
-
Remove the silver screws using a Phillips head #2 screwdriver.
-
-
-

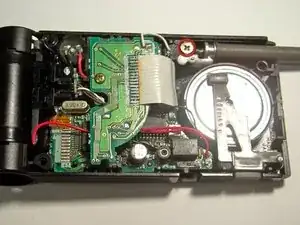

Find the silver screw located in the red circle.
-

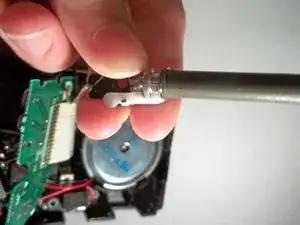

Using a Philips head #2 screwdriver, remove the screw holding the antenna in place.
-
-
-

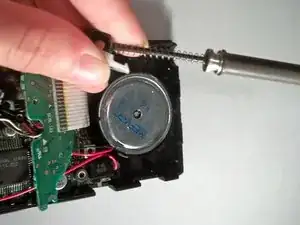

Press the release button.
-
The release button is located in the red circle in the image to the left.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
