Panasonic KX-TG6021M Back Speaker Replacement

Geschrieben von: Leah Meador
  • Kommentare: 0
Panasonic KX-TG6021M Back Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

30 - 40 Minuten

Einleitung

  1. iSsabMfm4rdhwOol
    iSsabMfm4rdhwOol
    FFjFmLR6Q1jcSVZB

    • Slide the back cover down towards the bottom of the phone to remove.

  2. JNH14LXHNgBEBJ4q
    JNH14LXHNgBEBJ4q
    Yj41c33PSheXrHax
    mn2mYXttOTh6YShh

    • Pull the top of the battery towards you to remove it from the phone.

  3. uJqAUKVSQoZXyMfW
    uJqAUKVSQoZXyMfW
    tTrpCL4fsouifhUi

    • Unscrew the two screws located at the bottom of the phone.

    • Use a PH00 Phillips head to remove the 9 mm screws.

  4. UfnSFeWLnUPbRnN5
    UfnSFeWLnUPbRnN5
    KNpaOBUefmaMXYSi
    DMRZkUeQv6OEJOJN

    • Separate the back cover from the front cover by using a wedge.

    • Remove the back cover from the front cover by pulling them apart.

  5. aRTFXeYJVDuHxIHF

    • Remove three screws on the motherboard.

    • Pull the phone face off of the motherboard.

  6. 1BNRlEWnqnXASRv6

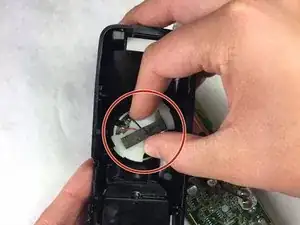

    • Twist the back speaker and pull straight out to remove it from the case.

    • To completely remove the speaker from the motherboard, you will need to desolder the speaker cables.

Abschluss

To reassemble your device, follow these instructions in reverse order.
