Panasonic KX-TG6641 Handset Display Screen Replacement

Geschrieben von: Joseph Byrne
  • Kommentare: 1
Panasonic KX-TG6641 Handset Display Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

35 Minuten

Einleitung

Use this guide to correctly replace the display screen on one of the handsets for your Panasonic phone. Display screens may become cracked or dysfunctional due to normal wear or accidents. By replacing the display, users will be able to operate features such as caller ID more easily.

  1. ejeBIuIsMsXUCSeL
    ejeBIuIsMsXUCSeL
    e1rL3sqVfDyMddCd

    • Remove the battery cover by sliding the cover piece down

  2. 6ECqQ2lFOswWKnmk
    6ECqQ2lFOswWKnmk
    XVj4pHwaJoskGgfb

    • Remove the two AAA batteries.

  3. pmcEOy24fRKtiHoT

    • In order to remove the back of the phone, unscrew the two screws at the bottom corners on the back of the phone.

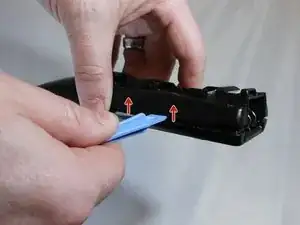

  4. 5HRQCDPQDaGuIKBe
    5HRQCDPQDaGuIKBe
    C2QPNTPDUwVHXC4V

    • In order to remove the back of the phone, pry the back open by inserting the iFixit Opening tool in the space between the front and back of the phone.

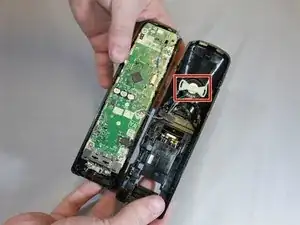

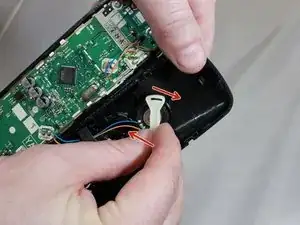

  5. GICZvgGXlwwbqNmF
    GICZvgGXlwwbqNmF
    vws1gZGm5ltU66kJ

    • Remove the earpiece cover by twisting the plastic earpiece clockwise to unlock.

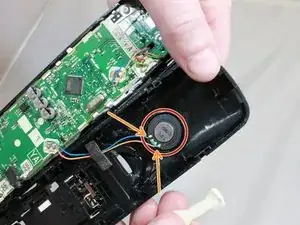

  6. WwVOG3ct3JXD1Qak

    • Replace earpiece by heating wires with soldering iron.

    • Solder wires back to earpiece after installing the replacement earpiece.

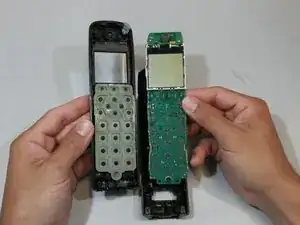

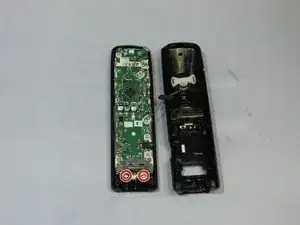

  7. GAArRKwpOmcpJ422
    GAArRKwpOmcpJ422
    cVxD6pDfvG2XxJxQ

    • Unscrew two screws at the bottom of the motherboard in order to remove.

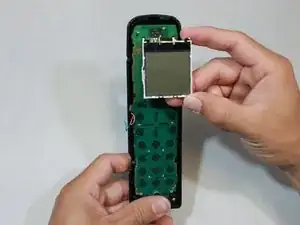

  8. 21LpImXsIAvLFYjU

    • Unhinge display screen from the motherboard and replace with the new screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
