Panasonic KX-TGA410C Keypad Replacement

Geschrieben von: Mumtaaz Mohamoud
  • Kommentare: 0
Panasonic KX-TGA410C Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

If your Panasonic KX-TGA410C handset’s keypad is not working as intended, or worn out and the numbers are no longer visible, use this guide to replace the button pad.

  1. hdNt5WEqq3PD4Fej
    hdNt5WEqq3PD4Fej
    gduwdeYbS2Ok5kwQ
    fl2dTijeOKu5rSxA

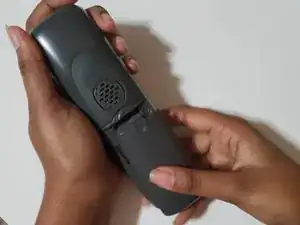

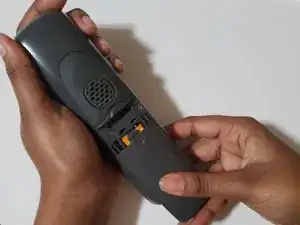

    • Slide the battery cover in a downwards motion to uncover the batteries.

    • Use the indentation on the case.

  2. BUN2fPV3yILvdwXM

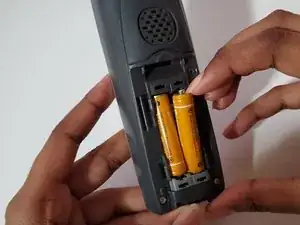

    • Remove the batteries by pulling them forward.

  3. JvYG6WPqDB4TXIfA
    JvYG6WPqDB4TXIfA
    jMdKXuJcojAKWDNi
    KexrmAENv6na13VT

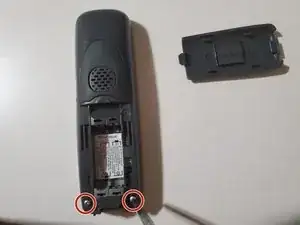

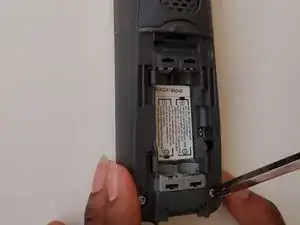

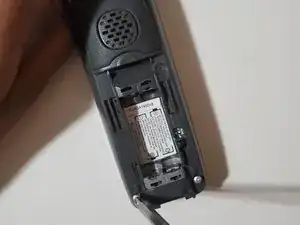

    • Use a Phillips #00 screwdriver and remove two 6.4 mm screws.

    • The screws are at the bottom right and left-hand corner.

  4. PJCn2IARkW2jmp1b
    PJCn2IARkW2jmp1b
    mRiSLQVl6OiOdpAE

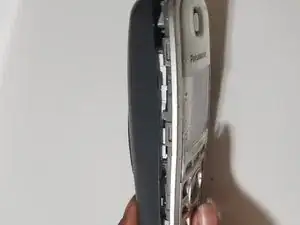

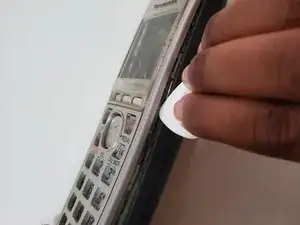

    • Take an opening tool or pick and slide it in between the back and front cover all the way around the phone, then pull the back case off.

  5. VN5Tml1gaSIHIbOb

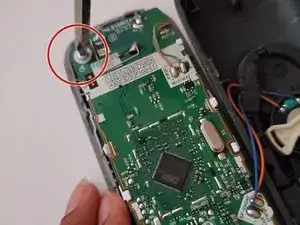

    • Use a Phillips #00 screwdriver to remove one 6.4 mm screw from the top left corner of the phone.

  6. CIkde3gDqJxyyNmJ

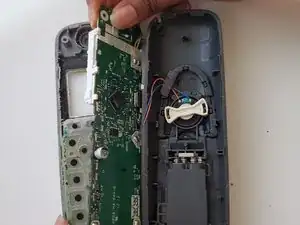

    • Gently pull the circuit board back.

  7. RaWClEob5wBdKtHr

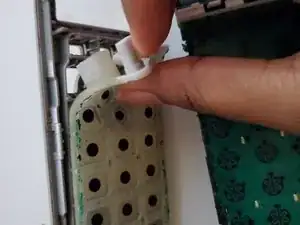

    • Pull the button pad out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
