Einleitung
If your Panasonic Lumix DMC-FX01 is unable to take pictures with the lens or the lens refuses to open, this guide will show you how to replace it. A camera lens is an important component to a digital camera. Without it, the image you want to capture will not be possible.
Smaller digital cameras like this one come with very small pieces that you will need to remove. As you will see later in the guide, it is important to be a delicate as possible with the pieces to ensure you do not cause any more damage to the broken item.
Before you begin, check the battery connecter to see if any debris is preventing the battery to make the lens work (this is a common reason the lens will not work).
Once you have confirmed that the lens is not working, begin this guide.
Werkzeuge
-
-
Locate the memory card and battery card latch on the bottom of the camera.
-
Slide the latch to the open position.
-
-
-
Remove the three 4.6 mm screws on the bottom of the camera using a Phillips #00 screwdriver.
-
-
-
Remove the single 3.2 mm screw on the left side of the camera using a Phillips #00 screwdriver.
-
-
-
Remove the two 3.2 mm screws on the right side of the camera using a Phillips #00 screwdriver.
-
-
-
Gently remove the back casing.
-
Start at the bottom and carefully pry towards the top to get this piece free.
-
-
-
Remove the two black 5.4 mm screws that hold in the front faceplate using a Phillips #00 screwdriver.
-
-
-
Carefully remove the front casing after verifying that the thin plastic around the lens is not still attached.
-
-
-
Lift the two black latches that hold the connector ribbons in place.
-
Disconnect the two ribbons.
-
-
-

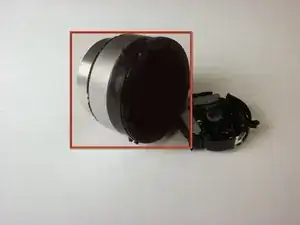

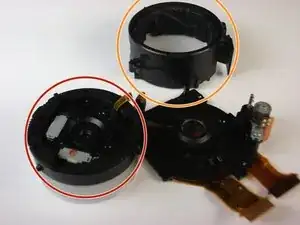

Separate the fixed frame unit from the main lens assembly.
-

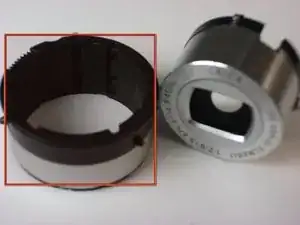

Separate the direct frame unit from the main lens assembly.
-
To reassemble your device, follow these instructions in reverse order.
