Panasonic Lumix DMC-FX07 Flash Assembly Replacement

Geschrieben von: Karissa
  • Kommentare: 0
Panasonic Lumix DMC-FX07 Flash Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will take you through the steps of how to replace the flash assembly.

  1. SJKZhwv5Q1kN2BiV

    • Move the switch on the battery door to the Open position.

    • The door will automatically swing open after you let it go.

  2. 3ZKsYoVItMVCPGWq
    3ZKsYoVItMVCPGWq
    XHScTkUwv5U2KKFg

    • Push the small gray tab on the top right corner to the left. The battery will pop out slightly.

    • Keep your finger clear of the battery when it pops out.

  3. MMZ2WGveTdsohiOf

    • Push the memory card in and let go.

    • The memory card will pop out slightly.

    • Pull out the memory card.

  4. vqO6xXrIFebmGlX3
    vqO6xXrIFebmGlX3
    tMJMAsJH3KmxEltC

    • Unscrew the small screws on the sides of the camera.

    • The screws on the left side(#00P, 4.7mm) are longer than the screw on the right side(#00P, 3.3mm).

  5. wjY555FG4V1uqISP
    wjY555FG4V1uqISP
    2YPpJAvFdj1tWDGB

    • Unscrew the three small screws on the bottom(#00P, 3.3mm).

    • The bottom will fall off.

  6. tsHbrJGmgDDRjpI2
    tsHbrJGmgDDRjpI2
    BQpHIUX3aohXG3lR
    WMVuJKPbJDuoSVSJ

    • Lift up the bottom back cover by prying the bottom edge with the spudger.

    • Gently lift up the back cover with your hand from the bottom to the top.

  7. vBpfLUMnqIboLRGL
    vBpfLUMnqIboLRGL
    FdxXLQkor6qMlYWR
    WsSyjuHAouCy2piE

    • Lift the tabs on the ZIF connectors.

    • The ribbon cables should easily come out of the ZIF connectors.

  8. QqEjD3X1swIb15jJ
    QqEjD3X1swIb15jJ
    dOIZiPDuuWsmA6pC

    • Using the spudger, pry off the top cover by gliding the spudger along the entire edge between the top cover and the front cover.

    • Be careful not to damage the cylindrical capacitor on the circuit board under the top cover.

  9. dgN11iEKKbG3WpDQ

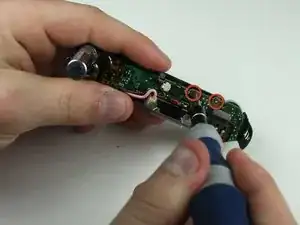

    • Unscrew the small screws beneath the top cover(#00P, 1.7mm).

  10. BXbrSlawdnWIxFPo
    BXbrSlawdnWIxFPo
    jKTUG2NEB6PREtq3
    tlMf2PqXaKIYYEL6

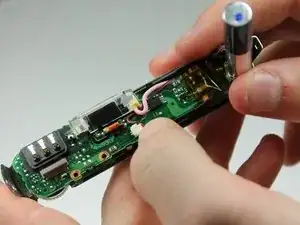

    • Lift the logic board out with your hand by pushing the tabs out and pulling the logic board up.

    • The on/off switch and the anti-shake button may fall out.

  11. sDIETMoWJakdW21r

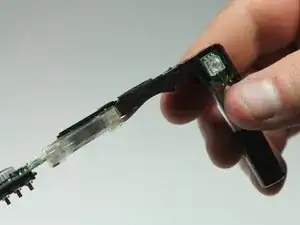

    • The flash assembly is hardwired into the top circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
