Panasonic Lumix DMC-FX37 Photoreceptor Replacement

Geschrieben von: Zhentao
  • Kommentare: 0
Panasonic Lumix DMC-FX37 Photoreceptor Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you how to access and remove the photoreceptor from the camera. It features three ribbon cables that you should handle carefully due to their delicate nature. As always, you should take note as to what screws go where so that you do not cause internal damage to your device.

  1. VeLJ1m1ESXNpK2TG
    VeLJ1m1ESXNpK2TG
    mnMxLxZvApo5Ms5p

    • Remove both of the 3 mm screws on the bottom of the camera connected to the side panel.

  2. mWQorVLwapjCG6sh
    mWQorVLwapjCG6sh
    RM3GHhHgxW2QadQc

    • Remove the remaining 3 mm screw holding on the side panel and remove the panel entirely.

  3. Gcsib1KEnXUUpqjI
    Gcsib1KEnXUUpqjI
    jVEeTouYg5ljnbIZ

    • On the opposite side of the camera, remove the two 3 mm screws.

    • Remove the bottom side panel and place it with its respective 3 mm screw.

  4. 41KOYZOEER2qPaoT
    41KOYZOEER2qPaoT
    OasxFcoFRTQkZxGJ
    DOT1SJ1bWHFwjw6J

    • Remove the front panel (the panel around the lens casing) from the camera.

    • Remove the two ribbon cables connected to the back panel (the panel this the LCD screen) by lifting up on their respective tabs and gently pulling out the cord.

    • Caution: When removing the back panel, the two ribbon cables are relatively delicate and must both be disconnected before the panel can be entirely removed.

    • Remove the back panel from the camera.

  5. 6iOkc46XvlRmwTeU

    • Remove the top control panel (connected to the flash battery) from the camera.

    • The top control panel is connected to the rest of the camera by a delicate multi-pin plug. Be careful as to not bend the pins!

  6. YNQaeSpFlPQrUDVT
    YNQaeSpFlPQrUDVT
    1QghQ3OnYx3lJcAv

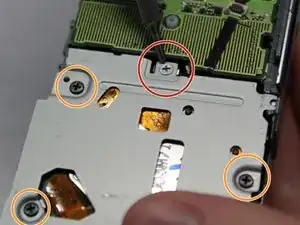

    • Locate and remove the silver 2mm screw on the protection panel.

    • Remove the three black 8mm screws that remain.

    • Be sure to remember which length of screw goes to which slot. Failing to do so could damage your device.

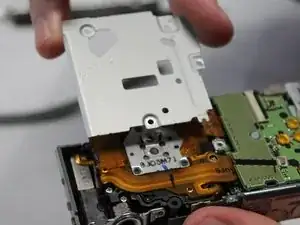

    • Proceed to remove the protection panel entirely.

  7. QVfQhBcplUAirkBw

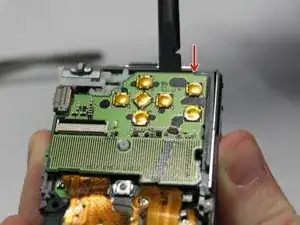

    • Insert the flat end of a plastic spudger underneath the motherboard and twist. This will disconnect the board from the device and allow it to be removed.

  8. yuXDgXHjASnPgrYM

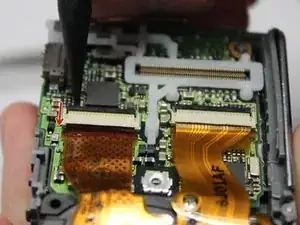

    • Use the pointed end of the spudger to lift the black tabs holding the ribbon cable connected to the photoreceptor in place.

    • Before pulling the cable free, be sure to complete the next step (removing the screws) as the ribbon cables are delicate and must be handled with care.

  9. j5mqifReiEyCPysg
    j5mqifReiEyCPysg
    HncnjZghm3CgeNe6

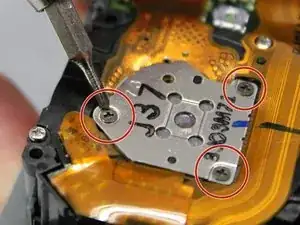

    • Remove the three 3mm screws holding the photoreceptor in place.

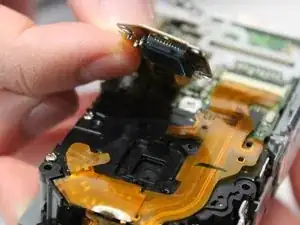

    • Carefully lift the photoreceptor, disconnecting the ribbon cable and remove the photoreceptor from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
