Panasonic Lumix DMC-G5 Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Panasonic Lumix DMC-G5 Back panel replacement is required if the back panel of the camera is damaged. Examples of back panel damage are button problems and LCD cracking. Removal of back panel requires removal of several small screws.

  1. wxIE2SwXuEKJWbLy

    • Remove four JIS #000 screws from the bottom part of the camera.

  2. AfJwML2sMsGbK35c
    AfJwML2sMsGbK35c
    MCGXBY2CXP2Vhlgq

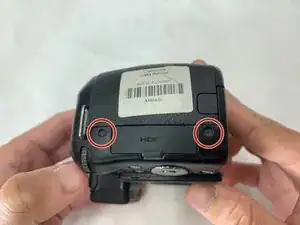

    • Remove two JIS #000 screws from both sides of the camera.

  3. FESWLx5bXYgDvr2V

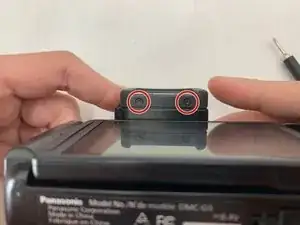

    • Remove two JIS #000 screws under the viewfinder.

  4. olNFZHabA4dv6Ghy
    olNFZHabA4dv6Ghy
    3jXOoSrxsSADyBRO

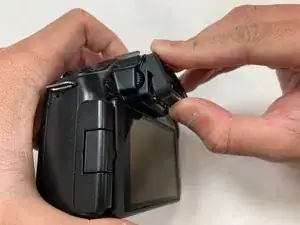

    • Remove the viewfinder lid.

    • Then, remove the two JIS #000 screws on the viewfinder.

  5. HLseYkxnYhJvrWQq
    HLseYkxnYhJvrWQq
    ZXBtsNjdLiwpxJri
    yvcHQ2SDKLOxPNcD

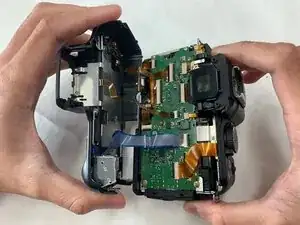

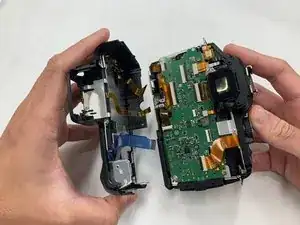

    • Gently remove the back panel from the camera.

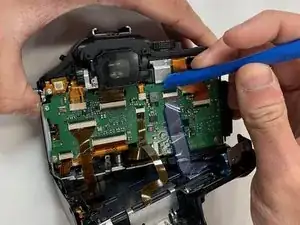

    • Unclip the ribbon cable from the motherboard using Wide Plastic Opening Tools and pull the cable gently.

Abschluss

To reassemble your device, follow these instructions in reverse order.
