Panasonic Lumix DMC-G5 Motherboard Replacement

Geschrieben von: Khairul Samsudin
  • Kommentare: 1
Panasonic Lumix DMC-G5 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

9 Minuten

Einleitung

Panasonic Lumix DMC-G5 Motherboard replacement is required if the motherboard is damaged. This guide requires removal of several small screws and detachment of ribbon cables.

  1. wxIE2SwXuEKJWbLy

    • Remove four JIS #000 screws from the bottom part of the camera.

  2. AfJwML2sMsGbK35c
    AfJwML2sMsGbK35c
    MCGXBY2CXP2Vhlgq

    • Remove two JIS #000 screws from both sides of the camera.

  3. FESWLx5bXYgDvr2V

    • Remove two JIS #000 screws under the viewfinder.

  4. olNFZHabA4dv6Ghy
    olNFZHabA4dv6Ghy
    3jXOoSrxsSADyBRO

    • Remove the viewfinder lid.

    • Then, remove the two JIS #000 screws on the viewfinder.

  5. HLseYkxnYhJvrWQq
    HLseYkxnYhJvrWQq
    ZXBtsNjdLiwpxJri
    yvcHQ2SDKLOxPNcD

    • Gently remove the back panel from the camera.

    • Unclip the ribbon cable from the motherboard using Wide Plastic Opening Tools and pull the cable gently.

  6. elQXOYyU36kkymiK

    • Remove the JIS #000 screws on the motherboard.

  7. nWEpclsvx6Pixq1f
    nWEpclsvx6Pixq1f
    axyKgY1csYqSMn3R

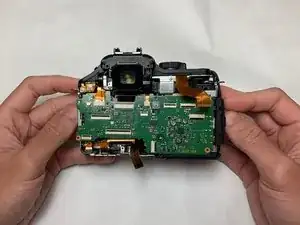

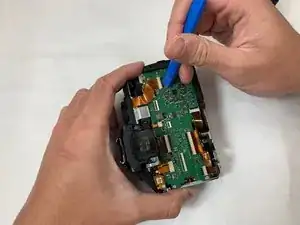

    • Unclip the ribbon cable using the Wide Plastic Opening Tool on the motherboard.

    • Gently pull out the cable.

  8. Dc35mLWmRSoIbZgP

    • Pull out the motherboard from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
