Panasonic Lumix DMC-G7 Rear Thumbwheel Replacement

Geschrieben von: Jared Lynn
  • Kommentare: 0
Panasonic Lumix DMC-G7 Rear Thumbwheel Replacement

Schwierigkeitsgrad

Difficult

Schritte

21

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

If rotating the rear thumbwheel elicits no or inconsistent response from a powered on camera, it may need replacement. Follow this guide to learn how to remove and replace the rear thumbwheel.

  1. lEYRtTJRA2yFS5Vy
    lEYRtTJRA2yFS5Vy
    FBO3BhWp5apURy22

    • Unlock and open the battery compartment on the bottom of the camera.

    • Remove both the battery and SD card.

  2. WPBt6fWlNHUtjJvu
    WPBt6fWlNHUtjJvu
    AIctXtlLKbSu1hdw
    tVTcPDdchpSMuCdh

    • Remove the four indicated 3.0mm long black screws from the bottom of the camera and the viewfinder housing using a PH0 Phillips screwdriver.

    • There are four screws on the bottom of the camera. Only remove the two nearest to the screen.

  3. y2NocsEuHoXpk1hR
    y2NocsEuHoXpk1hR
    ETc6TqJPMsmHiEjV
    BDnoMZjTeeUZZZEa

    • Remove the four indicated 6.0mm long black screws using a PH0 Phillips screwdriver.

    • Three of the screws are located on the sides of the chassis and one is directly underneath the battery compartment lid.

  4. kRHQnDZ4SNUtidfA
    kRHQnDZ4SNUtidfA
    iODl1WLbDGIGlrSY
    GAbGIHmrcAJc6LYH

    • Remove the viewfinder eye cup by pulling up and out from the bottom to separate the locking clips from the camera.

    • Do not flex the eye cup too aggressively as it may lose its shape.

    • Remove the two indicated silver 3.5mm long screws adjacent to the viewfinder screen using a PH0 Phillips screwdriver.

  5. YttKOCMPgoyRUbvE
    YttKOCMPgoyRUbvE
    2BtdrqZQpuxPJpvm

    • Use an iFixit opening tool (or similarly long and thin object) to insert into the gap between the two camera halves and pry the camera apart from the top.

  6. lIEA3i1oyHS6XMKy
    lIEA3i1oyHS6XMKy
    MEOAQQMTDxOrOLCT
    On4ICrOe6ncdmCMW

    • Remove the two indicated ribbon cables before separating the two halves of the camera.

    • Using a flat object, pry open the black tabs above the ribbon cable connectors by gently pulling away from the motherboard.

    • An opening pick is recommended, but any equally small and flat object will work.

    • Ribbon cables are fragile, so put as little stress on them as possible.

  7. GSfWZuR3JE6fsOSE
    GSfWZuR3JE6fsOSE
    lrl2OITjYBpGHxL4

    • Remove the 4 indicated flex cables from top of mainboard

    • Remove the indicated small flex cable from top of mainboard.

    • The small flex cable does not have a lock: simply pull to disconnect it.

  8. kwhcLDTwPOQujxWE
    kwhcLDTwPOQujxWE
    ThAchrPRXFHFRJcO

    • Remove the 3 indicated flex cables from the bottom of the mainboard.

  9. sZXjaIkGb3FOXU4G
    sZXjaIkGb3FOXU4G
    E22GPO3IBGyv2RBZ
    dFZWZg1kViCLJ4Jr

    • Remove the 4 indicated red 3.0mm long screws from the corners of mainboard using a Phillips PH0 screwdriver.

    • With the eyepiece facing away from you, pull up on the main PCB from the left side and then pull it away from the chassis.

    • There is a plastic locking tab on the bottom of the camera that holds the mainboard PCB.

    • A replacement mainboard can be purchased from AliExpress here

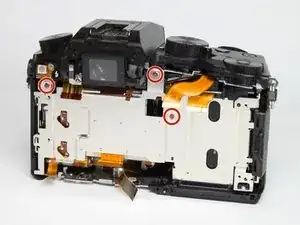

  10. 1SQlbBMKcDAoHWgD
    1SQlbBMKcDAoHWgD
    MBICXKMYJPjbsVrZ
    rcJ5FGPfacIbc3YK

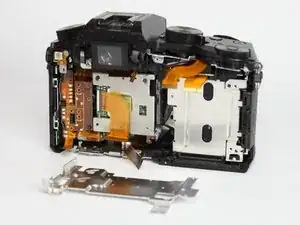

    • Remove the three indicated red 3.0mm screws from heat sink shield using a Phillips PH0 screwdriver, then remove the heat sink.

  11. SjGDPk3PFNLH1mIY
    SjGDPk3PFNLH1mIY
    pkf6uxrj4XjdQdcq

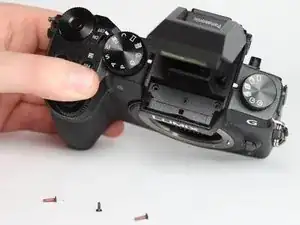

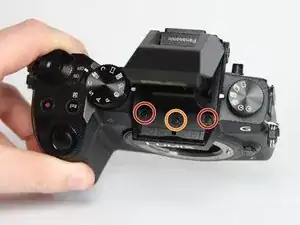

    • Use a Phillips PH0 screwdriver to remove the two indicated black 6.0mm long screws from top of camera, underneath the flash mechanism.

    • Remove the indicated black 4.0mm long screw from the top of the camera.

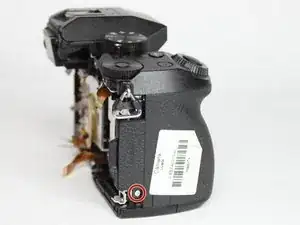

  12. 4X4WZjKYqb1mDUhZ
    4X4WZjKYqb1mDUhZ
    upoPa5UAC1ucAWmD

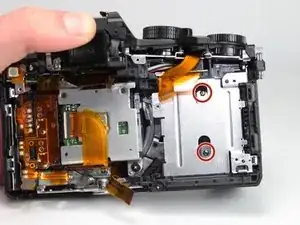

    • Remove the three indicated silver 5.0mm long screws from the back of the camera and the right side using a Phillips PH0 screwdriver.

    • The two screws on the back require a very thin screwdriver as they are only accessible through the holes on the back shield.

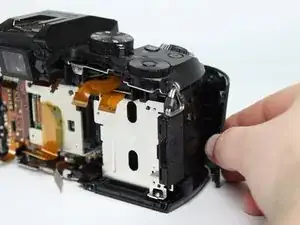

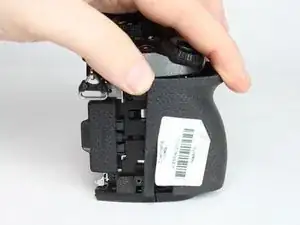

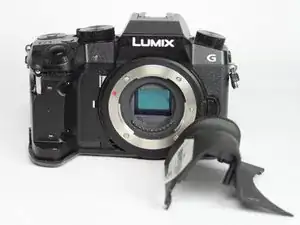

  13. WwttRWLFNaPwjYAZ
    WwttRWLFNaPwjYAZ
    G1RvIkWjHmUgFZOf
    3AZn3f3aNpMHqQPC

    • Remove the front grip from the camera by pulling it forward and out.

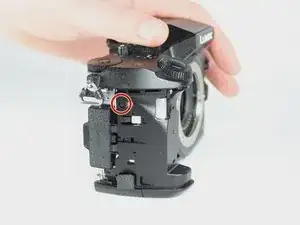

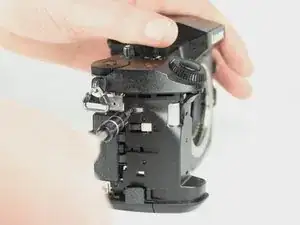

  14. 2kjaJ1POVJ6qmMIE
    2kjaJ1POVJ6qmMIE
    1eGKooYDDJKQQc3m

    • Remove the indicated black 4.0mm long screw from the side under the front cover using a Phillips PH0 screwdriver.

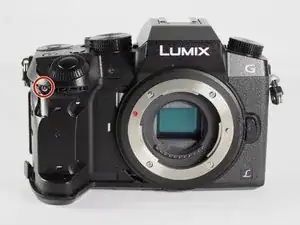

  15. tUO6UooBUFSHWiee
    tUO6UooBUFSHWiee
    2tKNpFgMqWcVE41A

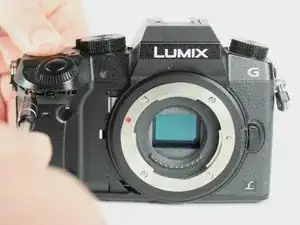

    • Remove the indicated silver 5.0mm long screw from under the front cover using a Phillips PH0 screwdriver.

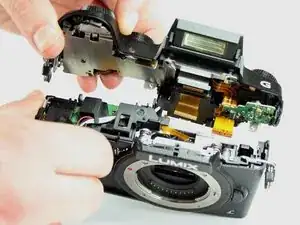

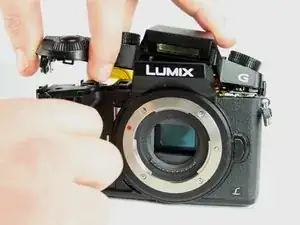

  16. QxrgU3WKqkkagYmF
    QxrgU3WKqkkagYmF
    YhPy2TU2WfYhXmGt
    ortgNXPUQUR5xGA2

    • Lift the top unit away, separating it from the rest of the unit.

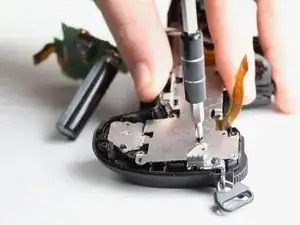

  17. UGjOvKbUjKwoliud
    UGjOvKbUjKwoliud
    dISMEpfuDDXTi5mD
    4niCqqkP43tOoI2E

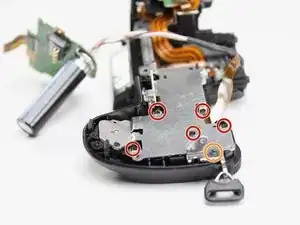

    • Remove the five indicated black 4.0mm long screws from the top plate shield using a Phillips PH0 screwdriver.

    • Remove the black 6.0 mm long screw from shoulder strap eyelet.

  18. PETfrBehFaqGBsjs

    • Lift away the shoulder strap eyelet.

    • Lift away the metal shield plate.

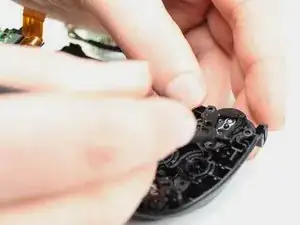

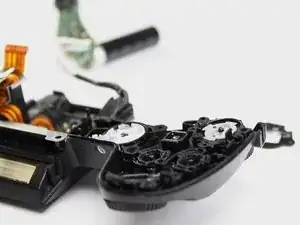

  19. kYXZH5b1cyOVpM6Q
    kYXZH5b1cyOVpM6Q
    AmIvtyK4pQMUMZv6
    4VPwrPKCDgThNLDJ

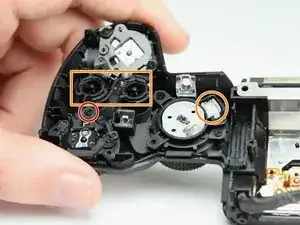

    • Remove the indicated black 4.0 mm long screw using a Phillips PH0 screwdriver.

    • Lift away the circular plastic cover.

    • The parts indicated in orange are not retained and can fall out.

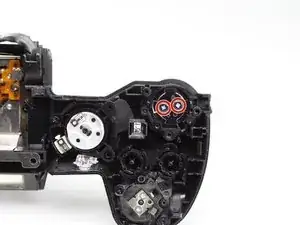

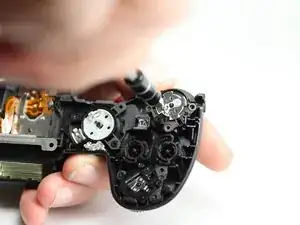

  20. MQCYvDyqZPoBHZDL
    MQCYvDyqZPoBHZDL
    vGNwA51AtJOKSN5W

    • Remove the two silver 4.0 mm long screws using a Phillips PH00 screwdriver.

    • Hold the wheel in place while unscrewing to prevent the wheel from spinning and hampering the removal of the screw.

    • Once the screws are removed, the metal lower and plastic upper are no longer retained. Pressure should be applied to prevent the pieces from falling apart.

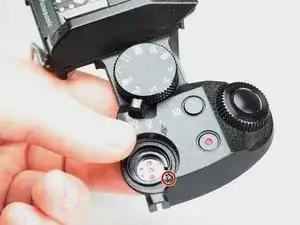

  21. AibeltOwFFnkEuhs
    AibeltOwFFnkEuhs
    J1n4OMBkWAaQp3NY
    HLSZapQk6tv6APLX

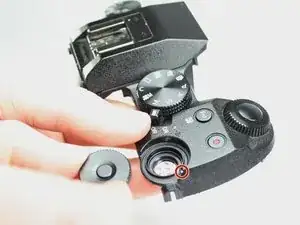

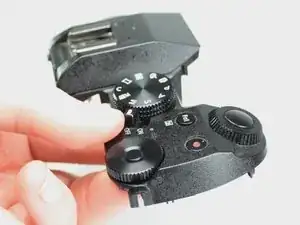

    • Rotate the upper cover so that the plastic section of the rear thumbwheel is upright.

    • Carefully remove the plastic upper cover.

    • There is a small ball bearing, indicated in red, underneath the plastic cover. The bearing is spring loaded and can be lost easily if the cover is not upright.

Abschluss

To reassemble your device, follow these instructions in reverse order.
