Einleitung
This guide requires the use of a screw driver and close attention to which screws need to be removed.
Werkzeuge
-
-
On the bottom of the camera, use your finger to push the lock button to the open position which will cause the hinged door to swing open.
-
-
-
Push the small black tab that holds the battery with your finger to release the battery.
-
Use your fingers to pull the battery out of the camera.
-
-
-

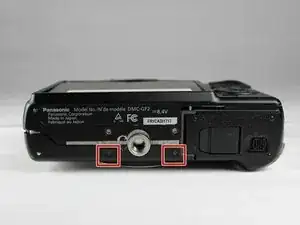

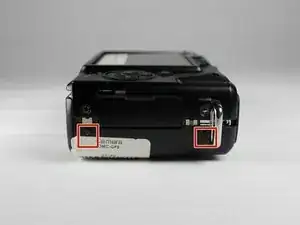

Using a Philips #00 screwdriver, remove six 2.69 mm screws located on the two short sides and on the bottom of the camera.
-
-
-

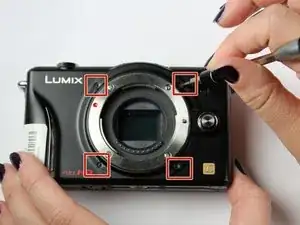

Using a Phillips #00 screwdriver, remove four black 2.69 mm screws from the front of the camera.
-
Abschluss

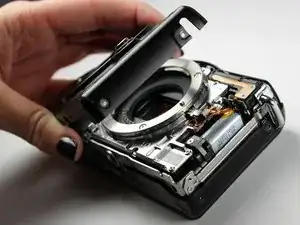

To reassemble your device, follow these instructions in reverse order.
