Panasonic Lumix DMC-GX85 Display Screen Replacement

Geschrieben von: Hae Bom
  • Kommentare: 3
Panasonic Lumix DMC-GX85 Display Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 - 30 Minuten

Einleitung

Do you need to replace the screen of your Panasonic Lumix DMC-GX85? Follow this guide to replace it! All you need is a Phillips head screwdriver and a plastic pry tool. As always, be careful when working on sensitive electronics, as screens are very fragile.

  1. AFUgMNyaSnxGpDfO

    • Turn the camera so that the shutter side faces the ground and the lens faces you.

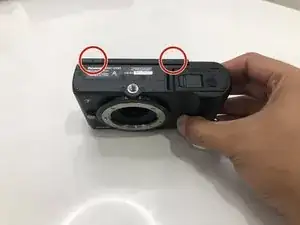

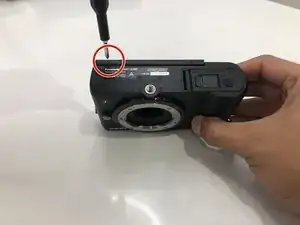

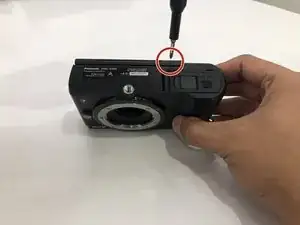

  2. b1I5Qpq32sdCECVu
    b1I5Qpq32sdCECVu
    stOaQctRKFUAOCnO
    eLDwvRLHLv4RLYUO

    • Remove the two 2mm Phillips #0 screws on the bottom of the screen.

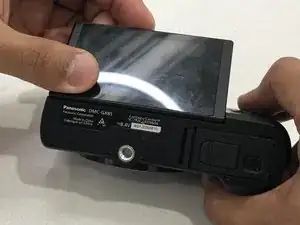

  3. RPc3eDjaIdBaQeRk
    RPc3eDjaIdBaQeRk
    lwusylXp3U21sqEF

    • Swivel the screen away from the camera body so it is facing the ground.

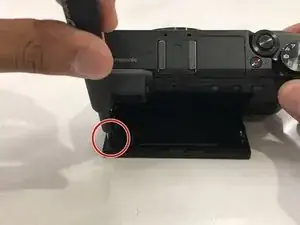

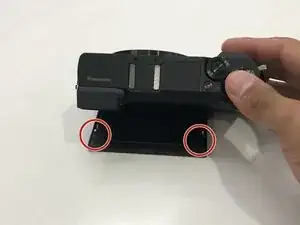

  4. eeZfTdm6wiTgejL4
    eeZfTdm6wiTgejL4
    LpMK5WyLZcFKfHPw
    ruCkZhEWd2V2JXMi

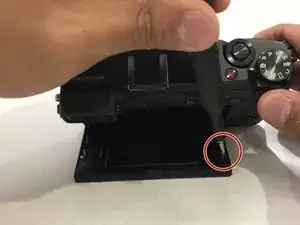

    • Remove the two 6.0mm Phillips #0 screws on the back of the screen.

  5. hN25LHvCJOl4rc6D
    hN25LHvCJOl4rc6D
    FHwpMogLAHdGFfgK
    iL2s2bwQEUsHEWsE

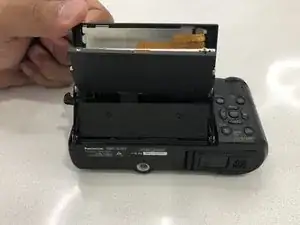

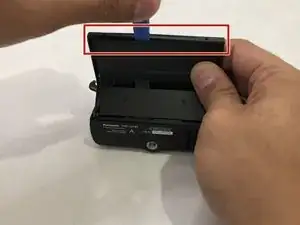

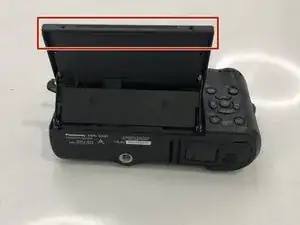

    • Orient the camera so the lens is facing the ground.

    • Using the gap created behind the screen at the bottom, stick the iFixit opening tool inside the gap and gently open the gap.

    • Work the tool evenly around the back of the display to evenly separate the two pieces. Once the back cover is separated enough, remove it by hand.

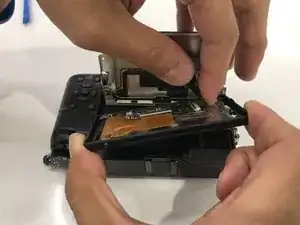

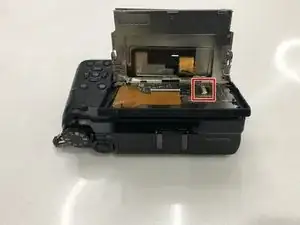

  6. mRGReIGYRADEroT4
    mRGReIGYRADEroT4
    M4XiU3gMPD1G6TBi
    RJWgOuCaGpBU6GCX

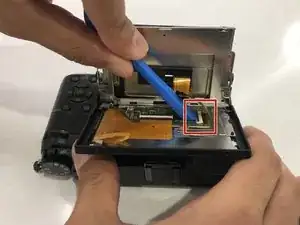

    • Be sure to use extreme caution when handling the ribbon cable to ensure the wiring within it stays intact.

    • Place the camera so that the lens is facing the ground.

    • Using the iFixit opening tool, pry the black connector open and remove the ribbon.

  7. ZKv3VRQGogZsMKUl

    • Gently remove the screen from the camera body.

    Hello, thanks a lot for this detailed tutorial.

    I am looking to buy the replacement screen but the link is dead, would somebody have any idea where to find one ?

    Thanks a lot in advance !

    Emilien Guichard -

Abschluss

To reassemble your device, follow these instructions in reverse order.
