This is the circuit board that the AV chord attaches to for transferring images.

  1. SVVLliM2XM5Hx6dD
    • Remove the battery and memory card from the device.

  2. V6rd2QEIRGfAYJRJ
    • Remove 4 screws from the right side of the camera.

    • There are two 3.4mm screws at the top.

    • There are two 2.2mm screws at the bottom.

  3. qJlCBUGDDkNUcLJr
    • Remove the single 3.4mm screw on the left side of the camera.

  4. iDVtjatkyeufl6Rq
    • Remove 5 screws from the base of the camera.

    • There are two 2.2mm screws next to the battery compartment.

    • There are three 4mm screws around the tripod mount.

  5. 1Me5asWCCCdGtPvj
    • Slowly slide the back cover away from the device

    • The back casing is held in place by two ribbon cables. Do not pull the back cover too far from the camera.

  6. kxjr6hpLfmjRLCXo
    kxjr6hpLfmjRLCXo
    ioJAq6oU5cxWjiYc
    • Detach both ribbon cables using a spudger.

    • Use the tip of the spudger to lift the black clip upward, unlocking the ribbon cable.

  7. oLSpTIPgW1ENV12R
    • Remove the back casing from the camera.

  8. 4SokDJnLwPEctyXI
    4SokDJnLwPEctyXI
    QBwB3XYhOGQqGaID

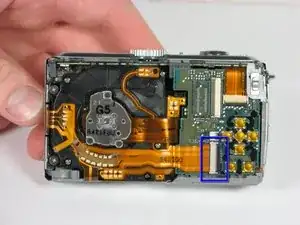

    • Use the spudger to remove the ribbon cable connecting the lens casing to the circuit board by lifting up the black clip.

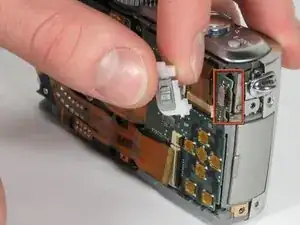

    • Carefully remove the function switch cover. This unit snaps on and off.

  9. hnImMQ25XMgbUVyD

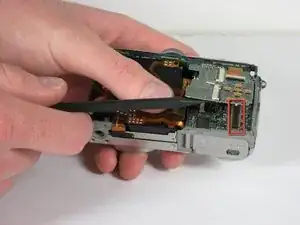

    • Carefully unsnap the front logic board from the rear logic board using a spudger.

  10. 41LULyPfFUsUsMlu
    41LULyPfFUsUsMlu
    Jd2itf4DRmQYynPo

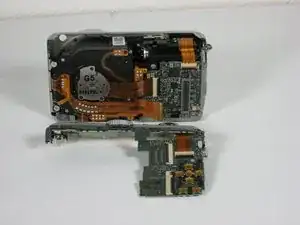

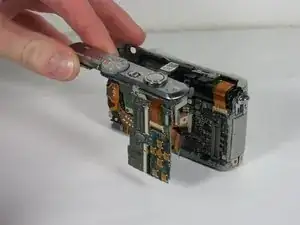

    • Slide the entire top part of the camera that is attached to the logic board, horizontally away from the camera.

  11. hP6TxrXoSOZwmXTh
    hP6TxrXoSOZwmXTh
    SNI3EsMnh3UmuAg6

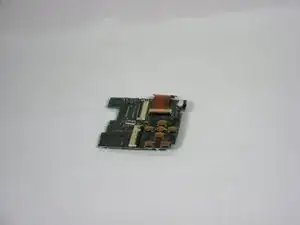

    x6ApUfiTiybdBwrp

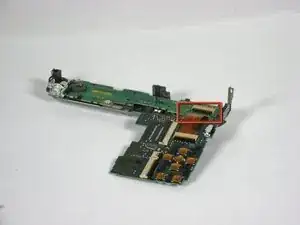

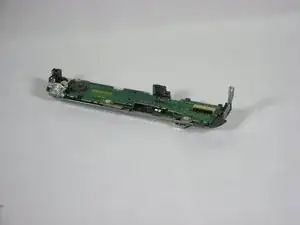

    • Remove the ribbon cable from the top connection panel by unlocking the black clip with a spudger.

    • This leaves you with the logic board and the top connection panel separate and free from the camera

  12. Sr4NvtZNwTPCVdNU
    • Use a spudger to detach the ribbon cable from the circuit board. Lift the black clip up to unlock it as before.

  13. 6etMVKcEnJgwJ2AB

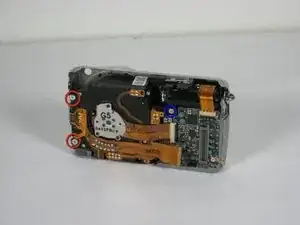

    • Remove the 3 screws holding the lens assembly in place.

    • The two screws on the left are 4.5mm with washers.

    • The single screw on the right is 4mm.

  14. FFFf3Eo4IeVcakAt

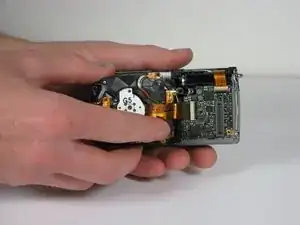

    • Push the lens assembly slightly toward the circuit board, and pull the left side out of the casing first. You will have to wiggle this out gently.

  15. npTmIYcLhZEfd4at
    npTmIYcLhZEfd4at
    SgjZo5YKEJQmI1CM

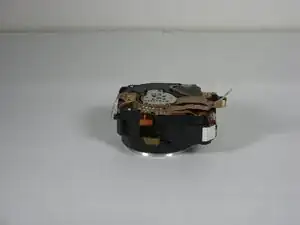

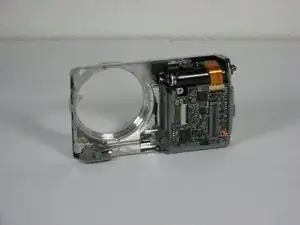

    • Remove the entire assembly out of the casing.

    • The ribbons on the left and bottom of the assembly simply rest on the camera housing.

  16. smugOFVwkETO3VKc

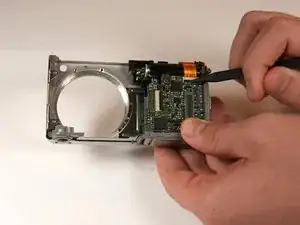

    • Use the spudger to unclip the top ribbon cable from the circuit board.

  17. vuUHEqBQNGJT1XXp

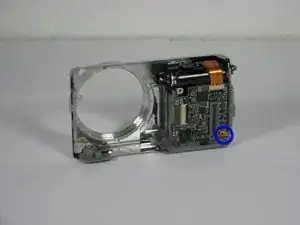

    • Remove the single 2mm screw in the bottom right corner of the circuit board

  18. WCXAGv63uhsKXb5h
    WCXAGv63uhsKXb5h
    5HNBuwKNvuesC4Ul

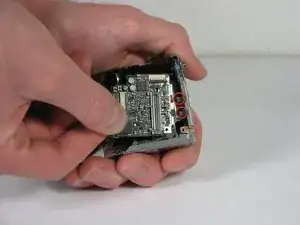

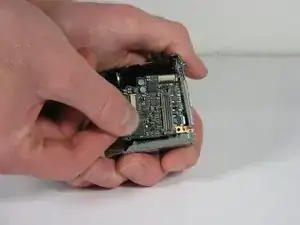

    • Gently slide the circuit board out away from the port connections. Pull it toward where the lens used to be. Some wiggling may be necessary to remove.

    • The circuit board is fitted into slots attached to the side of the camera. Do not angle upwards to remove.

  19. wrGEL1xURaqjHIUM

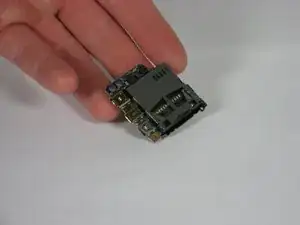

    • Take note of how the slots fit into the circuit board for easy replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
