Panasonic Lumix DMC-ZS19 Menu/Set Button Replacement

Geschrieben von: Willard Scott
  • Kommentare: 0
Panasonic Lumix DMC-ZS19 Menu/Set Button Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

  1. UggioJeaAIQONkIt
    UggioJeaAIQONkIt
    ChSYEgBFJIVp5jXU
    tcg1p2ReeMmbEC5V

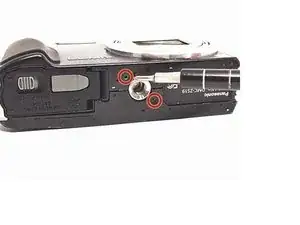

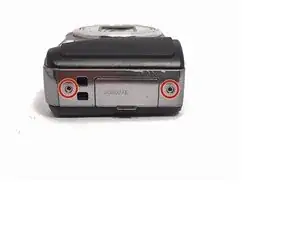

    • Start by removing the screws located on the left and right hand side panels of the camera (two sets of pairs of screws). Next remove the pair of screws on the bottom of the camera. (6 in total)

  2. ISte6RQqUQtCOBDs

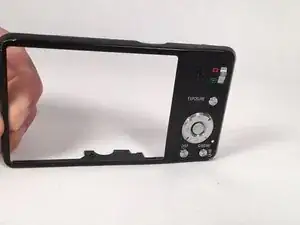

    • Gently remove the loosened panel from the LCD screen.

  3. QsLJyxpKIOMSkeUt
    QsLJyxpKIOMSkeUt
    oNBdS3Yn6WHArLmH
    6Xmc6ZZEMrn2J1UC

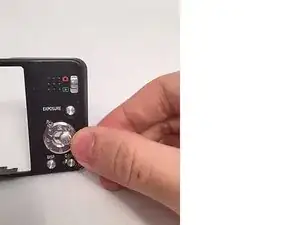

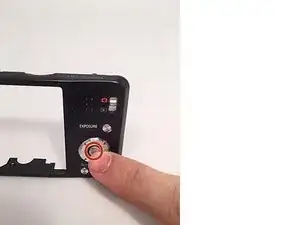

    • Carefully use a finger to pop out the Menu/Set button from the panel by pushing on it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
