Panasonic Lumix DMC-ZS25 Screen Replacement

Geschrieben von: Abbas Khan
  • Kommentare: 2
Panasonic Lumix DMC-ZS25 Screen Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

These steps will guide to simply replace your camera's screen.

  1. VAQEqI4nSEn3naaa
    VAQEqI4nSEn3naaa
    XwoCmrHc1JdnvJRC
    eHIytyyOMfvT4TXB

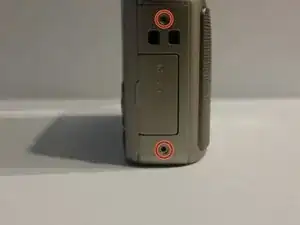

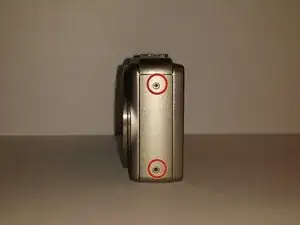

    • Open the four 3.40 mm screws from the right and left sides of your Panasonic Lumix Camera.

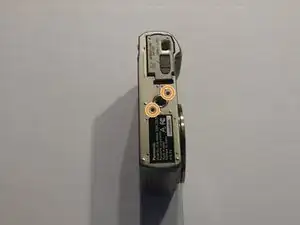

    • Remove the two 2.60 mm screws located next to the battery.

  2. DheIdJRkWIV5sOYo

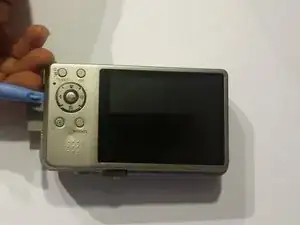

    • Use the plastic opening tool to open the outer cover of your device from the HDMI port.

    • Open it carefully to avoid breaking the cover.

  3. dkPIyVZfugNQeWkQ
    dkPIyVZfugNQeWkQ
    yVNYCatPlRLCCiGu
    hWnnDhtqA3omjorS

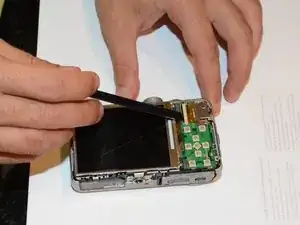

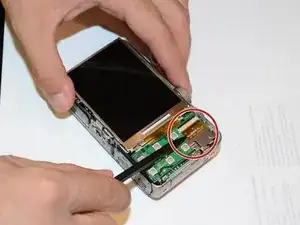

    • Use a spudger to carefully detach the ribbon cable without breaking it.

  4. PqbVGLGDbPDL4vZF

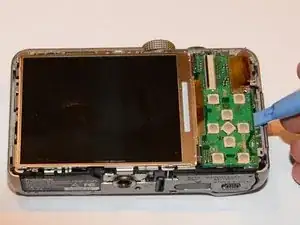

    • Use the plastic opening tool to lift and remove the buttons board as shown.

  5. b2ynCQxOkTRa6uGJ
    b2ynCQxOkTRa6uGJ
    GVZaCrVbZUe63ye5

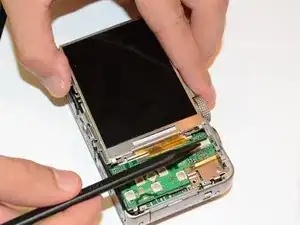

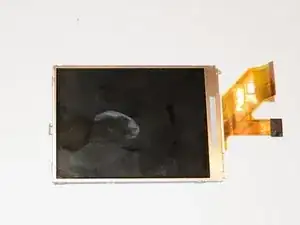

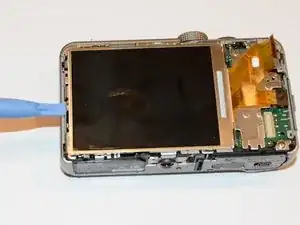

    • Carefully lift the screen using the plastic opening tool as shown.

    The screen replacement I purchased does not have the black tape at the end of the ribbon cable. Will this make a difference in whether the screen will work?

    Alicia -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Abbas Khan

Mitglied seit: 21/01/15

482 Reputation

Ein Kommentar

- Of the two 2.60 mm screws on the bottom of the camera, only the one closest to the back needs to be removed.

- The correct screwdriver is JIS Type S #00. A Phillips driver can ruin the screws.

- The screen shown in step 5 consists of two parts: the LCD and a frame. The replacement LCD that I ordered came without the frame, so a little more disassembly was required, including a bit of delicate soldering: the narrow ribbon cable is really two cables, soldered together. The solder joints are hidden under the piece of black electric tape at the end.
