Panasonic Lumix DMC-ZS40 Camera Sensor Replacement

Geschrieben von: Dean Favetta

Kommentare: 1

Panasonic Lumix DMC-ZS40 Camera Sensor Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

35 Minuten

Einleitung

You may need to replace or clean your Panasonic Lumix DMC-ZS40 Camera Sensor if splotches/dirt are appearing in your photos, or if the LCD screen remains black when attempting to take photos.

Werkzeuge

Schritt 1

Find the battery/memory card door on the bottom right of the camera.
Use your finger or screw driver to slide the grey latch from the locked position to the open position. This will swing open the door.

Schritt 2

Push up on the right-hand-side tab to release the battery.

How do you operate the functions

David Miller -

Schritt 3

Remove battery from camera.

Schritt 4

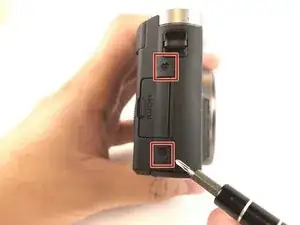

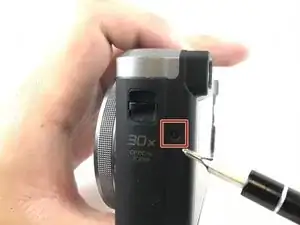

Unscrew these five 3mm screws located around the sides of the camera using a screw driver with a PH000 bit head.

Schritt 5

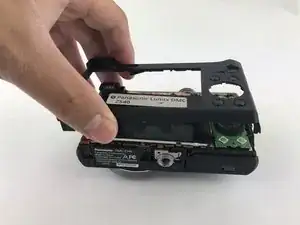

Pry off the back casing of the camera and place the camera face down.

Schritt 6

Flip the right hand side control dial circuit board up.

Schritt 7

Place the LCD screen to the side while you remove the plate cover. The LCD has already been removed in this picture. It is not necessary to remove the LCD screen or the control dial for this guide.

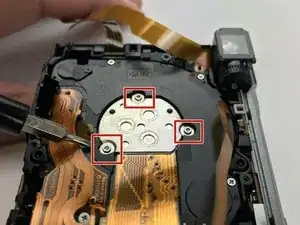

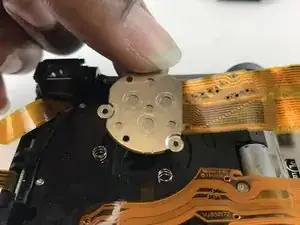

Remove these four 4mm screws and the 3mm screw on the top of the plate cover and on the side of the camera using a PH000 bit head. Once the screws are removed, the plate cover should lift right up.
Keep track of the different screw lengths and do not mix them up.

Schritt 8

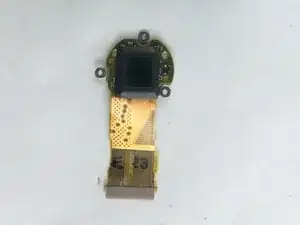

Remove the ribbon cable connecting the sensor to the motherboard. Use tweezers or a screw driver to lift up on the retaining flap of the ZIF connector to remove the cable.
