Panasonic Lumix DMC-ZS40 LCD Screen Replacement

Geschrieben von: Osayamen Orhue
  • Kommentare: 3
Panasonic Lumix DMC-ZS40 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

The LCD screen might need to be replaced due to either physical damage or hardware malfunction. It is a fairly simple process but take care not to damage the motherboard when replacing the LCD screen.

  1. i6FBrrjb2U1efb5o
    i6FBrrjb2U1efb5o
    SHHkVOb6YIdRncqW

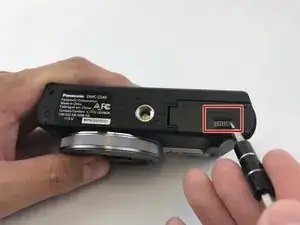

    • Find the battery/memory card door on the bottom right of the camera.

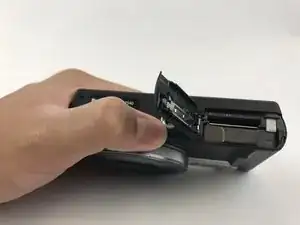

    • Use your finger or screw driver to slide the grey latch from the locked position to the open position. This will swing open the door.

  2. fKIWFvwoTu1XeyP6

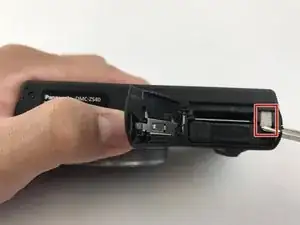

    • Push up on the right-hand-side tab to release the battery.

    How do you operate the functions

    David Miller -

  3. TYWgBQOZ4fG66bgp
    TYWgBQOZ4fG66bgp
    WStOt6BPIbTBkUor

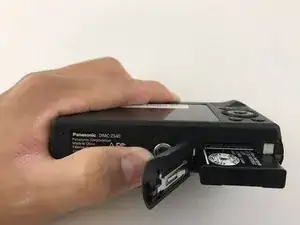

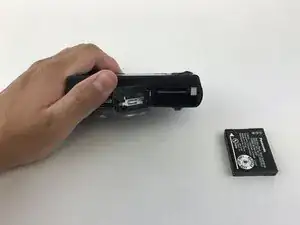

    • Remove battery from camera.

  4. alZoLfKDV1xInHOL
    alZoLfKDV1xInHOL
    ZxjB2kNVRuVxoBbp
    sRo2kPpsyPjMd4HJ

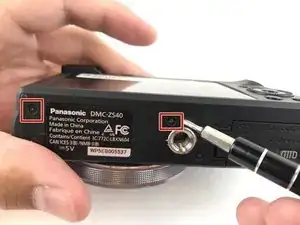

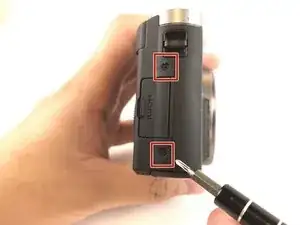

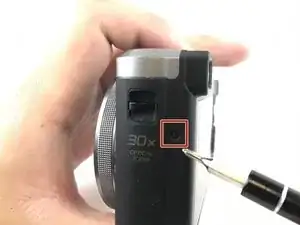

    • Unscrew the five 3mm screws located around the sides of the camera using a PH000 bit or Phillips 000 Screwdriver.

  5. PDxEpSxIMqARSekQ
    PDxEpSxIMqARSekQ
    TmEQQcGZLUGHJyT5

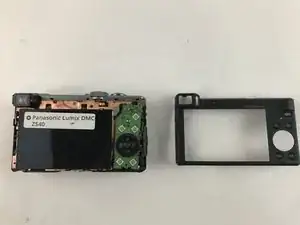

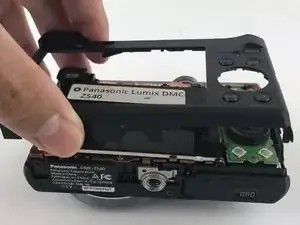

    • Pry off the back casing of the camera and place the camera face down.

  6. qnLCMWAHyXyQoBFS

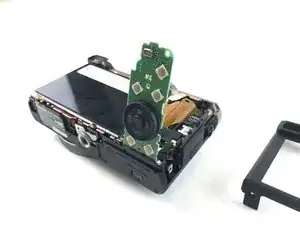

    • Flip the right hand side control dial circuit board up.

  7. GMPdeRYAoYVGPqyu
    GMPdeRYAoYVGPqyu
    EEmrRHFrRIksflfa
    iUL4KNWOfMPriFbY

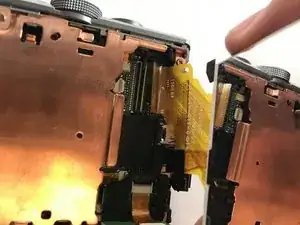

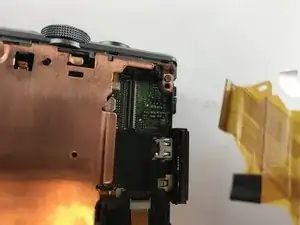

    • Turn the LCD screen over to the side exposing the connection to the motherboard.

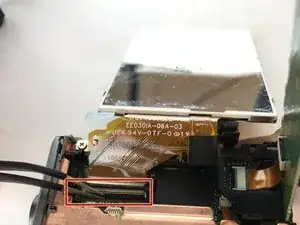

    • Remove the display data cable connecting the LCD screen to the motherboard. Using tweezers, pry up the black retaining flap then gently pull the display data cable free.

    • Be careful when handling any display data cables in the camera as they are prone to tearing.

    • To close for reassembly, slide the display data cable back into the ZIF connector and close the retaining flap.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Osayamen Orhue

Mitglied seit: 14/02/17

174 Reputation

2 Kommentare

The photo in step #7 is helpful but not sufficiently detailed to explain how the Panasonic ribbon connector works. Fortunately, Panasonic has a very detailed video about how these connectors work: https://www.youtube.com/watch?v=5-tBX1UN... (The helpful part of the video starts at 1:24)

It is recommended that you use a soft-tip instrument to flip the connector’s latching bar upward to release the ribbon cable. Then insert the ribbon cable from the replacement screen and carefully press the bar back down.
