Panasonic Lumix DMC-ZS6 LCD Assembly Replacement

Geschrieben von: Derrick Thompson
  • Kommentare: 0
Panasonic Lumix DMC-ZS6 LCD Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will teach you step by step on how to replace broken or malfunctioning Panasonic Lumix DMC-ZS6 LCD screens.

  1. vAdFAFQGPLkePvSO

    • Remove the battery and SD card.

  2. OCpikJhhoKFjeaLl
    OCpikJhhoKFjeaLl
    p4xjim4fFKBTgcm2
    EAFwhqIKED1ByHDT

    • Unscrew the two bottom 1.0 mm screws with a Phillips #000 screwdriver.

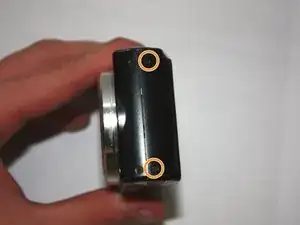

    • Unscrew the two 1.0 mm screws to the left with a Phillips #000 screwdriver.

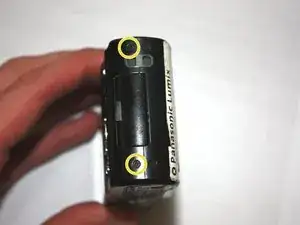

    • Unscrew the two 1.0 mm screws to the right with a Phillips #000 screwdriver.

  3. YubwrlNYsSrfOLeA

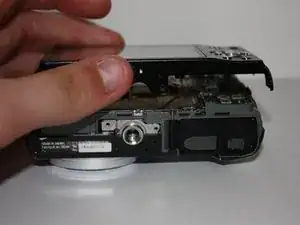

    • Separate the back of the camera from the main body carefully.

    • Do not apply excessive force. The LCD is connected by ribbon cables that can be easily damaged.

  4. Kb1wIVfEgvoKBQr2
    Kb1wIVfEgvoKBQr2
    jjWBAlDDHT6QvKnU

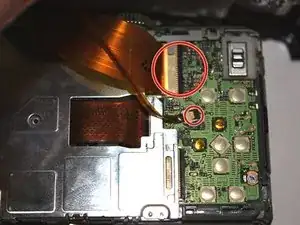

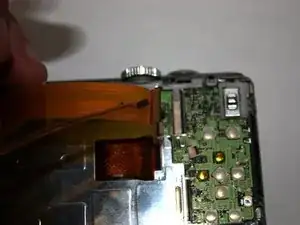

    • Use the tip of the spudger to flip up the black tabs on the ribbon cables.

    • Pull gently on the ribbon cables to unseat them.

  5. Q1AiRFjQsIyXVwUR

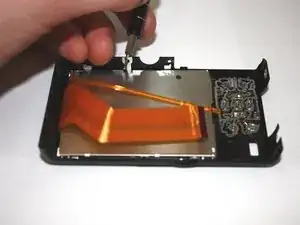

    • Use the tip of the spudger to flip up the metal tabs.

    • Lift the LCD panel out of place carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
