Einleitung
This step by step guide will help you replace a faulty top assembly without damaging any of the other components on the camera.
-
-

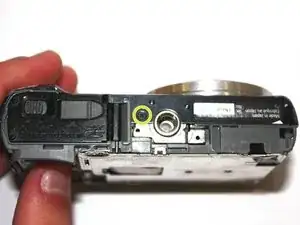

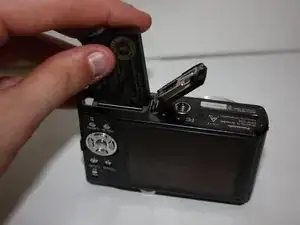

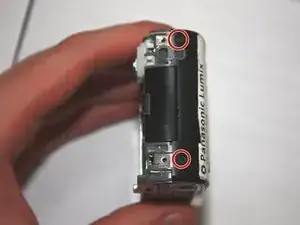

Remove the two bottom 1.0 mm screws with a Phillips #000 screwdriver.
-

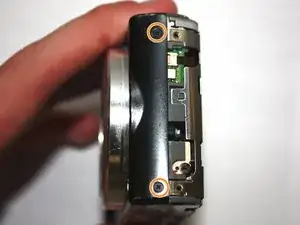

Remove the two 1.0 mm screws on the left with a Phillips #000 screwdriver.
-

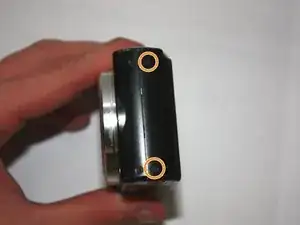

Remove the two 1.0 mm screws on the right with a Phillips #000 screwdriver.
-
-
-

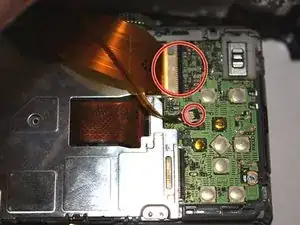

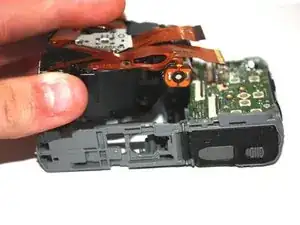

Use the tip of a spudger to flip up the black tabs on the ribbon cables.
-
Pull the ribbon cables gently to unseat them.
-
-
-
Remove the two 1.0 mm screws on the right with a Phillips #000 screwdriver.
-
Remove the two 1.0 mm screws on the left with a Phillips #000 screwdriver.
-

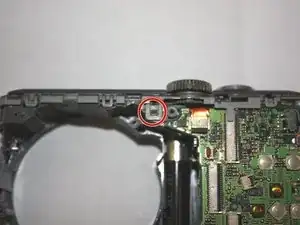

Remove one 1.0 mm screw from the bottom with a Phillips #000 screwdriver.
-
-
-

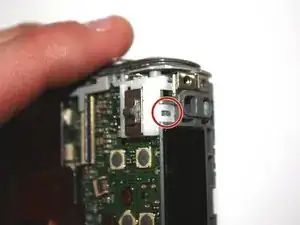

Use the tip of the spudger to disengage the plastic tab.
-

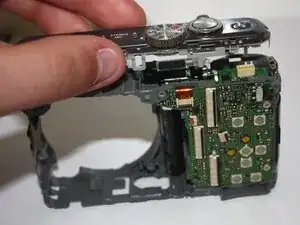

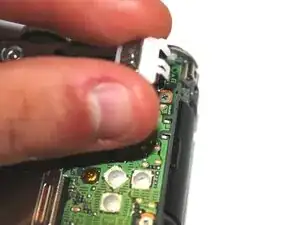

Carefully lift the selector switch away from the motherboard.
-
-
-

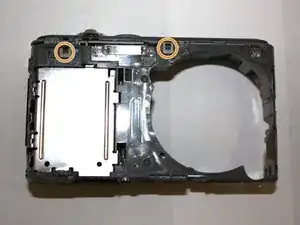

Remove three 1.0 mm screws with a Phillips #000 screwdriver.
-

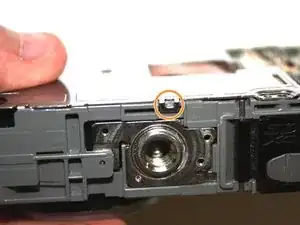

Use the tip of the spudger to disengage the metal tab. Carefully lift the shield away from the motherboard.
-
-
-

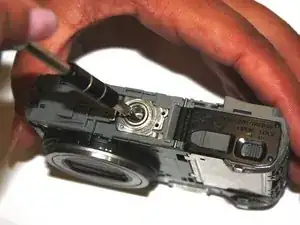

Insert the tip of the spudger into the center hole of the tripod mount. Apply force in the direction facing away from the button.
-
Carefully lift the tripod mount out of the camera body.
-
-
-

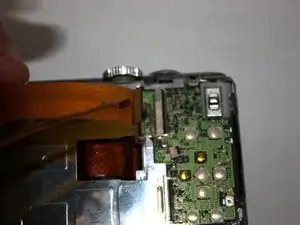

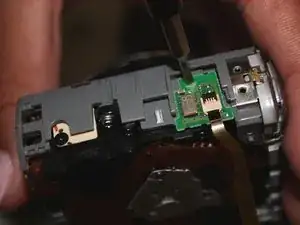

Use the spudger to flip up the brown tab on the motherboard. Carefully unseat the ribbon cable.
-
Insert the tip of the spudger into the hole on the daughterboard. Apply upward force to remove the daughterboard from the main case.
-
-
-

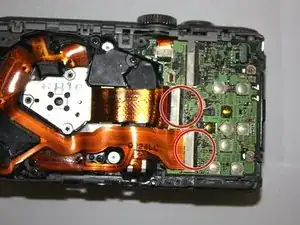

Use the spudger to flip up the two tabs on the motherboard. Carefully unseat the ribbon cables.
-

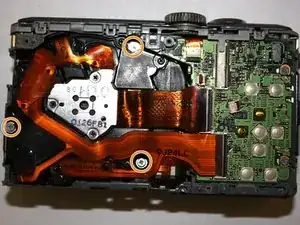

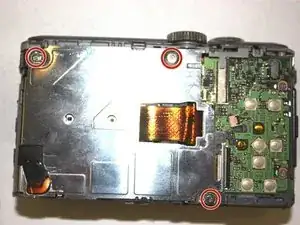

Use the Phillips #000 screwdriver to remove the three silver screws.
-
Carefully lift the lens assembly out of the camera.
-
-
-

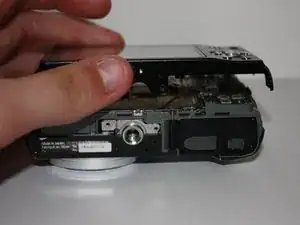

Use the tip of the spudger to disengage the tab on the back of the camera.
-
Use the tip of the spudger to disengage the two tabs on the front of the camera.
-

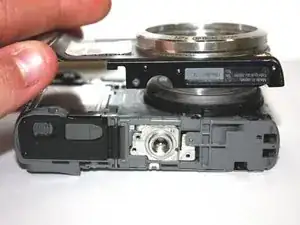

Carefully lift the top assembly out of place.
-
To reassemble your device, follow these instructions in reverse order.
