Einleitung
Camera lens' play a huge role in making cameras effective. Replacing a lens is easy as 1-2-3 and only takes 10-13 minutes.
Werkzeuge
-
-

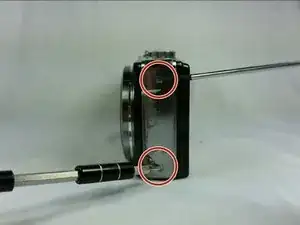

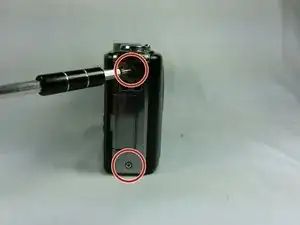

Take a Phillips Head screwdriver and remove the 2mm screws on the left and right side of the camera.
-
-
-

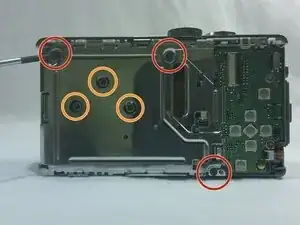

Remove the 3 Phillips 4mm screws located on the aluminum plating inside the camera.
-
Then remove the 3 Phillips 2mm screws located in the middle of the aluminum plating.
-
-
-

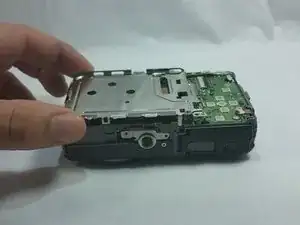

Lay the camera on the front side where the aluminum panel is facing up.
-

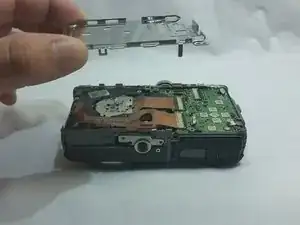

Once the camera is in the right position, lift up the aluminum plating.
-
-
-

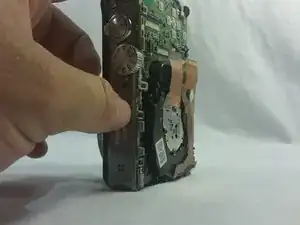

Stand the camera up in the upright position.
-

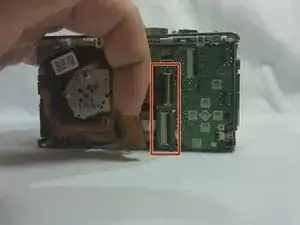

Unplug both copper wiring plugs from the motherboard.
-
-
-

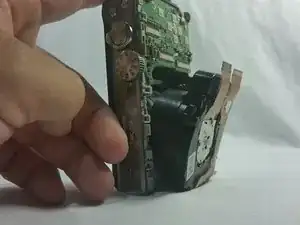

Lift your camera into the upright position
-

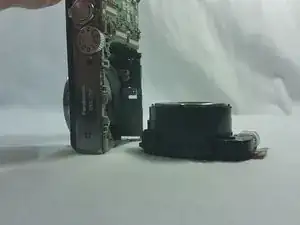

The camera lens should slide out. (Pry it out with a spudger or a plastic opening tool if needed)
-
To reassemble your device, follow these instructions in reverse order.
