Einleitung
Most cameras have mounting brackets on the bottom side of the camera that allow the user to attach the camera to a tripod or other mounting device. These mounting brackets are very easy to cross thread or strip. This guide will help you replace the mounting bracket of the camera.
Werkzeuge
-
-

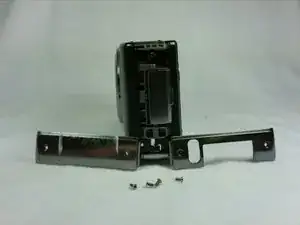

Remove the side panels by unscrewing the Phillips head screws on both sides of the camera.
-
-
-

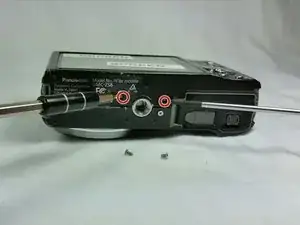

Remove the back panel by unscrewing the two Phillips head screws on the bottom of the camera towards the back.
-

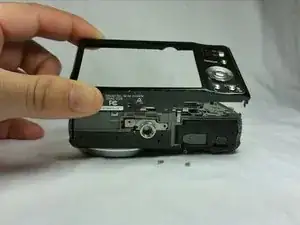

Lift the back panel from the camera and set it aside.
-
-
-

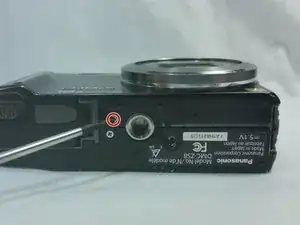

Unscrew the Phillips head screw shown in the picture to remove the front panel.
-

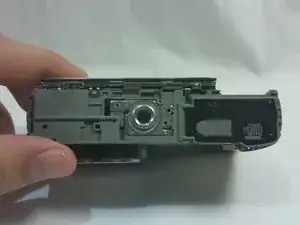

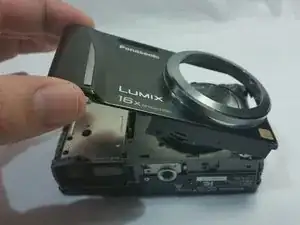

Remove the front panel to expose the bracket at the bottom of the camera.
-
-
-

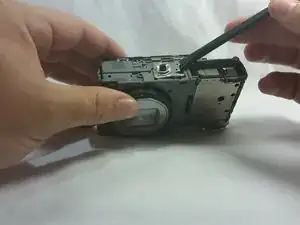

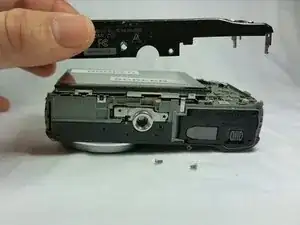

Pry the right side of the bracket up to allow you to grab the bracket with tweezers.
-

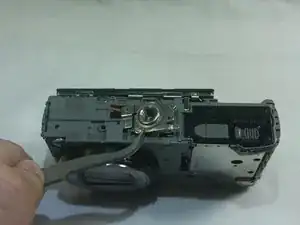

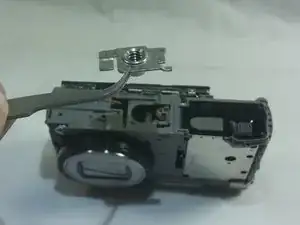

Grab the bracket with tweezers and slide it toward the battery door to remove it from the frame of the camera.
-
To reassemble your device, follow these instructions in reverse order.
