Panasonic Lumix DMC-ZS8 Screen Panel Replacement

Geschrieben von: Trevor Meyers
  • Kommentare: 1
Panasonic Lumix DMC-ZS8 Screen Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to remove all of the exterior panels of the camera in order to remove and replace the LCD screen panel.

  1. CbtNRcPIpQYkFdfv
    CbtNRcPIpQYkFdfv
    613hCKIJrMA62txi
    c1Fq2VKYluXgacBG

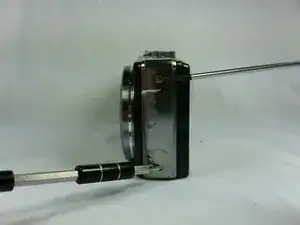

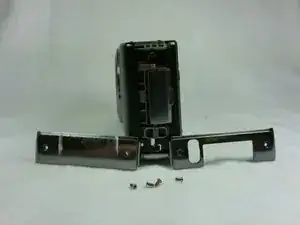

    • Remove all four screws from the side panels.

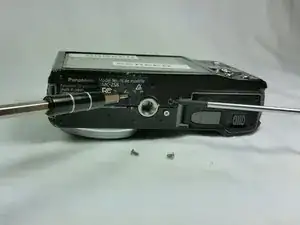

  2. U2ZyuDDpEyciuJNE
    U2ZyuDDpEyciuJNE
    QtSNWDBEAoVSQfjw
    u5Rc566TZnHBgkRM

    • Remove the two screws from the bottom of the back panel.

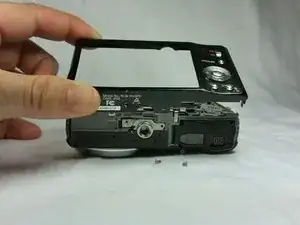

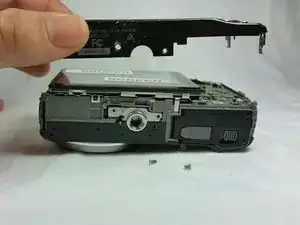

    • Remove the back panel as shown in the second and third pictures.

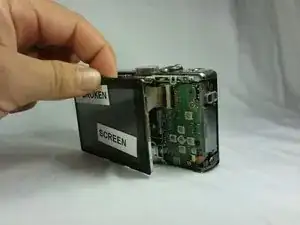

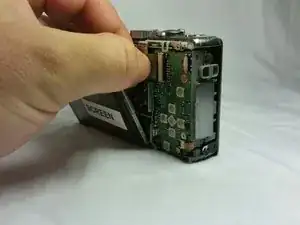

  3. s1QbSXmsNyxALbTQ
    s1QbSXmsNyxALbTQ
    KfTbES5BwOTIXQWd
    vgqIKvQw6opFEWYZ

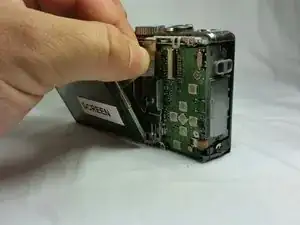

    • Remove the screen from the mounting bracket.

    • Slide the wiring from the board connection.

  4. ENEBppXWAxobUZ5U
    ENEBppXWAxobUZ5U
    cNQgrkORVXyyMjsA
    PlyLpMmIUgyqToEB

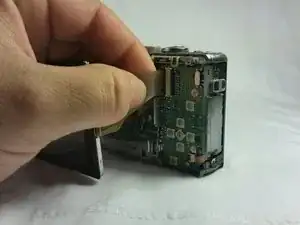

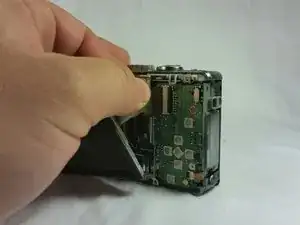

    • Reconnect the new screen wiring into the motherboard as shown in the picture. Replace the new screen into the mounting bracket.

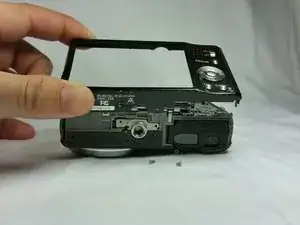

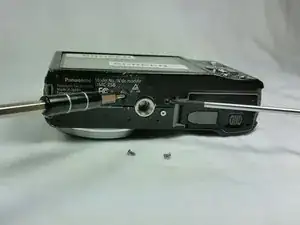

  5. 6erW6uCPTb3Zg3aP
    6erW6uCPTb3Zg3aP
    JuIQCoXTa5yEDgDZ
    srVwV5XF2CmNpUYm

    • Replace the front panel and install the screws on the bottom side of the camera.

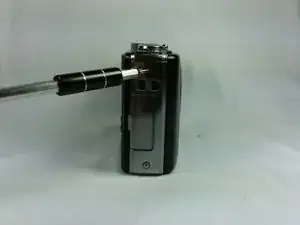

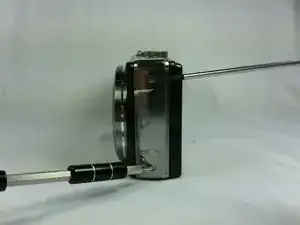

  6. POGoGMLymykdQRo1
    POGoGMLymykdQRo1
    f2V1JXZMSODnE3H2
    JIw5W2WJ42cDtgbh

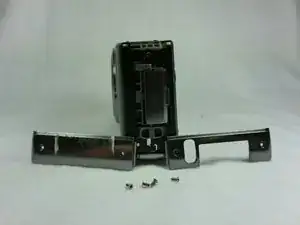

    • Replace the side panels and replace the four screws to secure the side panels.

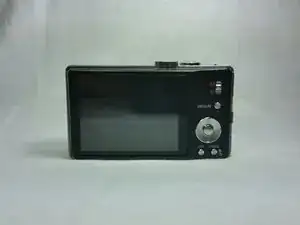

  7. xu1jdPLxhfLlchYy

    • This is what your newly replaced screen should look like.

Abschluss

Now you have a new screen for your Panasonic DMC-ZS8.
