Panasonic Lumix ZS50 Flash Assembly Replacement

Geschrieben von: Bridget Lathrop
  • Kommentare: 5
Panasonic Lumix ZS50 Flash Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. oHDal4NVHyjE4tMK
    oHDal4NVHyjE4tMK
    WarovGLmjPwvTcol

    • Turn the camera off and identify the battery door located on the bottom of the camera.

  2. ASgU12KaxJlTeRkQ
    ASgU12KaxJlTeRkQ
    SdEGdkxLLoqGPqVa

    • Slide the "open" latch to the left: the battery door should spring open.

    • If your battery door doesn't open you may have to pry it open using a plastic opening tool or a standard spudger.

  3. EBTyZFIYuCZyadIG

    • To release the battery, slide the white release lever next to the SD card slot.

    • If you find the battery release lever to be jammed you can push it using a plastic opening tool or standard spudger.

  4. lMkMYlqxuEKxFP6S

    • The battery should now be released; you may now remove the battery from the camera body.

  5. pEcwUChFXGUhmYvT
    pEcwUChFXGUhmYvT
    LGF2KcEGnWXRIM6a
    OvstjRKbthGVbobA

    • Orient the camera so the bottom is facing up and the battery door is on the right side.

    • Remove four black screws from the bottom of the camera.

    • Remove two black screws from the right side of the camera.

    • Remove one black screw from the left side of the camera.

    Could specify which screws are used, for reassembly. If not the gauge of the screw, maybe at least the color of the screw (black for external, silver for internal?)

    Cory Wong -

  6. SkHsTVfkVcq4Y66H
    SkHsTVfkVcq4Y66H
    apQFEV6xPmTJCuiI

    • Remove the casing from the camera by hand or using a plastic opening tool.

  7. CelhtmirDwUC4EdB
    CelhtmirDwUC4EdB
    RwbQOtjDIJy5JoCv

    • Use a spudger to lift up and tug off the green button board.

    • Be careful to not damage the attached ribbon cable.

  8. cfIQo44DxsT1vcFl
    cfIQo44DxsT1vcFl
    vvdMMbTXrZHBIJVY
    yhFNw5IidR1YiJTB

    • Remove the screen using the plastic opening tool, prying from the top.

    • Once it's lifted up, tug lightly on the large ribbon cable to detach the screen from the camera body.

    Was slightly confusing on how to detach/reattach the LCD screen; could possibly use markers or arrows to denote the direction it should be pulled in order to prevent damage to ribbon cables.

    Cory Wong -

  9. X46MBpUHqxJIkOVX
    X46MBpUHqxJIkOVX
    nUEFDi2e3cgJoMPt
    O6ODUMIyZQvGAOpW

    • Remove the three screws from the center of the copper plate.

    • Remove the four screws from the outer edges of the copper plate.

    • Use a plastic or metal spudger to pry the copper plate out of place.

    May want to consider using a plastic spudger rather than a metal one since metal on metal may scratch, unless the plastic spudger didn't fit.

    Cory Wong -

  10. pU5yvaf3NdOPP5xH
    pU5yvaf3NdOPP5xH
    qAZX6OvctqRXXJ1k

    • Remove the casing from the circuitboard by hand.

    • Remove the HDMI port casing by hand.

  11. WWJ1psfR6PYOMjuD
    WWJ1psfR6PYOMjuD
    cuKfiZNsRNbcSiL6
    4y1WjBNypPQKGuRd

    • Disconnect all orange ribbon cables connecting to the circuitboard by hand.

    • Disconnect the circuitboard by hand.

    • There will be one orange ribbon cable attached to the top that can now be removed.

  12. f1ILO3RZdCNBEFNX
    f1ILO3RZdCNBEFNX
    KKbjwgeJoCsFeVvv
    wcXx1EJrg5ZNrJW6

    • Remove the seven screws surrounding the lens assembly.

    • Move all ribbon cables out of your way while unscrewing.

    • Remove the three springs surrounding the lens.

    • Apply pressure on the front of the lens to push the lens out.

    Removal of the seven screws was unnecessary for disassembly regarding this repair section. The screws provide access to the inside of the lens, which was not involved in component disassembly.

    Cory Wong -

  13. DSuGPBHhRWweYrSD
    DSuGPBHhRWweYrSD
    Nf4ucZSkbf6WgNmP
    drmDpvaTZfYR5v13

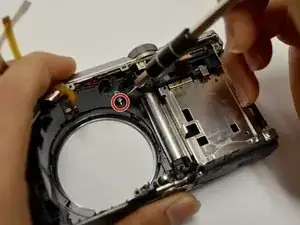

    • Remove the one screw holding the camera and the flash component together.

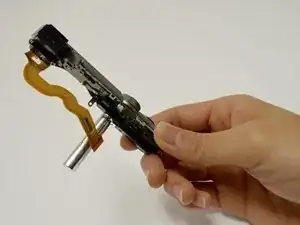

    • Gently pull the flash component out of the camera body.

  14. A56hRTVLNZjVHuN6
    A56hRTVLNZjVHuN6
    IGWdtVWmMKKIhrul
    pwBlT2wEaOyAMlIY

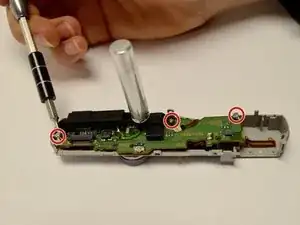

    • Separate the top camera casing from the flash component by unscrewing the three surrounding screws.

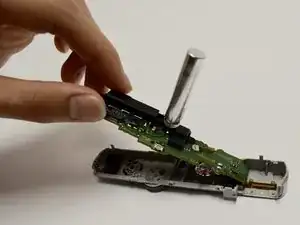

    • Remove the flash assembly, including the circuit board, by detaching it and the ribbon cables from the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Bridget Lathrop

Mitglied seit: 01/02/17

140 Reputation

Ein Kommentar

Step 7: Does not mention the HDMI port door. Make sure you account for it

BayleeVersteeg -
