Einleitung

Remove all necessary parts of the camcorder in order to gain access to remove and replace a bad logic board.

  1. OEIKwjiLyX5ZSpgS
    OEIKwjiLyX5ZSpgS
    FpJsXl2t5xAFeGUY
    scbKMNVqjGru2lHE
    • Using a plastic opening tool, remove the record/playback and record/power control knobs from the camcorder.

  2. gfYS15fGwVJNKMYE
    gfYS15fGwVJNKMYE
    WqnXKWjyDtgDXDRJ
    • Open the tape compartment.

    • Using a #00 Phillips head screwdriver, remove the two 4.5mm screws from the camcorder.

  3. sIswWKTO2rCVABkA
    sIswWKTO2rCVABkA
    JnJqXrXVKnoDGWRv
    ZT3jPAxVIIMFdrFF
    • Use a plastic opening tool to remove the gray trim piece from top of the camcorder.

    • Take care when removing the trim piece. The plastic parts are fragile and can break easily.

  4. TgEYBGFnRKIsHHNR
    • Rotate the camcorder so that the eye piece is facing you.

    • Remove the battery.

    • Remove the four black 4.5mm screws, sitting behind the battery.

    • Remove the 5th screw to the right of the battery dock.

    • Be careful not to lose any screws whilst trying to remove them.

  5. ZZu6VZYlTtup3yra
    ZZu6VZYlTtup3yra
    RrLt4LXVgmYSIOLr
    • Rotate the camcorder so that the tape compartment is facing you.

    • Remove the single 4.5mm black screw above the hook for the hand strap.

    • Undoing the strap on one end may help.

    • Rotate the camcorder so that the lens is facing you.

    • Remove the single 4.5mm black screw from the front panel.

  6. 3GoyoUSFy1pnfMOi
    3GoyoUSFy1pnfMOi
    gCtpdCSGsNMDZvJB
    • Rotate the camcorder so that the bottom is facing towards you.

    • Remove the single remaining 4.5mm black screw from the bottom.

    • Remove the four silver 4.5mm screws from the body.

  7. vGCAyBhaqdjs6JJT
    • Open the LCD screen on the side of the camcorder.

    • Using a #00 screwdriver, remove the two 4.5mm silver screws located on either side of the hinge of the LCD screen.

  8. ZdaX5pFVDAGGKDDT
    ZdaX5pFVDAGGKDDT
    GtxBLqFE5eF2UaoP
    • Very carefully remove the front cover from the main body of the camcorder.

    • This should come apart with relative ease, however a plastic opening tool may help remove the panel.

    • There is a ribbon cable attached to the front panel and the camcorder body, so be careful not to pull that off when you remove this panel.

  9. aQpUVS6I2DVmVDGZ
    aQpUVS6I2DVmVDGZ
    BJMhYtqlDTTIsEVA
    • Using your fingers, carefully pull the ribbon cable away from the logic board.

  10. hGwPdeOysHgV4jmj
    hGwPdeOysHgV4jmj
    ZB4DFpQ3o4pmJgUM
    • Remove the indicated 4.5mm screws from the LCD side of the camera.

  11. ZVHFkHfenImJv6Cf
    ZVHFkHfenImJv6Cf
    aFelDTDVtwkSZMHA
    KrBdeRwMxbCPEtcc
    • Place a plastic opening tool under the bottom of the blue panel beneath the camcorder.

    • Using two tools may be useful, if difficult.

    • Move the plastic opening tool up the side of the camcorder as shown. Carefully separate the LCD panel from the rest of the camcorder.

    • Remove the panel from the camcorder.

  12. SxRFUReyIvg2LbuX
    SxRFUReyIvg2LbuX
    1afLLavJI5HbYQ12
    OpeaMwGRXEtXdK6t
    • Before removing the LCD panel from the camcorder, disconnect the ribbon cables joining the LCD panel to the logic board.

    • There may be multiple ribbon cables attached to the same point on the logic board.

  13. JwNreBQ3F2VQQB1J
    JwNreBQ3F2VQQB1J
    pulTZBGnqNk1H1Ur
    vQWNa562rrOxiWKu

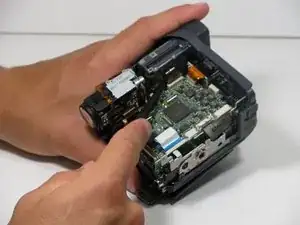

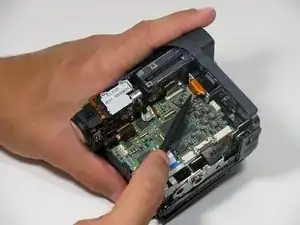

    • Using the spudger, remove the few remaining ribbon cables from the logic board.

  14. AdhhBGDlkP5CnLqH
    AdhhBGDlkP5CnLqH
    ITwBNfxisEgMkUPQ
    EsV6heNIQauulton

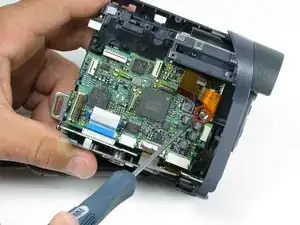

    • To remove the logic board from the body, use the #00 phillips head screwdriver and remove the 4mm silver screw from right side of the board.

    • Next, rotate the camcorder so the front is facing you and remove the 4mm silver screw from the front panel.

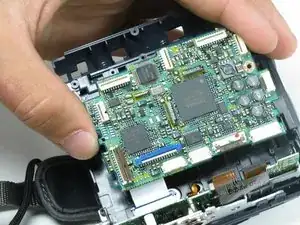

    • Carefully lift the logic board away from the camcorder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
