Panasonic PV-GS9 Microphone Replacement

Using a plastic opening tool, remove the record/playback and record/power control knobs from the camcorder.

Open the tape compartment.

Using a #00 Phillips head screwdriver, remove the two 4.5mm screws from the camcorder.

Use a plastic opening tool to remove the gray trim piece from top of the camcorder.

Rotate the camcorder so that the eye piece is facing you.

Remove the battery.

Remove the four black 4.5mm screws, sitting behind the battery.

Remove the 5th screw to the right of the battery dock.

Rotate the camcorder so that the tape compartment is facing you.

Remove the single 4.5mm black screw above the hook for the hand strap.

Undoing the strap on one end may help.

Rotate the camcorder so that the lens is facing you.

Remove the single 4.5mm black screw from the front panel.

Rotate the camcorder so that the bottom is facing towards you.

Remove the single remaining 4.5mm black screw from the bottom.

Remove the four silver 4.5mm screws from the body.

Open the LCD screen on the side of the camcorder.

Using a #00 screwdriver, remove the two 4.5mm silver screws located on either side of the hinge of the LCD screen.

This should come apart with relative ease, however a plastic opening tool may help remove the panel.

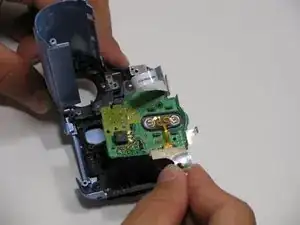

Using your fingers, carefully pull the ribbon cable away from the logic board.

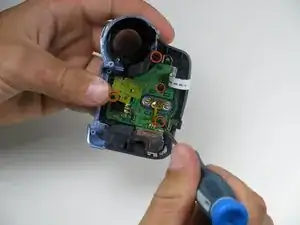

Using a #00 phillips screwdriver, remove the four 4mm screws holding the circuit board in place.

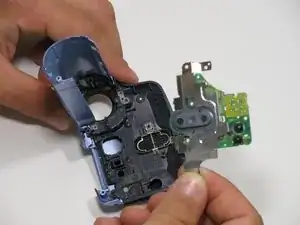

Remove the circuit board containing the ribbon cable, microphone, and infared sensor.
