Einleitung

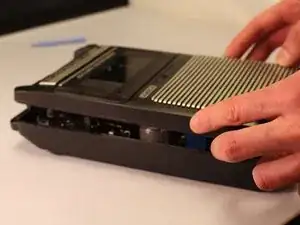

In this guide, you will learn how to replace the holding handle on a Panasonic RQ-2102. Since the handle is made of plastic, it is likely to break after heavy use. In this case, replacing it is easy. However, if the two handle catches are broken, the entire body needs to be replaced as they are molded to the body and hold the handle in place.
Werkzeuge
-
-

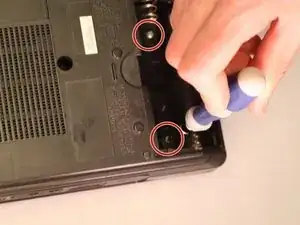

Remove the three M5-0.8 x 12 mm Phillips #0 screws from the back of the device body.
-
There are two more screws inside the battery compartment. Remove those as well.
-
-
-
Carefully remove the handle. Make sure the handle catches on each side are intact.
-
Replace the old handle with the new handle.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
