Panasonic SC-PM31 Cassette Player Replacement

Geschrieben von: Jessica Chao
  • Kommentare: 1
Panasonic SC-PM31 Cassette Player Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

This replacement guide involves removing many screws. Before you start to take apart the device you will need to obtain a #2 Phillips screwdriver. Also make sure you have the replacement Panasonic SC-PM31 cassette player in hand.

  1. dn6X3rwHxPFPQVro
    dn6X3rwHxPFPQVro
    LMiBOswyIhD1oyDx
    yXX1CEin45pG2BEc

    • Remove the five 9 mm #2 Phillips screws from the side panel nearest the power button.

    • Repeat the process for the opposite panel.

    • Remove the two 15 mm #2 Phillips screws from the back of the top panel.

    • Remove the middle 10mm #2 Phillips screw from the back of the top panel.

  2. VStS4eP2M6go2nMd
    VStS4eP2M6go2nMd
    LROiVPHLec1hZQ3X

    • If you do not have a plastic opening tool, you can open the system using your finger. However, if you choose to use your hands, make sure to wear gloves. The panel is very sharp.

    • Swing the back half of the panel slightly away from the unit. Then, starting at the top back corner, slide plastic opening tool through the created gap from back to front. The panel should pop off. Repeat the process on the opposite panel.

  3. eKiMesMldThFMtT3

    • Looking in through the side nearest the power button, use your fingers to pull the white ribbon connection toward you, away from the rear circuit board.

    • The process will require the use of moderate force and can be eased by wiggling the ribbon during removal.

  4. 4WNwr6kIDDfdbkvS
    4WNwr6kIDDfdbkvS
    b2Pjd1RrZlx6ktiX

    • Remove the top panel. You will need to slightly bend the plastic tab outwards, to undo the clasp that is attached to the top.

    • When reassembling the device, reattach the white ribbon wire (Step 3) before replacing the top panel.

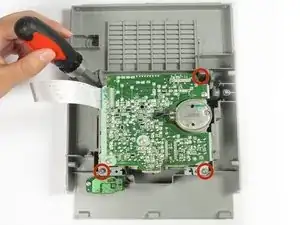

  5. V4DwnenemdTSDmWC

    • Turn the top panel upside down.

    • Remove the four Phillips #2 dome-headed screws with length 9.5mm holding the cassette assembly to the plastic exterior.

  6. XjrkHJDU4tocIwSD
    XjrkHJDU4tocIwSD
    agvNIpH1Xb4XXdFY

    • Remove the Phillips #2 screw with length 9.5mm from the small circuit board.

    • Lift the small circuit board from the plastic.

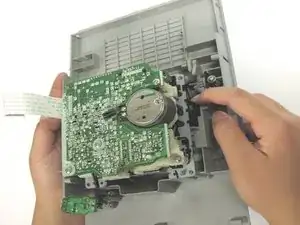

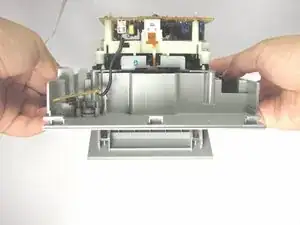

  7. C5RnLXdgrxKpTEVT
    C5RnLXdgrxKpTEVT
    uF6lcaWdRFo3CGcp

    • Lift the device up. With your right hand index finger, press the latch towards you to manually move the rear latch to open the cassette door.

    • The cassette door will open underneath.

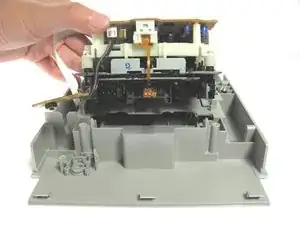

  8. NLbwQPNl23cQGOkO

    • Carefully lift the cassette player out of the plastic casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
