Panasonic SDR H-100 Zoom Lever Replacement

Geschrieben von: Caleb Osborne
  • Kommentare: 1
Panasonic SDR H-100 Zoom Lever Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

Keine Schätzung

Einleitung

If your Panasonic SDR H-100 zoom lever is sticking, working inconsistently, or not working at all, then use this guide to replace the malfunctioning part.

The zoom function on the Panasonic SDR H-100 allows the user to move their point of view closer to or further from the subject.

Before beginning, make sure to completely power off your device and disconnect it from any external power sources.

  1. jCFCYbs6ZOEUhilU
    jCFCYbs6ZOEUhilU
    ZeICHfJWCtjAFI4W

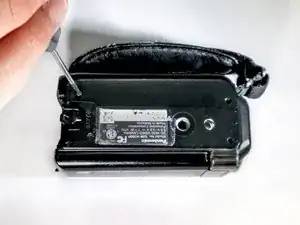

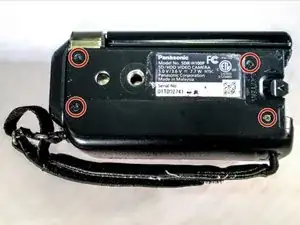

    • Remove the four 4-mm screws on the bottom of the camcorder.

    • The screws are two different colors: three blacks and one silver.

  2. uionNCG1JjKKGIGi

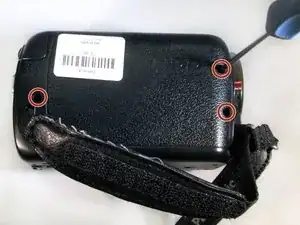

    • Remove the three 6-mm screws on the hand-strap side of the camera.

  3. wTOJBhYVT2oCmbvj

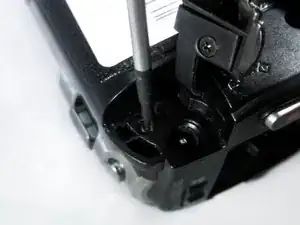

    • Pull out the charging port (DC input terminal) cover and remove the 4-mm screw located next to the input terminal.

  4. dTTFryr2PtHhRCQp
    dTTFryr2PtHhRCQp
    xxYvrLTKHjpIlK6t

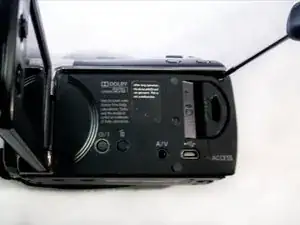

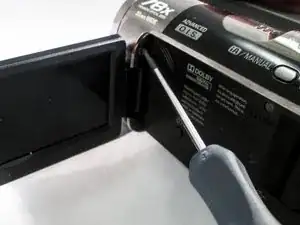

    • Flip out the LCD screen to expose the inner screws. Remove the two black 4-mm screws.

    • One screw is located by the hinge of the LCD screen. The second is close to the upper-right corner of the camcorder body.

    • Using a firm hold on both sides of the camcorder, gently pull apart the casing under the hand strap.

    • Pressure should be evenly distributed across entire device.

    • Detach gently so the ribbon cable is not damaged!

    I want to buy NEW SDR 100. I'm in Nigeria. How do I get one? And how much in Naira?

    olukanni morakinyo -

  6. AmSY1JuptkBmDSOg

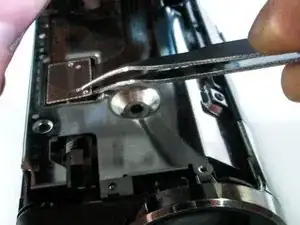

    • Use tweezers to grab the ribbon cable at the connection point and slowly lift it away from the connector.

    • This linkage point connects the HDD directly to the motherboard.

  7. PeS56qdJWqEviLVO

    • Unscrew the two black 4 mm screws from metal casing around the motherboard.

  8. JoQDiYPDKpG6VoRE
    JoQDiYPDKpG6VoRE
    OhZwNL3wPJBwall2

    • Remove the black 4 mm screw from the back of the camcorder underneath where the battery would have been.

  9. 6BrGwHGKy1RLCZpe
    6BrGwHGKy1RLCZpe
    ZCNGhM3E1MPurBGQ
    Ni2e5d4BDwGqfNXS

    • Pull the plastic cover on the back out and up slightly until the back feels like it’s free, then pull back on the plastic (The top cover piece and back will be detached).

  10. BpSdqOWFXMtPyIVb

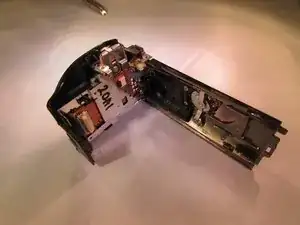

    • Grab the plastic piece that covers the back of the camcorder.

  11. DZk2NNXfmOUAYTZj
    DZk2NNXfmOUAYTZj
    WXGbakFNNDakHAG4

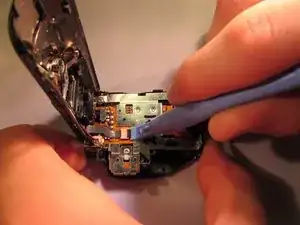

    • Unlock the copper ribbon cable using the blue pry tool.

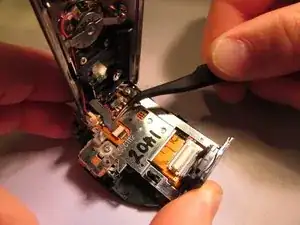

    • Gently detach the ribbon cable using the tweezers.

  12. 1TZLChwioir5XRkB
    1TZLChwioir5XRkB
    sOsQWB3fDQPkKdAi

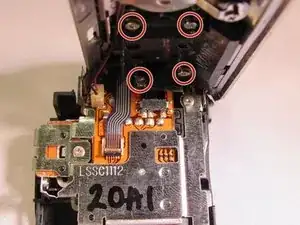

    • Unscrew the four silver 4 mm screws underneath the outer plastic cover.

    • This gives you access to the bottom of the zoom lever.

  13. pvsCfTe143WRCHst
    pvsCfTe143WRCHst
    JAdbKEmEypcBdHsu

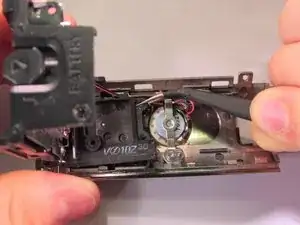

    • Using tweezers, pull on the black piece that is connected to the underside of the zoom lever while also pushing the back piece at an angle.

    • Do not disconnect the red and black wires while you are doing this.

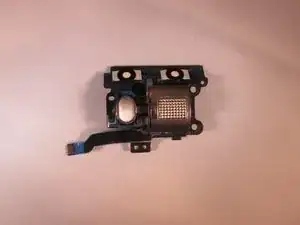

    • Replace with new zoom lever.

Abschluss

To reassemble your device, follow these instructions in reverse order.
