Panasonic SDR-H40P SD Card slot Replacement

Geschrieben von: Andrew Waldschmidt
  • Kommentare: 0
Panasonic SDR-H40P SD Card slot Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 - 25 Minuten

Einleitung

Use this guide to replace the SD card slot in your camcorder.

  1. sREPZyMITGer1ctu
    sREPZyMITGer1ctu
    SYMaaRaEffOtOiVT
    HIFSKBUfULo3BNSI

    • Remove battery first.

    • Remove right side shell. There are two screws that are right behind the strap that also need to be removed.

    • Prepare to keep track of many tiny screws.

    • Keep track of where all your screws unscrew from. Some of these screws have a slightly different size compared to others and will get stuck inside the holes when putting it back together.

  2. bOInRQdCGc2lr4WX
    bOInRQdCGc2lr4WX
    wPVd2NXOtshGEKUX
    2o2T4jKWlodnXMhr

    • Remove indicated screws to release back panel.

  3. HPUdLKobZZLLmaiM
    HPUdLKobZZLLmaiM
    HMSbmvmM2DTM42IO

    • This is a continuation of Step 2.

    • Remove the last screw.

    • To remove the panel you simply pull it back.

    • There is a ribbon cable attached the the motherboard. Be sure to pull the panel back slowly, and detach the ribbon cable.

  4. hbW2X1V6pldcBMRn
    hbW2X1V6pldcBMRn
    sTgnoATdBiy2KoSm
    bRUqmJtYeX3s6fsx

    • Remove the three screws highlighted in the pictures shown.

    • Do not use force on the hard drive.

    • To avoid damaging the device, slowly pick up the hard drive to reveal an orange ribbon cable attached to the motherboard pull back on the dark brown tab and carefully pull out the ribbon cable . Then you may proceed with removing the hard drive.

  5. cQF5DCdVUjqKIxV6
    cQF5DCdVUjqKIxV6
    NCKAyc26Im5NIGCG

    • Remove the screws circled.

    • Pull front section away from the rest of the camera to remove it.

    • Front panel has a ribbon cable that's attached to the motherboard. Detach the motherboard end when pulling off the front panel.

  6. cKEAavo5c6cyCWQG
    cKEAavo5c6cyCWQG
    Wv6sBXhKvo4IALsF
    DZtytZMSjRETYfy5

    • Remove the screws circled.

    • Carefully pull the motherboard away from the the rest of the camera.

    • Detach the ribbon cables from the motherboard.

    • Be careful with the ribbon cables they applying too much force could damage them.

  7. Z5KLasgvH53OUyAp
    Z5KLasgvH53OUyAp
    heT42r5QhKA6Hpgj

    • Remove screw circled.

    • Use a spatula to pull up the black shell and pull it away from the rest of the camera

  8. tWDU2gKDHFtWDNOk
    tWDU2gKDHFtWDNOk
    PYU2SMDMOMy4lagL

    • Remove the screw circled.

    • Feed the ribbon cable when pulling out the lens. There is a hole where the cable goes through. Do this before moving the lens.

  9. JfadRZFfcCtlIFfl
    JfadRZFfcCtlIFfl
    EN1SEPfFkQeobGOQ
    uWnbTnZBZjIltAAD

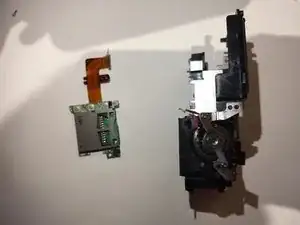

    • Remove the two screws using a Phillips #00 screwdriver.

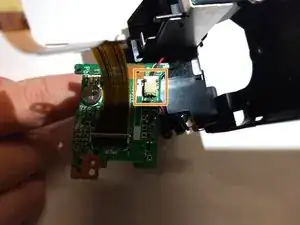

    • Use tweezers to slowly pull out the cable.

    • Pulling directly on the cord could lead to damaging the wire.

Abschluss

To reassemble your device, follow these instructions in reverse order.
