Panasonic SDR-H85 LCD Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

If your Panasonic SDR-H85 camcorder has abnormal color on the display screen or cannot display pictures at all, you may have LCD damage.

Before using this guide, make sure to review the troubleshooting page. Determine if you need to replace the LCD and if your problem can be solved through the settings.

Make sure you remove the battery and disconnect the power before you start.

  1. 6nm3ZkQKdFOb2Yu5
    6nm3ZkQKdFOb2Yu5
    laKsolZlpYhPaC1F
    UlvPFsP5cESbdk6Z

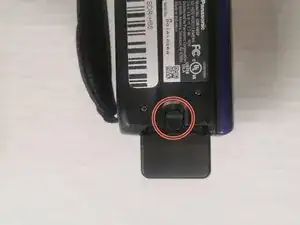

    • Gently slide the battery ejection button which is located underneath the battery and slide the battery out.

    • Once the battery is removed, you can safely dispose it and replace with a new one. Dispose battery at an authorized battery recycling center.

  2. rYeKdNDDWm5ytIXe
    rYeKdNDDWm5ytIXe
    kDwbs2njduudpYAH

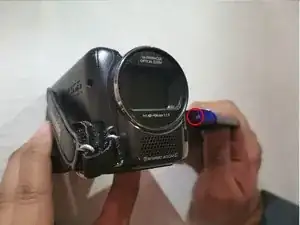

    • Use a Phillips #00 screwdriver to remove two screws from behind the corners of the display screen.

  3. ZmyepUksqdZ3eZsV
    ZmyepUksqdZ3eZsV
    kREm43pqoCCIHrEC

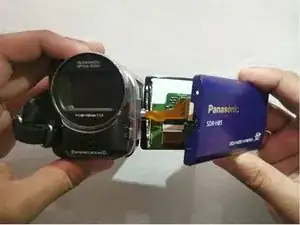

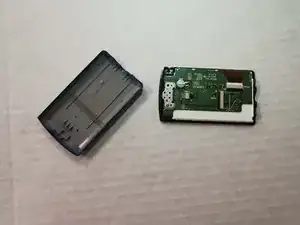

    • Open the case carefully. Make sure to disconnect the parts.

  4. SaDSFtqireBOvang

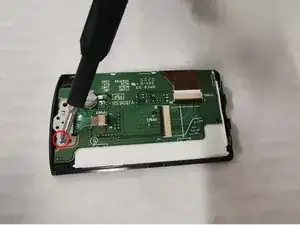

    • Use a Phillips #00 screwdriver to remove one screw on the green panel.

  5. LxQZPeLuRXxVHY2x
    LxQZPeLuRXxVHY2x
    n2gALNRZpVs36qTW
    iC3MLDbLZE1qE4Gm

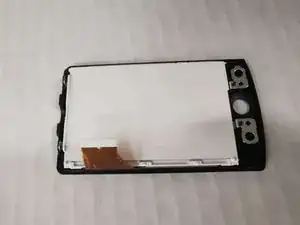

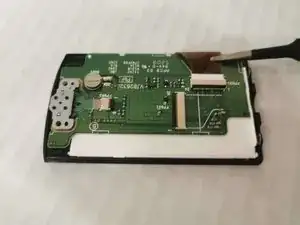

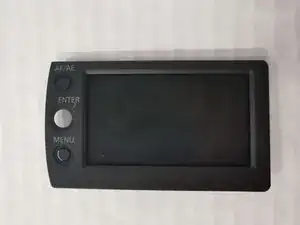

    • Disconnect the panel from the screen part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
