Panasonic Toughbook CF-29 Keyboard Replacement

Geschrieben von: Dylan Bloom
  • Kommentare: 1
Panasonic Toughbook CF-29 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to remove the keyboard from the main unit.

  1. Q1LlhVrXXRipQNLs

    • Locate the bay door for the battery on the left side of the laptop.

  2. h6mfbF2ZDfEn4bdR
    h6mfbF2ZDfEn4bdR
    HLsS2NIP2NZDIW1r

    • Slide the latch to the right and then down to unlock it.

    • Pull out the battery.

  3. NcDkpvYPqX5KeyiX

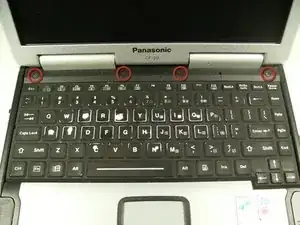

    • Remove the four screws above the keyboard using a Phillips #0 screwdriver.

  4. FrLniaMlswEQEuXG

    • Pry up the black panel covering the top of the keyboard.

  5. N625SBIn1bUn3eFV

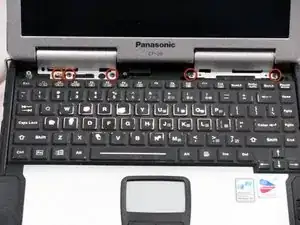

    • Remove the five silver screws shown.

  6. cNDYG6fZdAfOBijE

    • Pull up keyboard and place it face down on the trackpad

    • Be careful not to put tension in the ribbon cables attached to the underside of the keyboard

  7. 3b1ySZRk6RY46ILi

    • Remove screws shown from cover plate

  8. nACoKYdtaNfwcsOb
    nACoKYdtaNfwcsOb
    NIyVhjmtTBgyAHQx

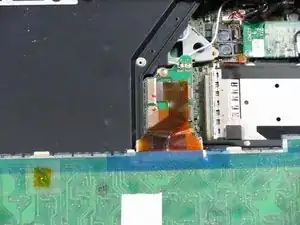

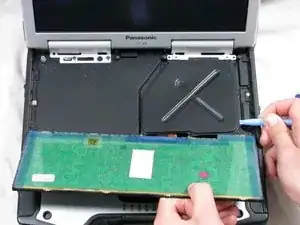

    • Pull cover plate out of place revealing the ribbon cable connections to the motherboard

  9. EePcPfNbBRjrvfoZ
    EePcPfNbBRjrvfoZ
    ywnKXKqv5VJayLcM

    • Remove the ribbon cable farthest from you.

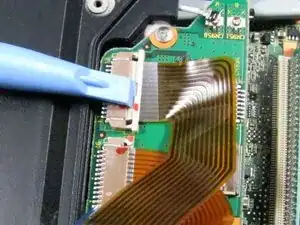

    • Push the white tab (as shown in the second photo) to release the ribbon cable.

  10. 1xNcIMMjWg6XohWE

    • Remove both ribbon cable by pulling 2 white tabs on either side of the cable to the right

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Dylan Bloom

Mitglied seit: 12/04/10

355 Reputation

Ein Kommentar

When replacing the KB, don'f forget the double sided fiberglass tape. The regular CF-29 KB is a backbone of thin aluminum sheeting, Most likely when you "pop" off the KB, its likely to bend. When you install a bent KB, it bounces when you type. Bend it back and tape it down with new tape. With the CF-30, removing that KB is totally different. Its locked down by brackets, not taped. You need to slide it forward unlocking it before popping it off, otherwise your KB keys start breaking. Be soft and confident, because you bet one chance to do it correctly. Sponsored by Black Hawk Toughbooks.
