Panasonic Toughbook CF-29 Motherboard Replacement

Geschrieben von: Dylan Bloom
  • Kommentare: 7
Panasonic Toughbook CF-29 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

23

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will tell you how to gain access to and remove the motherboard.

  1. Q1LlhVrXXRipQNLs

    • Locate the bay door for the battery on the left side of the laptop.

  2. h6mfbF2ZDfEn4bdR
    h6mfbF2ZDfEn4bdR
    HLsS2NIP2NZDIW1r

    • Slide the latch to the right and then down to unlock it.

    • Pull out the battery.

  3. X16sPhIIAk1PcWWr

    • Locate the door for the hard drive on the right side of the laptop

  4. WQNQDSKTjrBrqQvB
    WQNQDSKTjrBrqQvB
    tKdIBD2ZNrQFIyFO

    • Push and slide the latch up to open the hard drive door.

    • Pull out the hard drive.

  5. FSQbvcfPXo12LNEW

    • Flip the device upside down with the handle facing away from you.

    • Open the optical drive bay by sliding its latch to the right.

    • Locate optical drive release mechanism on the bottom of the laptop.

  6. igiZjJEo3xfOBr5H

    • Slide the latch cover to the right.

  7. ZA6hifMQSLb1YJVx
    ZA6hifMQSLb1YJVx
    ZyKxqZGFUDbb6uOx

    • Push the exposed switch to the left to eject the optical drive.

  8. LQAoluGSYIBSVyYH

    • Begin by turning the laptop upside down with the handle towards you.

    • Use a Phillips size 0 screwdriver to remove the 4 screws holding down the ram cover.

  9. YNShuNVRHD2kgTMB

    • Remove the panel and set it aside.

    • Use a Phillips size 0 screwdriver to remove these 8 small screws.

  10. olTmDAePCCWkaBTC

    • Use a Phillips size 1 screwdriver to remove the remaining 8 screws.

  11. PoSREVQ5ThVquIdH
    PoSREVQ5ThVquIdH
    Lbuy1HBVxRyhL2LB

    • Use a plastic opening tool to release, but NOT remove, the back cover because it is sealed with adhesive.

  12. UYMZNkmSyQr5IqNA

    • Be careful when lifting the cover as you may damage some connections.

    • Slowly lift the cover so that you can disconnect the red and white wires connecting the speaker to the sound card.

  13. ULLZQiETLcSKPdi3

    • Now the back cover should be off and you can access the inside of the casing.

  14. 6JiTuFGREQZDPGFo

    • Remove the black and white wires attached to the wireless card by simply pulling up.

  15. IthR4lrKleBhvjvf

    • Peel back the black cover to expose the clips holding in the wireless card.

  16. 1pitC3EESdIwXaeb

    • Using a pair of plastic opening tools, push the two metal tabs away from the card.

  17. KJjDDehQpeQGUFRW
    KJjDDehQpeQGUFRW
    QvhLqVGnR64WFJpb

    • The wireless card should now easily disengage from the motherboard.

    • Pull the card horizontally away from you to remove it from its housing.

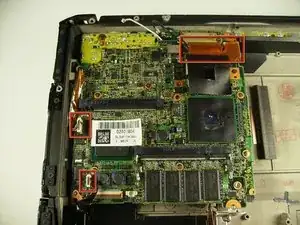

  18. EgcwpL6XoQAjtCYd
    EgcwpL6XoQAjtCYd

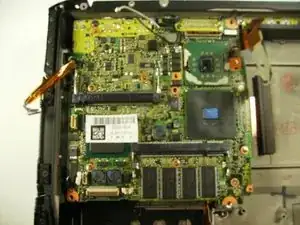

    ZfVmO5jMk1RZkmjQ

    • Unplug 3 cables

    • Lift up on brown tab to release cable

    • Pull cable up and out

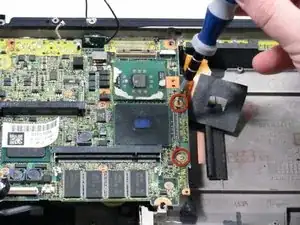

  19. mBpYQsRDyFAHxggP

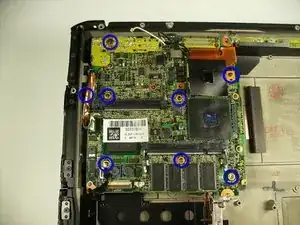

    mBpYQsRDyFAHxggP
    ydDvPIPqAXaGMHZk

    • Remove 2 long screws indicated with red circles

    • Remove the remaining screws indicated in blue

    I had two more screws to remove in addition to those shown with the blue circles. One in the lower right corner so that you can remove the 14-pin connector that has a metal guard barely wrapped around the edge of the motherboard, the other is on a rectangular copper pad (and has a black arrow by the screwhead) above one of the blue circles near the lower left corner of the large module below the expansion connector.

    Richard Ekblaw -

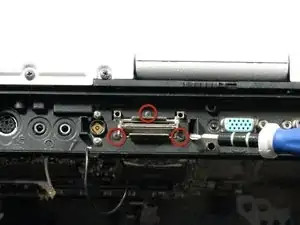

  20. XLvpP3dsyQvrVS2Y

    • On the back of the unit, unscrew the three screws surrounding the serial port.

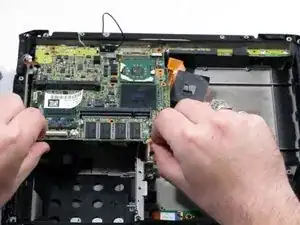

  21. 1NUTLGYArMsiA34p

    • Lift the motherboard as shown, pull towards you and then up.

    • Do not yet try to fully remove the motherboard or you may destroy the connections

    Between the power connector and the back USB port, there's a post through the motherboard just below the #1 Philips screw you removed previously. The motherboard needs to be lifted off that post to get it out.

    Richard Ekblaw -

  22. ZBTHvwDPoGoiE4nN

    • Detach the white ribbon cable, the white cluster connector, and the ribbon cable right next to the cluster

    I also had a 2-pin black connector/cable going to the daughterboard that needed to be removed.

    Richard Ekblaw -

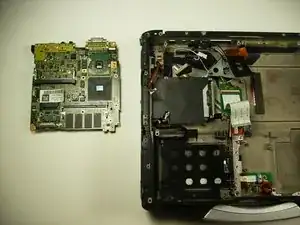

  23. YRQaWmYpC4wCRycq
    YRQaWmYpC4wCRycq

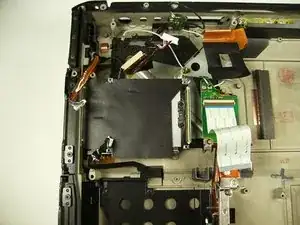

    6YonMxxOMWPZ6fU6

    • Remove the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
