Panasonic Toughbook CF-29 RAM Replacement

Geschrieben von: Devon Augustus
  • Kommentare: 2
Panasonic Toughbook CF-29 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to add or replace the RAM in your Toughbook CF-29.

  1. Q1LlhVrXXRipQNLs

    • Locate the bay door for the battery on the left side of the laptop.

  2. h6mfbF2ZDfEn4bdR
    h6mfbF2ZDfEn4bdR
    HLsS2NIP2NZDIW1r

    • Slide the latch to the right and then down to unlock it.

    • Pull out the battery.

  3. qkYF2GpZb2hGGJq1

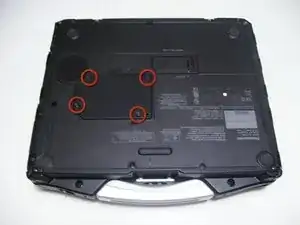

    • Use a Phillips size 0 screwdriver to remove the 4 screws holding down the ram cover.

  4. KR4WqoLhs1M2Cxsj

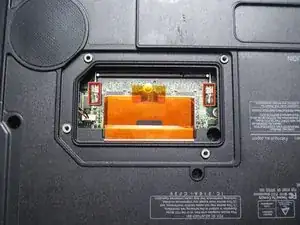

    • Pull the clips aside to release and remove the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Devon Augustus

Mitglied seit: 13/04/10

127 Reputation

2 Kommentare

Thanks for sharing this. I just bought a panasonic toughbook from http://buytough.com and I think this will come in handy. :)

Katie Sutton -

there is another ram slot you failed to mention

sparkynaz -
