Panasonic Toughbook CF-29 Touchscreen Replacement

Geschrieben von: Dylan Bloom
  • Kommentare: 3
Panasonic Toughbook CF-29 Touchscreen Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

Keine Schätzung

Einleitung

This guide will take you through the steps of removing the touchscreen.

  1. Q1LlhVrXXRipQNLs

    • Locate the bay door for the battery on the left side of the laptop.

  2. h6mfbF2ZDfEn4bdR
    h6mfbF2ZDfEn4bdR
    HLsS2NIP2NZDIW1r

    • Slide the latch to the right and then down to unlock it.

    • Pull out the battery.

  3. Ps4bL2sbRKjYKrMM

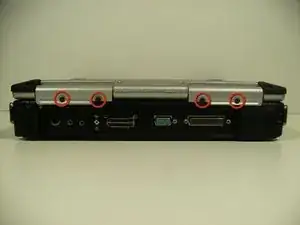

    • Remove the four hinge screws from the back of the computer.

  4. y2j6cSWy6KyATi5v
    y2j6cSWy6KyATi5v
    T5sxFMb1IxjfGER6

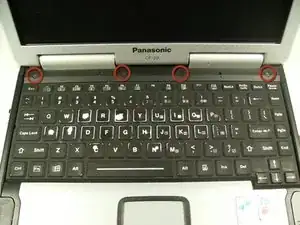

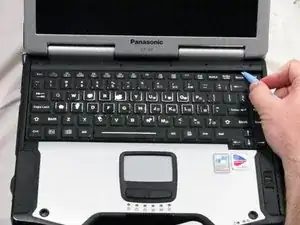

    • Open the laptop and remove the four indicated screws with a Phillips size 0 screwdriver.

    • Pry off the plastic strip which was previously held in place by the screws.

  5. 3ug1a5TDGy2SQZhX

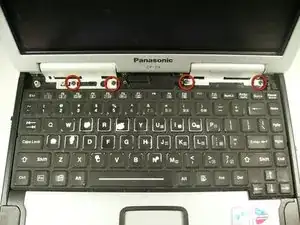

    • Remove the four hinge screws to allow the hinges to rotate up and move.

  6. wAFfx5MFTnPPxgMj

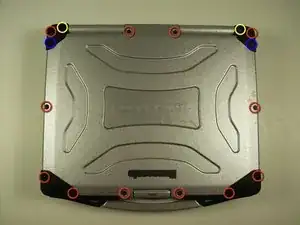

    • Remove 16 screws from the top of the closed laptop.

    • 12 Phillips size 1 screws

    • 2 Phillips size 0 screws

    • 2 Torx size 6 screws (T6)

    I found that the Torx screw on my model to be T8.

    Harley -

    Is the touchscreen & the LCD 1 piece? or are they separate?

    Chasity Miller -

  7. CicRiWkRxarKefgM

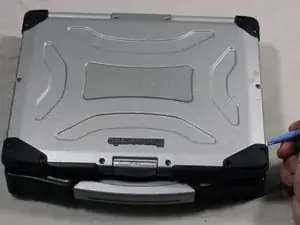

    • Gently break the adhesive seal between the front and rear display cases with a plastic opening tool.

    • You will need to reapply the silicon adhesive during reassembly to ensure watertight seal.

  8. ahAydwFpVEBWxKHx

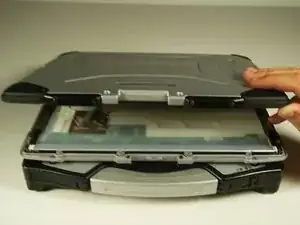

    • Pull the top halve of the casing up revealing the inside of the screen

  9. yJArE6kBxqyBSDGC
    yJArE6kBxqyBSDGC
    NqLJb1EOBbGTC5tn

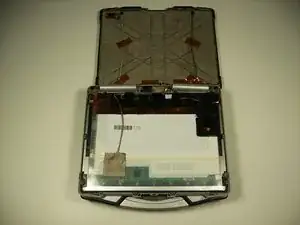

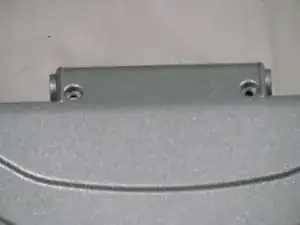

    • The top half of the case can be removed by sliding the tabs out from under the hinges.

    • This makes unplugging the screen wiring much easier

  10. TsYGhP1WlBtMRwBo

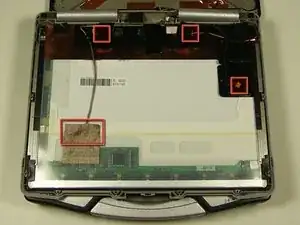

    • There are 4 wires that need to be unplugged to remove the screen.

  11. hjmWGtbPZ2s1vxZC

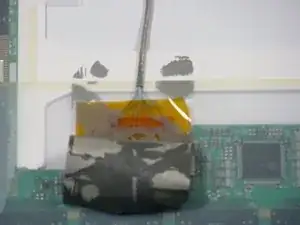

    • For the first wire, peel back the silver cover tape to reveal the connection.

  12. PhlFX5HWkQ1XPwGd

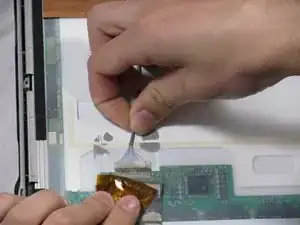

    • Pull the wiring away from the connection to release it.

  13. MRADVG1GTxNruEar

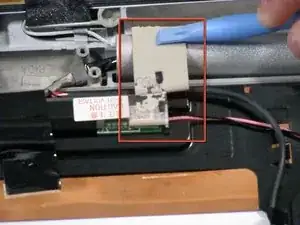

    • Remove the 3 strips of black tape as shown to reveal connections 2 and 3.

    • Pull the wiring for each away from the connections to remove.

  14. iIPrJdYCgv1LkwxX

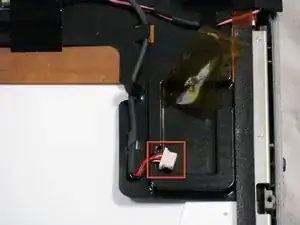

    • The 4th connection is already visible.

    • Depending on your model it might not be plugged into anything. If it is, remove it the same way the other 3 connections were removed.

  15. cbZrgeEVSeVNdbtu
    cbZrgeEVSeVNdbtu
    dsWrsOLo3LXrabVV

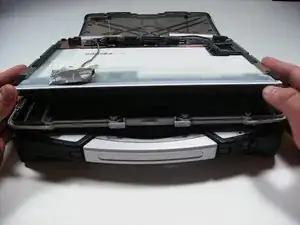

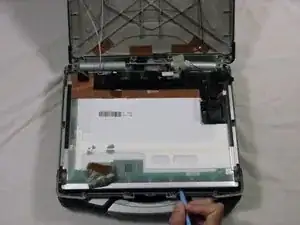

    • Using a plastic opening tool, lift the screen as shown from the case and pull free.

Abschluss

To reassemble your device, follow these instructions in reverse order.
