Panasonic Toughbook CF-53 Battery Replacement

Geschrieben von: Gage Russello
  • Kommentare: 1
Panasonic Toughbook CF-53 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

20 Sekunden - 1 Minute

Einleitung

One common point of failure in laptops is the battery. This component can suffer a range of issues from completely dying, holding a significantly lower change than it did originally, or even not outputting the correct voltage. The Panasonic Toughbook CF-53 utilizes a quick release battery to allow users to swap batteries when needed.

  1. bGQbfki6JAYnblQO
    bGQbfki6JAYnblQO
    OLOIrXxYvIc3QIT5
    VWYUxtsYnL6fGh2u

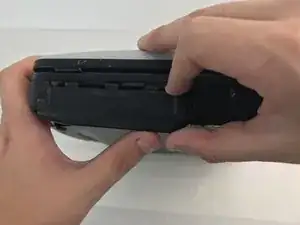

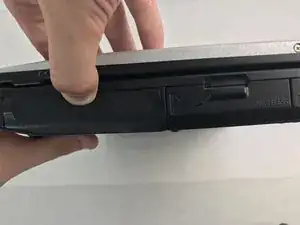

    • Orient the laptop on its side so that the plastic battery cover is facing upward.

    • Push down on the battery cover and remove it by sliding the cover down. This may take some force, but the cover should pop up with a soft click.

  2. 4oqBVqKMYG2iY5LY
    4oqBVqKMYG2iY5LY
    hQvnliTZ1W1GvJMt

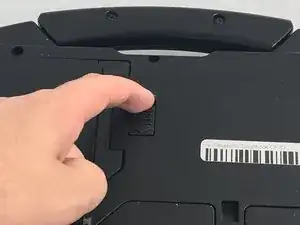

    • Use the battery release slider to release the battery latch.

  3. BGvgHPCVIHY32ZgM
    BGvgHPCVIHY32ZgM
    NiUWTXXhCcPyAQPJ
    iKA1bkGwR6iPoWtb

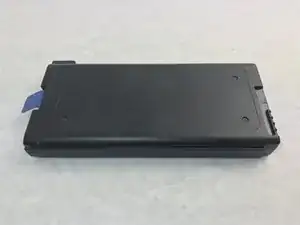

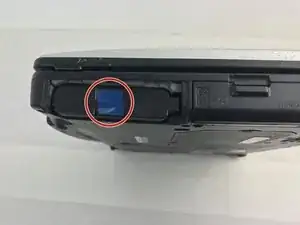

    • Use the blue tab to pull the battery out of the battery compartment. Make sure to keep the battery latch tab depressed while doing so.

Abschluss

To reassemble your device, follow these instructions in reverse order.
