Panasonic VDR-D220 DVD Camera Front lens Element Replacement

Geschrieben von: Brandon Gregoire
  • Kommentare: 0
Panasonic VDR-D220 DVD Camera Front lens Element Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

Dropped your camera, or forgot to put the lens cover back on then your lens is damaged. Any scratches or chips in a lens will alter your most valuable moments and leave you with an imperfect image. This guide will show you how to restore the quality of camera you deserve.

  1. EMVUoEagxRWFV2f5
    EMVUoEagxRWFV2f5
    kXa5PiwDIFEbckm6
    J3I4IuXpcSfZHJEH

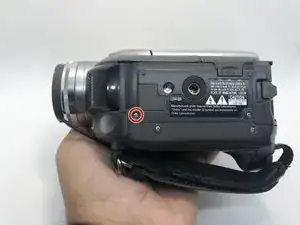

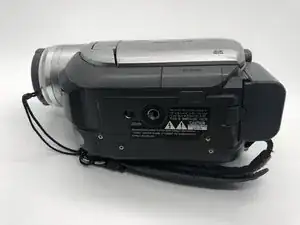

    • Remove one 5mm screw on the bottom side of the camera with a Phillips #0 screwdriver.

  2. ajvwILp11kRtbryK
    ajvwILp11kRtbryK
    LoUSRMbHZsM6pcXt
    dWkRwXlRSAGVsrPc

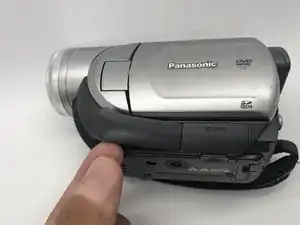

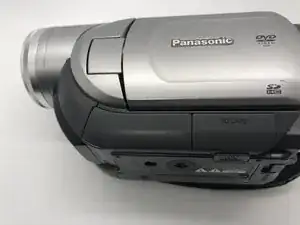

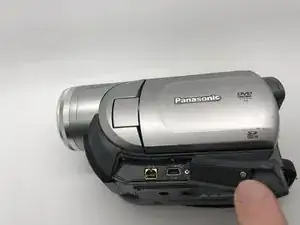

    • Open the side port door.

  3. W4pcBicLGQIM1VTc
    W4pcBicLGQIM1VTc
    U5LyrFTqXyM35b5D

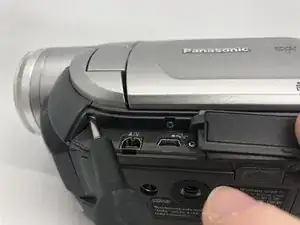

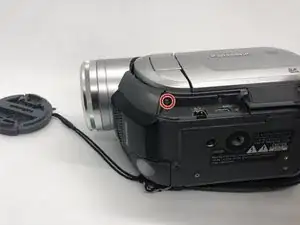

    • Remove one 5mm screw inside the side port with your Phillips #0 screwdriver.

  4. GMEdYO2OTCKS33lC
    GMEdYO2OTCKS33lC
    KnkdAb6mcZIROWUV

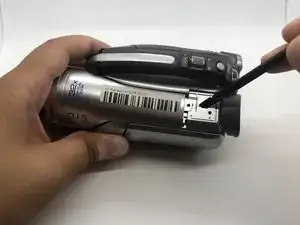

    • Using a plastic spudger, pry to disconnect the top-front part of the camera.

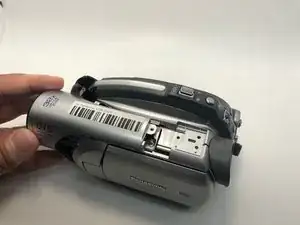

    • Slide the top portion of the camera forward revealing a ribbon cable.

  5. G5iGGN2ryVNSTwmi
    G5iGGN2ryVNSTwmi
    xryejuTlKoqwvOSN
    a242hATPUUV4noEv

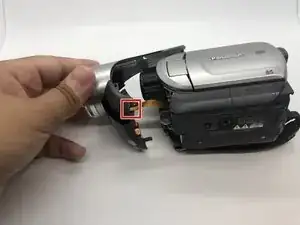

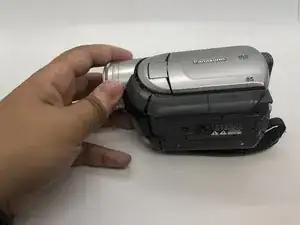

    • Flip the camera on the right side.

    • Gently pull the front part from the main body to reveal the cables connecting them.

    • Do not pull too hard because of the ZIF connector cable.

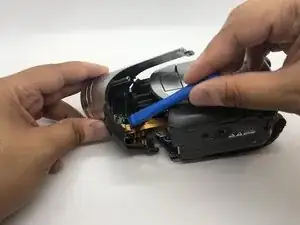

    • Use your plastic opening tool to disconnect the connection point safely.

    • Press the tab with a plastic opening tool and then pull the ZIF connector to detach.

  6. ROag2w2QA2Kr5LYf
    ROag2w2QA2Kr5LYf
    eMn2WotavnTPBCLD
    LcMJqKBua1O4U6yR

    • Look at the camera from the front side.

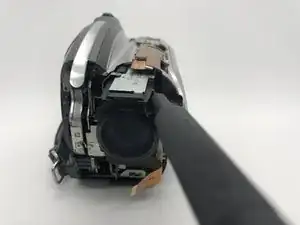

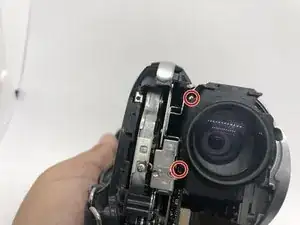

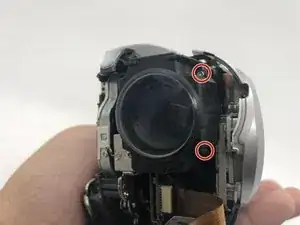

    • Remove four 5mm screws using a Phillips #0 screwdriver.

    • There are two 5mm screws on each side of the lens, for a total of four screws.

  7. HturSDwnxUXPEVqq
    HturSDwnxUXPEVqq
    XRreDKA42LQLLeUQ
    HuX2FvZvhY5VhxuR

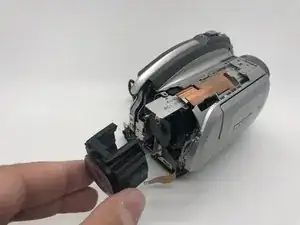

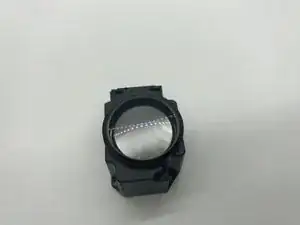

    • Pull the front element lens gently away from the camera.

    • In some cases the lens need not be replaced completely. Sometimes cleaning the lens with a microfiber cloth and isopropyl alcohol will alleviate blurry video issues.

Abschluss

To reassemble your device, follow these instructions in reverse order.
