Pandigital Novel PRD07T10WWH7 Wireless Card Replacement

Geschrieben von: Samuel Carey
  • Kommentare: 0
Pandigital Novel PRD07T10WWH7 Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

You should consider replacing the wireless card if you have no internet connectivity. Also, you should try replacing it if you do not see any networks available to connect to.

  1. LPIpCaRjERaNZNpG

    • Remove the back panel by sliding it downwards and pushing in slightly.

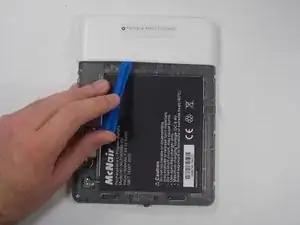

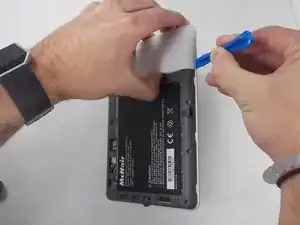

  2. YbL3FXZBvaP1XZfn
    YbL3FXZBvaP1XZfn
    oVnIDyCy5TGjCkVL

    • Pry off the second white panel, removing two clips underneath.

    • Start from the middle, and then work on the sides. The sides may be difficult to remove, so try to focus on one side and work your way around.

  3. f2rq6J2FKl14CPQM

    • Using a Phillips #0 bit, remove the 12 4mm screws.

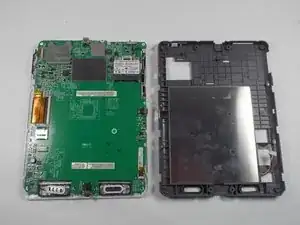

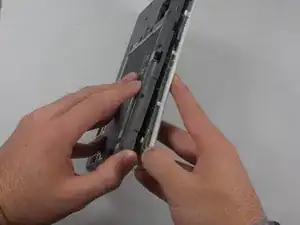

  4. WoZgcHLdhivcxm2K
    WoZgcHLdhivcxm2K
    wmOl4TWcCf2mhkLq
    h1QJ2fMVRNjwkttk

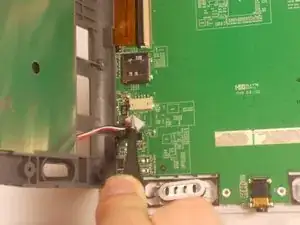

    • Pry off the gray piece by removing the clips around it.

    • Then, unplug the battery and separate the gray piece from the motherboard

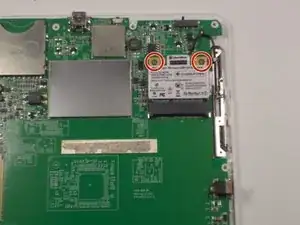

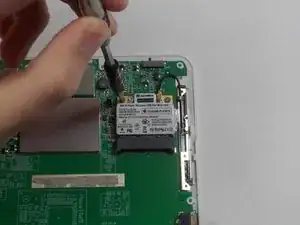

  5. 6M6EEXTMMcBkOKu5
    6M6EEXTMMcBkOKu5
    kLGxXNnCmZt3BdhZ

    • Using a Phillips #0 bit, remove the two 3mm screws at the top of the wireless card.

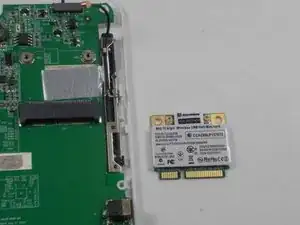

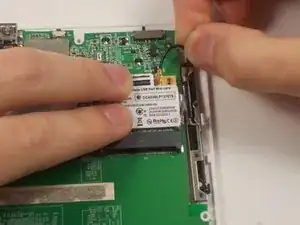

  6. ylYkZOMEIA32C2nY
    ylYkZOMEIA32C2nY
    IooqmSHW3EZWtG4H

    • Unplug the wire from the wireless card.

    • Flip up the retaining flap, releasing the card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
